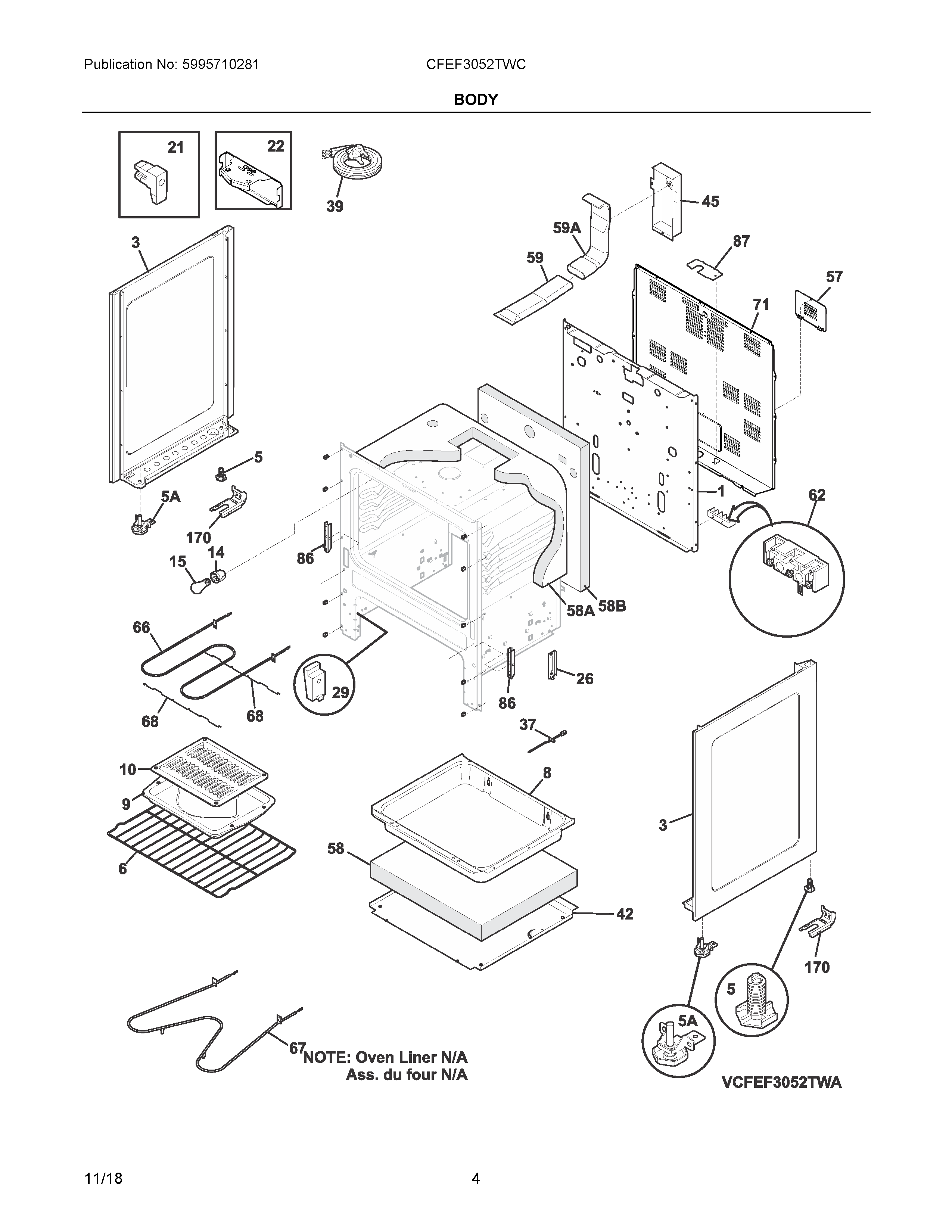

CFEF3052TWC 03 – BODY

CFEF3052TWC 03 – BODY

Written by

in

CFEF3052TWC 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIB316116000 Frigidaire Screw
NI316021132 Frigidaire Screw
NI316418901 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NI316279600 Frigidaire Screw
NIA316001017 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI316210800 Frigidaire Button Plug
NI5304491650 Frigidaire Block
NI5304516202 Frigidaire Wiring Harness
NIASPACER, SHIELD, REAR WALL
NI316089500 Frigidaire Oven Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI241853202 Frigidaire Refrigerator Screw
NI5308014215 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
1BACK, MAIN
3316400142 Frigidaire Panel
3A316400143 Frigidaire Panel
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316067902 Frigidaire Oven Rack
8PANEL, SUMP, OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26316206300 Frigidaire Oven Support
37316233903 Frigidaire Range Oven Temperature Sensor
39WCI 318113111
42SHIELD, WOOL, LOWER
45316234100 Frigidaire Oven Shield
57316283600 Frigidaire Oven Cover
58316403803 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58B316054202 Frigidaire Insulation
59A316208304 Frigidaire Oven Tube
59316208201 Frigidaire Oven Tube
625304409888 Frigidaire Oven Terminal Block with Hardware
66316203200 Frigidaire Oven Broil Element 2400W
67316225001 Frigidaire Stove Range Oven Bake Element
68316203400 Frigidaire Oven Support
71316283204 Frigidaire Oven Shield
86316441300 Frigidaire Receptacle
87316081202 Frigidaire Bracket
