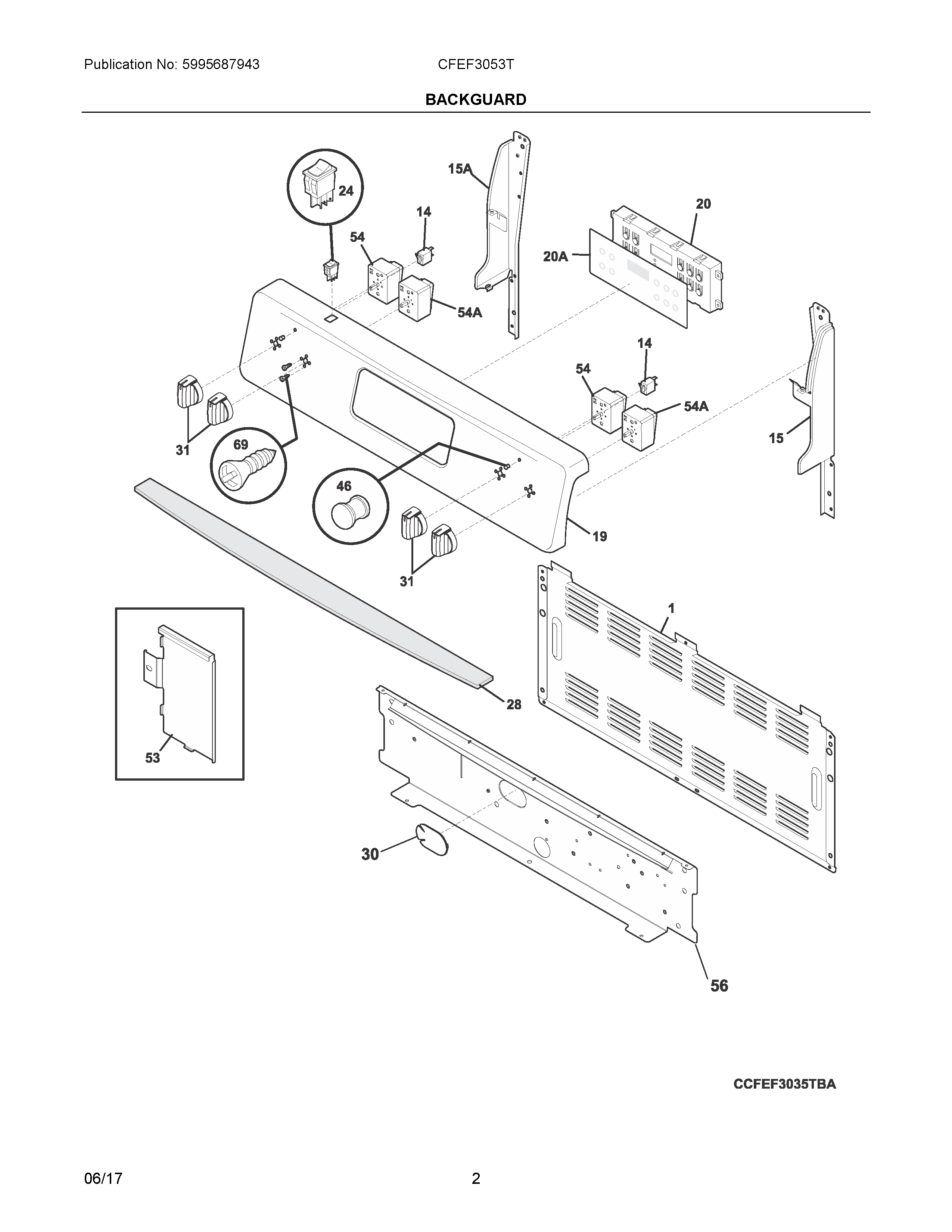

CFEF3053TBA 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	USE & CARE GUIDE
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	SERVICE TECH SHEET, W/WIRING DIAGRM
NI	INSTRUCTIONS, INSTALLATION
1	316281802 Frigidaire Oven Shield
14	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15	5304493644 Frigidaire Oven Cap
15A	5304493646 Frigidaire Oven Cap
19	WCI 5304509214
20	5304532117 Frigidaire ES300 SC Electric Controller Assembly
20A	OVERLAY
24	5304527841 Frigidaire Oven Rocker Switch (Black)
28	316528700 Frigidaire Insulation Assembly
30	316577600 Frigidaire Plug
31	5304508956 Frigidaire Oven Knob
46	316557300 Frigidaire Range Indicator Light Lens
53	SHIELD, FLUE, INNER
54A	316436001 Frigidaire Oven Range Infinite Burner Switch
54	316436000 Frigidaire Oven Range Surface Element Switch
56	316234045 Frigidaire Oven Shield
69	5303288565 Frigidaire Screw
