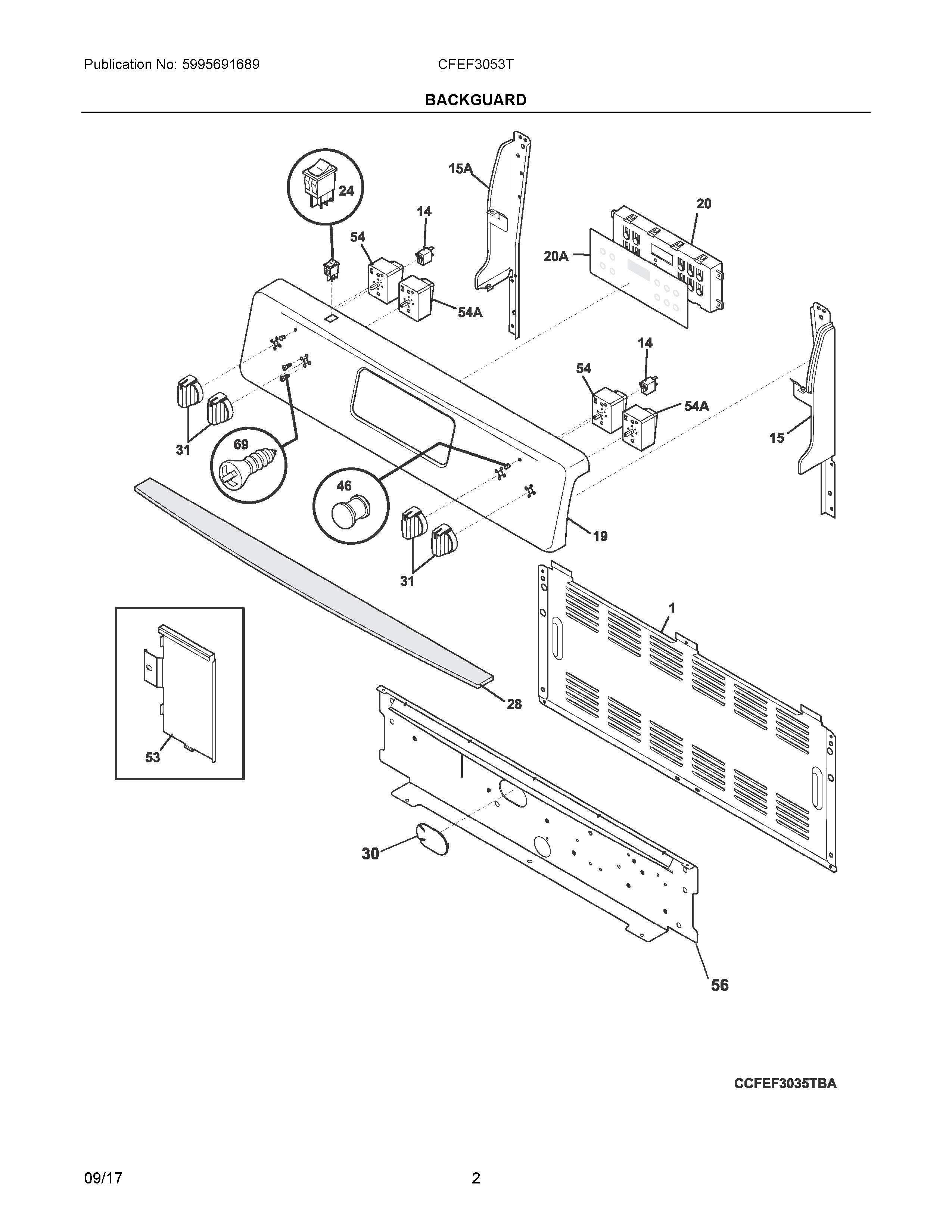

CFEF3053TBB 02 – BACKGUARD

CFEF3053TBB 02 – BACKGUARD

Written by

in

CFEF3053TBB 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIUSE & CARE GUIDE
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NISERVICE TECH SHEET, W/WIRING DIAGRM
NIINSTRUCTIONS, INSTALLATION
1316281802 Frigidaire Oven Shield
14316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
155304493644 Frigidaire Oven Cap
15A5304493646 Frigidaire Oven Cap
19WCI 5304509214
205304532117 Frigidaire ES300 SC Electric Controller Assembly
20AOVERLAY
245304527841 Frigidaire Oven Rocker Switch (Black)
28316528700 Frigidaire Insulation Assembly
30316577600 Frigidaire Plug
315304508956 Frigidaire Oven Knob
46316557300 Frigidaire Range Indicator Light Lens
53SHIELD, FLUE, INNER
54A316436001 Frigidaire Oven Range Infinite Burner Switch
54316436000 Frigidaire Oven Range Surface Element Switch
56316234045 Frigidaire Oven Shield
695303288565 Frigidaire Screw
