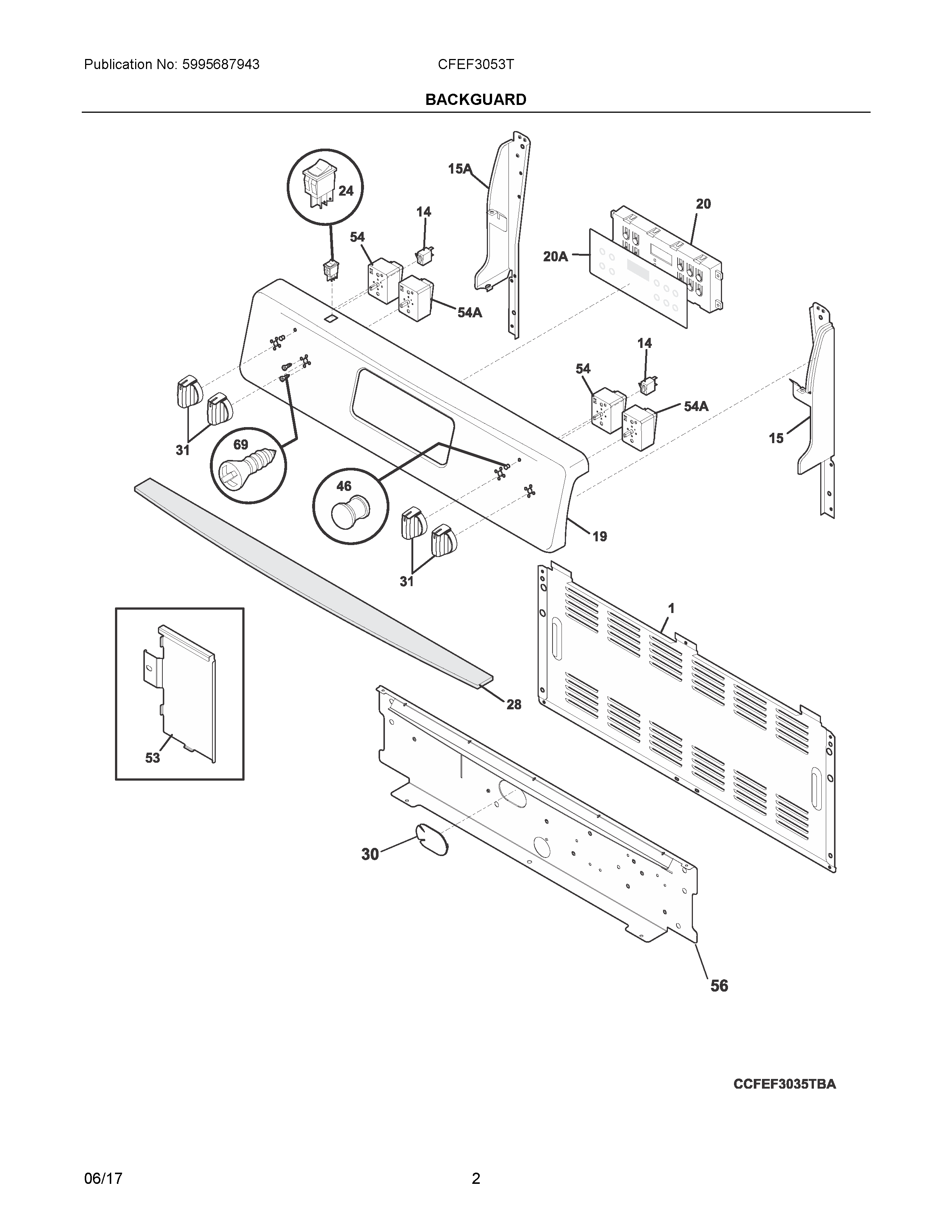

CFEF3053TWA 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	SERVICE TECH SHEET, W/WIRING DIAGRM
NI	INSTRUCTIONS, INSTALLATION
NI	USE & CARE GUIDE
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	316281802 Frigidaire Oven Shield
14	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A	808754506 Frigidaire Oven Support
15	808754505 Frigidaire Oven Support
19	PANEL, BACKGUARD, WHITE
20	5304532117 Frigidaire ES300 SC Electric Controller Assembly
20A	316419144 Frigidaire Range Overlay, White
24	5304527842 Frigidaire Rocker Switch
28	316528700 Frigidaire Insulation Assembly
30	316577600 Frigidaire Plug
31	5304508957 Frigidaire Oven Knob
46	316557300 Frigidaire Range Indicator Light Lens
53	SHIELD, FLUE, INNER
54	316436000 Frigidaire Oven Range Surface Element Switch
54A	316436001 Frigidaire Oven Range Infinite Burner Switch
56	316234029 Frigidaire Oven Shield
69	5303288565 Frigidaire Screw
