CFEF3054TDC 04 – TOP/DRAWER

CFEF3054TDC 04 – TOP/DRAWER

Written by

in

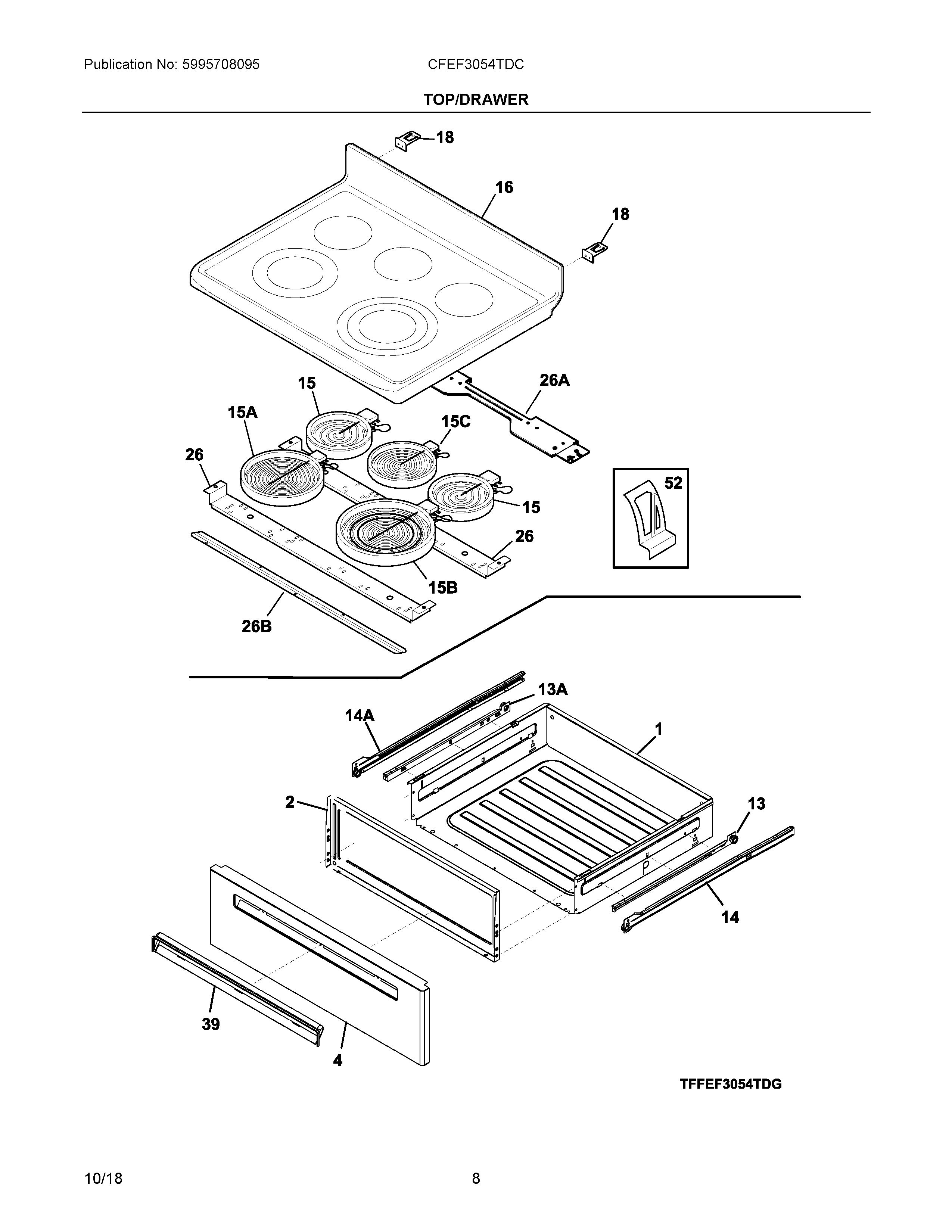

CFEF3054TDC 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304516193 Frigidaire Oven Harness
NI316418901 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIA5308014215 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304510526 Frigidaire Oven Panel
115304517906 Frigidaire Oven Bracket
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A5304517903 Frigidaire Oven Glide Drawer
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15B316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
15A5304533520 Frigidaire Element
15318178110 Frigidaire Oven Range 6" Surface Element
15C5304521951 Frigidaire Element
165304513244 Frigidaire Oven Smoothtop Range
18316580800 Frigidaire Hinge Bracket
26B316607600 Frigidaire Bracket
265304512926 Frigidaire Channel
26A316498200 Frigidaire Oven Bracket
395304511287 Frigidaire Handle
52316461700 Frigidaire Oven Clip Assembly
