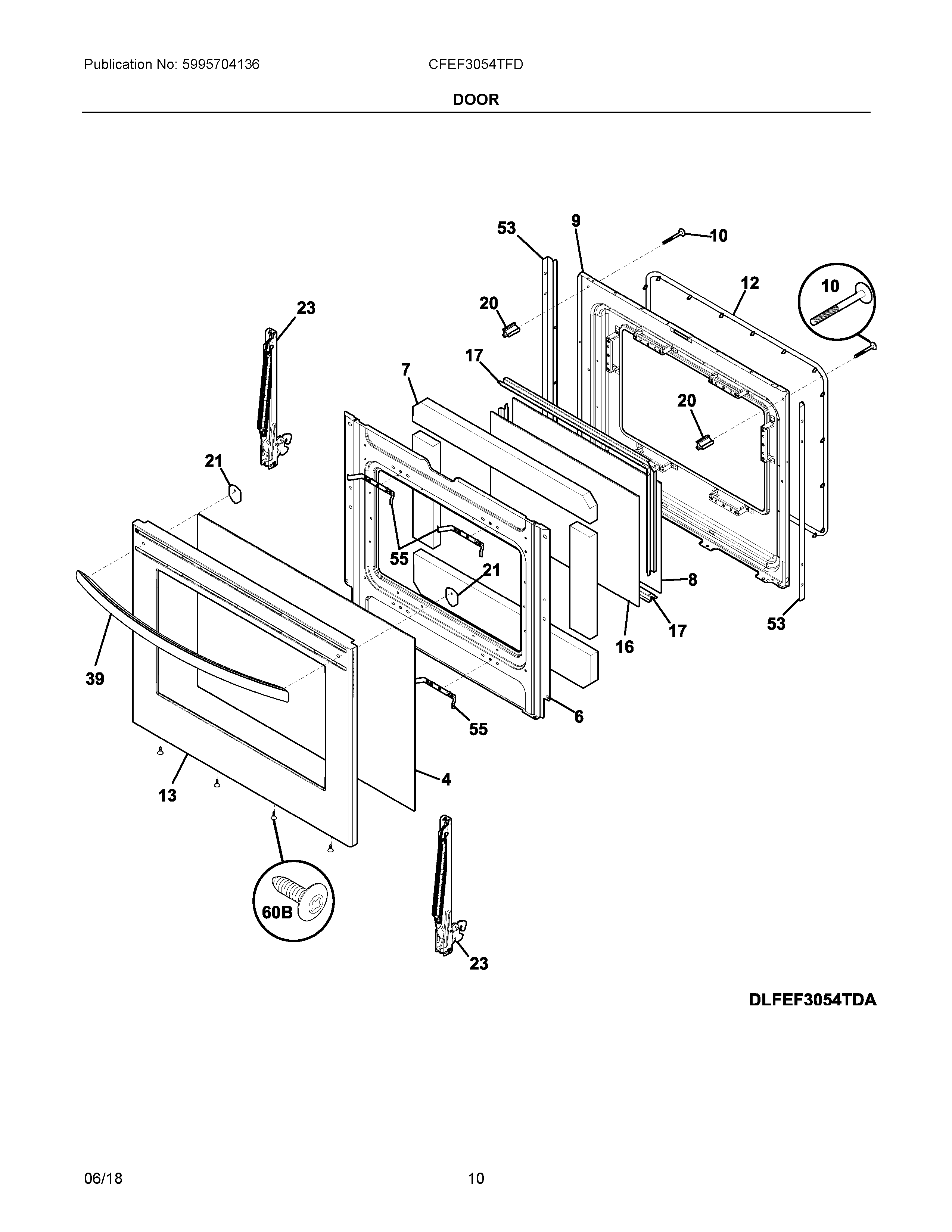

CFEF3054TFD 05 – DOOR

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NIA	316418900 Frigidaire Oven Screw
NI	316483102 Frigidaire Oven Label
NI	316021105 Frigidaire Oven Screw
4	316452758 Frigidaire Oven Outer Door Glass
6	316406328 Frigidaire Shield
7	316405600 Frigidaire Insulation
9	WCI 316423707
10	Screw,handle mtg. ,10-24 x 1.75“ ,(2)
12	316405000 Frigidaire Oven Seal
13	5304535664 Frigidaire Range Panel
16	5304503232 Frigidaire Oven Inner Door Glass
17	5304504811 Frigidaire Glass Spacer
20	316284100 Frigidaire Oven Spacer Assembly
21	316533801 Frigidaire Oven Plate
23	316575909 Frigidaire Range Door Hinge
39	HANDLE-DOOR SS 30IN
53	5304532042 Frigidaire Shield-Filler Door
55	316408300 Frigidaire Oven Bracket
60B	316021109 Frigidaire Oven Screw
