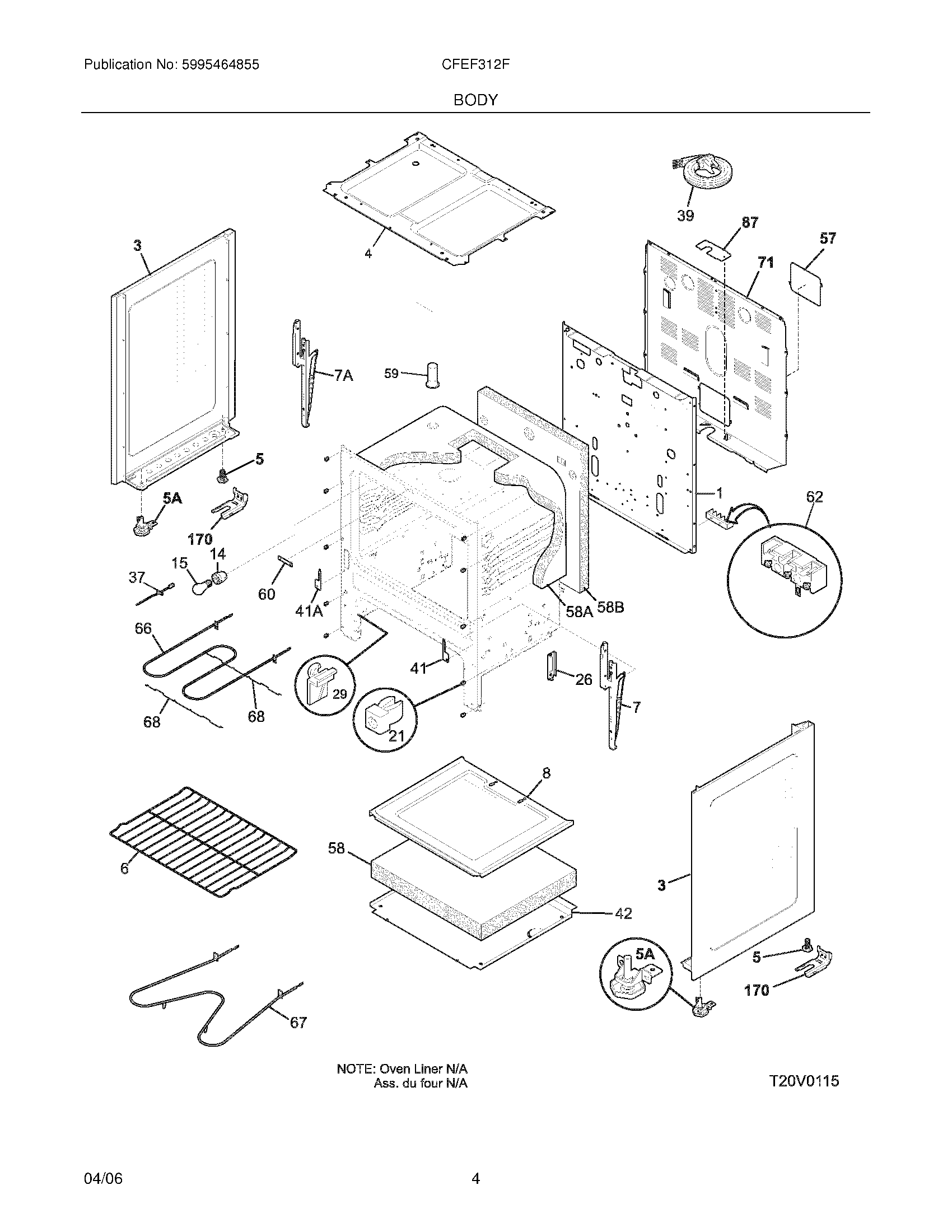

CFEF312FBA 05 – BODY

CFEF312FBA 05 – BODY

Written by

in

CFEF312FBA 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316210800 Frigidaire Button Plug
NI3203550 Frigidaire Oven Plug
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NISPACER, SHIELD, REAR WALL
NI316205500 Frigidaire Oven Nut
NIWCI 316460501
NIWCI 316246400
NIWCI 316427400
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1WCI 316201300
3316400144 Frigidaire Panel
3316400145 Frigidaire Panel Assembly
45304522901 Frigidaire M Burner Box
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316067902 Frigidaire Oven Rack
7AWCI 316216509
7WCI 316216508
8PANEL-OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
26316206300 Frigidaire Oven Support
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
37316233903 Frigidaire Range Oven Temperature Sensor
39WCI 318113108
41WCI 316233400
41AWCI 316233500
42WCI 316206200
57316457801 Frigidaire Oven Cover
58316403803 Frigidaire Insulation
58B316054202 Frigidaire Insulation
58A316047707 Frigidaire Insulation
59316073605 Frigidaire Oven Tube
60WCI 316239100
625304409888 Frigidaire Oven Terminal Block with Hardware
66316203200 Frigidaire Oven Broil Element 2400W
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316422304
87316081202 Frigidaire Bracket
170316112500 Frigidaire Oven Template
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
