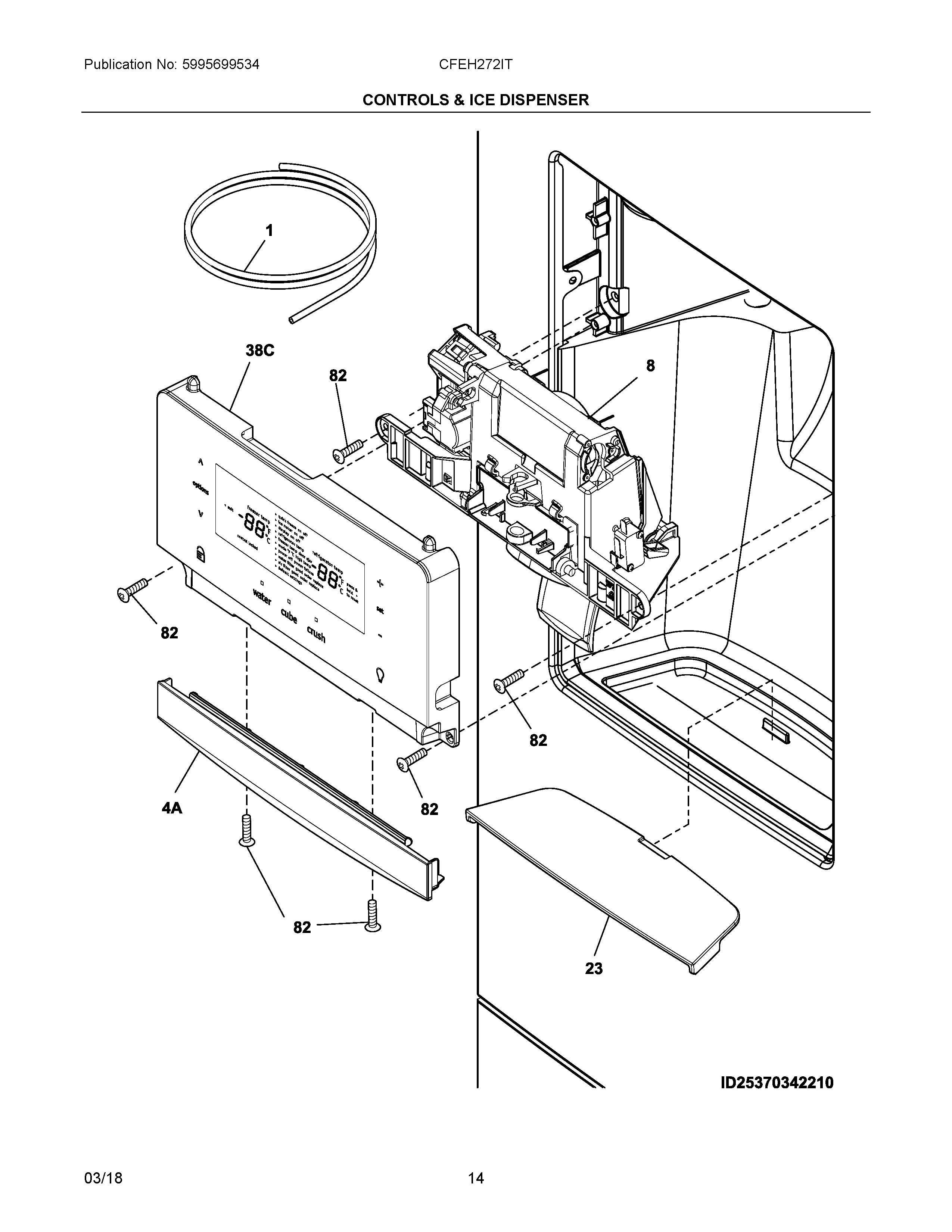

CFEH272ITS0 07 – CONTROLS & ICE DISPENSER

CFEH272ITS0 07 – CONTROLS & ICE DISPENSER

Written by

in

CFEH272ITS0 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NIC241965906 Frigidaire Refrigerator Water Tube
NID5303918602 Frigidaire Refrigerator Water Tube Kit
NIB241964707 Frigidaire Refrigerator Water Tube
NIA241920106 Frigidaire Fill Tube Kit
NI5304521784 Frigidaire Refrigerator Harness
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI240451503 Frigidaire Refrigerator Screw
NI241806601 Frigidaire Refrigerator Water Connector
NI241510904 Frigidaire Refrigerator Dispenser Harness
1218976436 Frigidaire Refrigerator Water Inlet Tube
8242270106 Frigidaire Refrigerator Module
23242176503 Frigidaire Refrigerator Sump
38C5304513666 Frigidaire Refrigerator Control Assembly
82241953902 Frigidaire Refrigerator Screw
