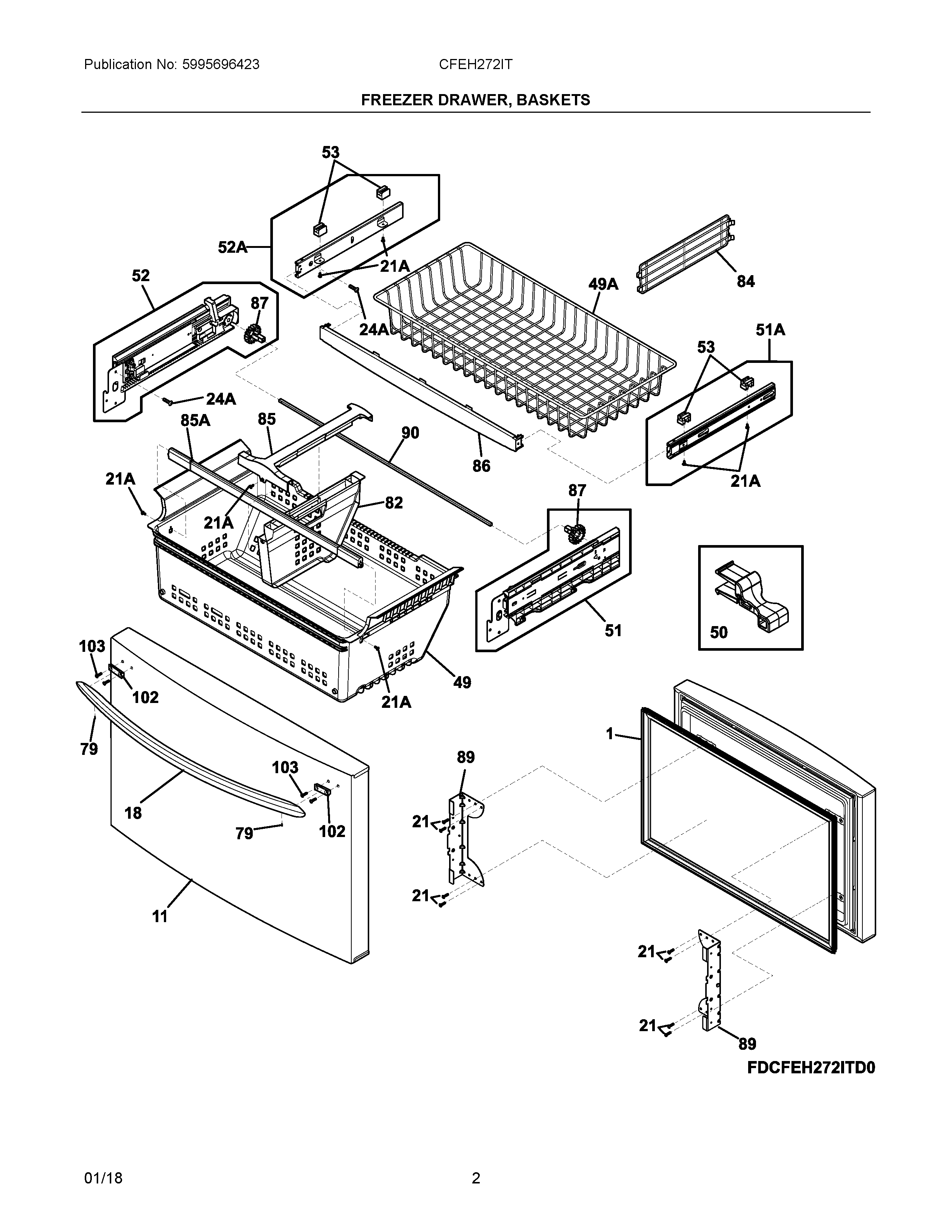

CFEH272ITS1 02 – FREEZER DRAWER, BASKETS

Written by

Products

Position	Product
NIA	5304508270 Frigidaire Wrench
NIAA	242039701 Frigidaire Refrigerator Screw
NIA	242139201 Frigidaire Compression Spring
NIA	242039702 Frigidaire Refrigerator Screw
NIA	242011101 Frigidaire Refrigerator Pin-Lock
NI	242146401 Frigidaire Refrigerator Screw
NI	242015001 Frigidaire Refrigerator Screw
1	GASKET
11	241987976 Frigidaire Refrigerator Door
18	5304510339 Frigidaire Refrigerator Freezer Door Handle
21	241690602 Frigidaire Refrigerator Screw
21A	241953902 Frigidaire Refrigerator Screw
24A	240383412 Frigidaire Refrigerator Screw
49A	241780810 Frigidaire Refrigerator Basket-Frzr
49	5304525892 Frigidaire Refrigerator Freezer Basket
50	5304501271 Frigidaire Shelf Clip
51	5304507978 Frigidaire Refrigerator Slide Assembly
51A	5304508096 Frigidaire Refrigerator Slide Assembly
52A	5304508097 Frigidaire Refrigerator Slide Assembly
52	5304507979 Frigidaire Refrigerator Slide Assembly
53	5303918801 Frigidaire Refrigerator Retainer Set of 4
79	218755402 Frigidaire Refrigerator Set Screw
82	5304503705 Frigidaire Refrigerator Divider
84	241780904 Frigidaire Refrigerator Divider
85	242130901 Frigidaire Refrigerator Divider
85A	242139301 Frigidaire Refrigerator Support-Beam
86	5304507340 Frigidaire Refrigerator Trim
87	5304507999 Frigidaire Refrigerator Pinion
89	5304509676 Frigidaire Refrigerator Bracket
90	241770705 Frigidaire Bar
102	5304504279 Frigidaire Handle Base
103	242077302 Frigidaire Screw
