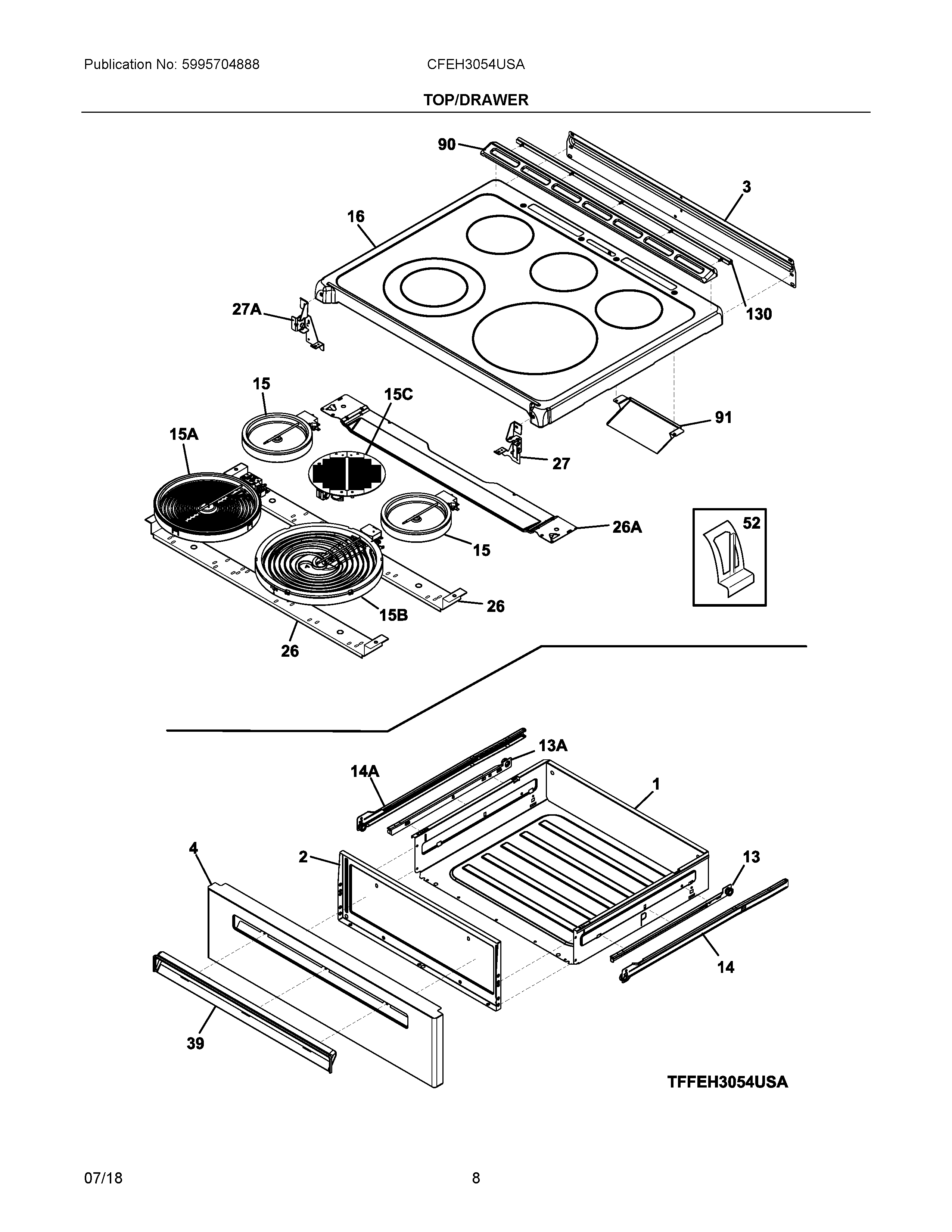

CFEH3054USA 04 – TOP/DRAWER

CFEH3054USA 04 – TOP/DRAWER

Written by

in

CFEH3054USA 04 – TOP/DRAWER

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI5304514143 Frigidaire Oven Harness
NIA5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527988 Frigidaire Liner
35304514133 Frigidaire Oven Shield
45304510527 Frigidaire Oven Panel Assembly
13A5304517903 Frigidaire Oven Glide Drawer
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15B316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
15C5304521951 Frigidaire Element
15A5304533520 Frigidaire Element
15318178110 Frigidaire Oven Range 6" Surface Element
165304514197 Frigidaire Oven Glass Cooktop
265304512926 Frigidaire Channel
26ABRACKET, SUPPORT, REAR, CHASSIS
27A5304514124 Frigidaire Bracket
275304514123 Frigidaire Bracket
395304511879 Frigidaire Handle Insert
52316461700 Frigidaire Oven Clip Assembly
905304514157 Frigidaire Oven Trim
915304514181 Frigidaire Deflector Assembly
130808931802 Frigidaire Oven Seal
