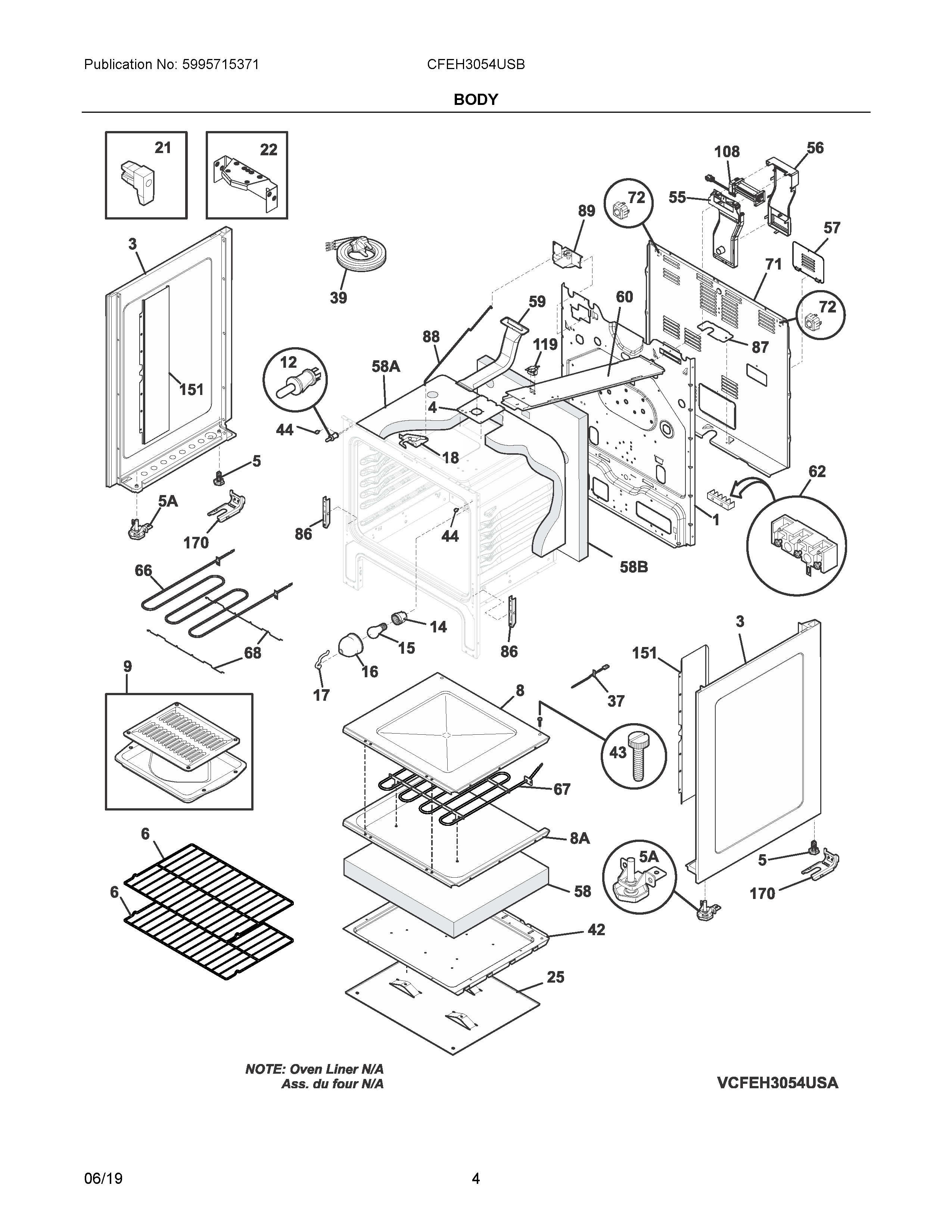

CFEH3054USB 03 – BODY

CFEH3054USB 03 – BODY

Written by

in

CFEH3054USB 03 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIA241853202 Frigidaire Refrigerator Screw
NI316021132 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIA316001017 Frigidaire Screw
NIA316064600 Frigidaire Oven Support
NI5304514142 Frigidaire Oven Harness
NI5303289910 Frigidaire Oven Screw
NIB316116000 Frigidaire Screw
NIA316279600 Frigidaire Screw
NI316418901 Frigidaire Oven Screw
NI316260800 Frigidaire Screw-SHOULDER
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
15304514161 Frigidaire Back
3316400144 Frigidaire Panel
3A316400145 Frigidaire Panel Assembly
4PLATE, OVEN VENT
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316496201 Frigidaire Oven Rack
8316400601 Frigidaire Oven Range Bottom Panel
8ABASE, BAKE ELEMENT
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
225304514125 Frigidaire Bracket Assembly
25316406200 Frigidaire Oven Shield
37316490000 Frigidaire Oven Range Temperature Sensor
39WCI 318113111
42316400701 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
555304514171 Frigidaire Oven Duct
565304514172 Frigidaire Oven Duct
57316283600 Frigidaire Oven Cover
58A316403700 Frigidaire Insulation
58BWCI 316403600
58316403802 Frigidaire Insulation
595304514160 Frigidaire Tube
605304522591 Frigidaire Duct Assembly
625304409888 Frigidaire Oven Terminal Block with Hardware
66BROIL ELEMENT
67316413800 Frigidaire Oven Range Bake Element
68316429100 Frigidaire Oven Support Bracket
715304514174 Frigidaire Oven Shield
725304514177 Frigidaire Spacer
86316441300 Frigidaire Receptacle
87316081202 Frigidaire Bracket
88316232702 Frigidaire Rod
89MOTOR
1085304514166 Frigidaire Fan Assembly
119318578506 Frigidaire Oven High Limit Thermostat
151316404601 Frigidaire Oven Shield
