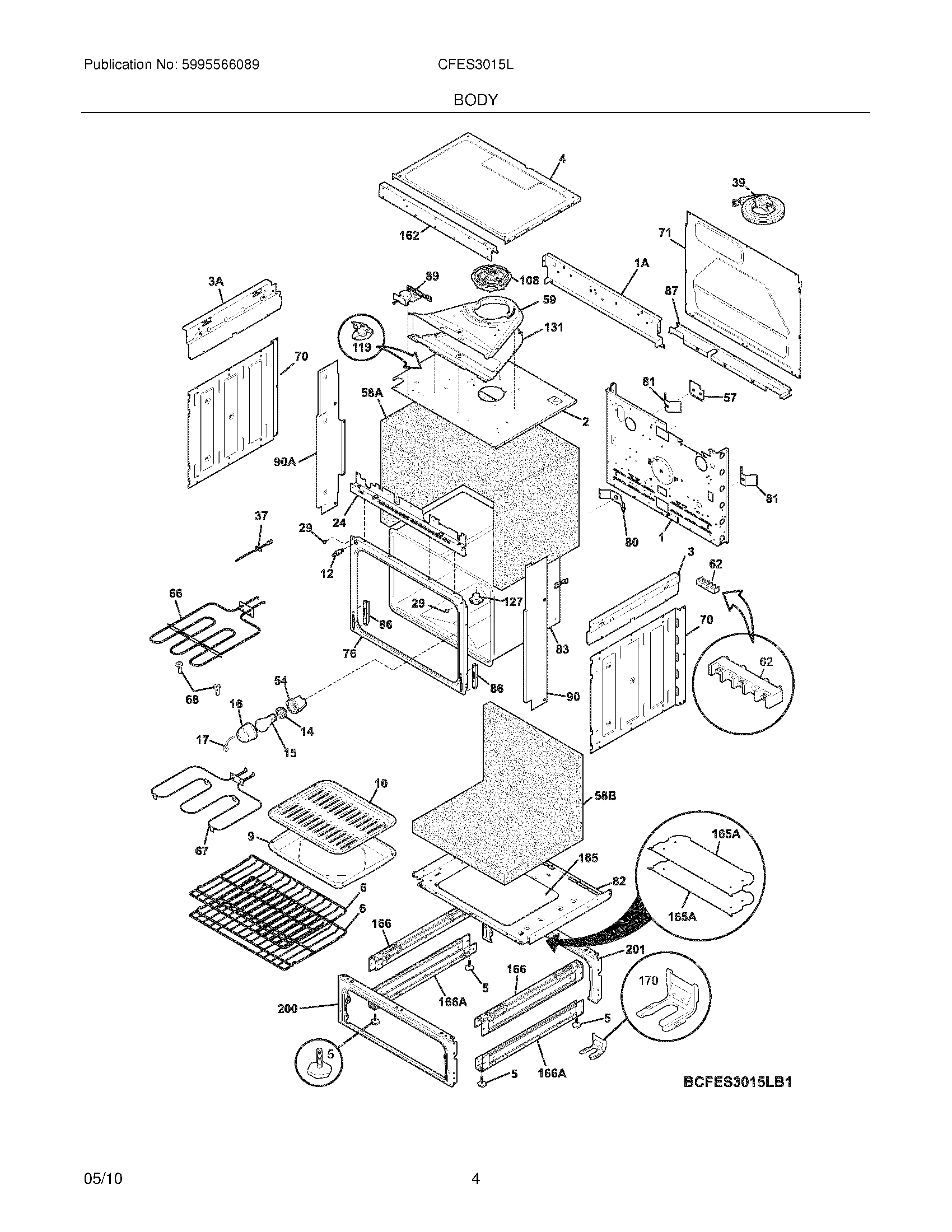

CFES3015LB1 05 – BODY

CFES3015LB1 05 – BODY

Written by

in

CFES3015LB1 05 – BODY

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NIWCI 318384489
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318368501
NIScrew,No.8-18 x 3/8 ,(10)
NIWCI 5304417153
NI5304461333 Frigidaire Oven Screw
NIWCI 5304400192
NISCREW-SHOULDER
NI5303323129 Frigidaire Oven Screw
NI5303324184 Frigidaire Wall Oven Range Screw
NI5304480396 Frigidaire Screw
NI5304436875 Frigidaire Oven Screw
NIWCI 5304440988
NIWCI 318579000
NIBRACKET-GLASS,(3)
NI08002868 Frigidaire 0 Screw Assembly
NI318531701 Frigidaire Spacer
NI5304415832 Frigidaire Oven Screw
NI5303323139 Frigidaire Oven Screw
1AWCI 318225110
1WCI 318259220
2WCI 318570500
3WCI 318225210
3AWCI 318225211
4WCI 318073908
5Screw,leveling ,w/tee nut
6WCI 318345207
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
24WCI 318913112
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
39WCI 318113111
54WCI 318222400
57WCI 318402800
58BInsulation,oven wrapper ,back/bottom
58AWCI 318386113
59WCI 318570600
625304409888 Frigidaire Oven Terminal Block with Hardware
66WCI 318255801
67318254918 Frigidaire Oven Element
685304403015 Frigidaire Oven Support
70WCI 318259105
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258765
83WCI 318261456
86318561100 Frigidaire Receptacle
87WCI 318260625
89318261230 Frigidaire Oven Motor
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
108318575600 Frigidaire Oven Motor
119WCI 318578501
127WCI 318317104
131WCI 318574800
162WCI 318225820
165WCI 318326501
165WCI 318322600
166318298410 Frigidaire Oven Bracket
166WCI 318298403
170WCI 318335500
200WCI 318335600
201318298233 Frigidaire Oven Frame
