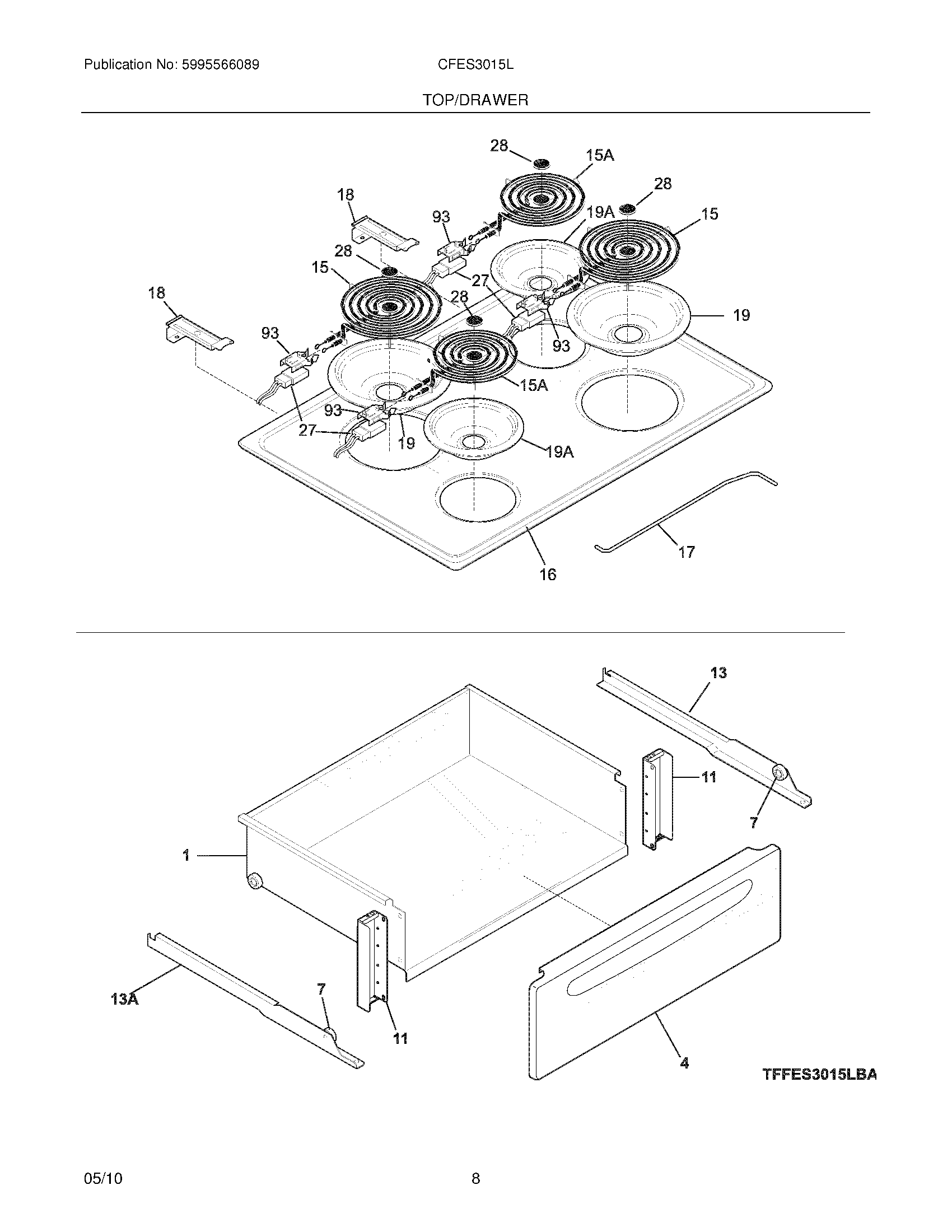

CFES3015LB1 07 – TOP/DRAWER

CFES3015LB1 07 – TOP/DRAWER

Written by

in

CFES3015LB1 07 – TOP/DRAWER

Products

PositionProduct
NISCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
NI5303323137 Frigidaire Oven Screw
NI5303323130 Frigidaire Oven Screw
NI5304517816 Frigidaire Harness
NIWCI 5304417153
NIScrew,No.8-18 x 3/8 ,(10)
NI5304480396 Frigidaire Screw
NIWCI 318301003
15304505701 Frigidaire Drawer Body with Roller
4WCI 318298908
7318332211 Frigidaire Oven Roller
11WCI 318298601
13WCI 318018100
13AWCI 318018101
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16318225606 Frigidaire Oven Maintop
17ROD-TOP SUPPORT
18WCI 318227710
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
93WCI 318366410
