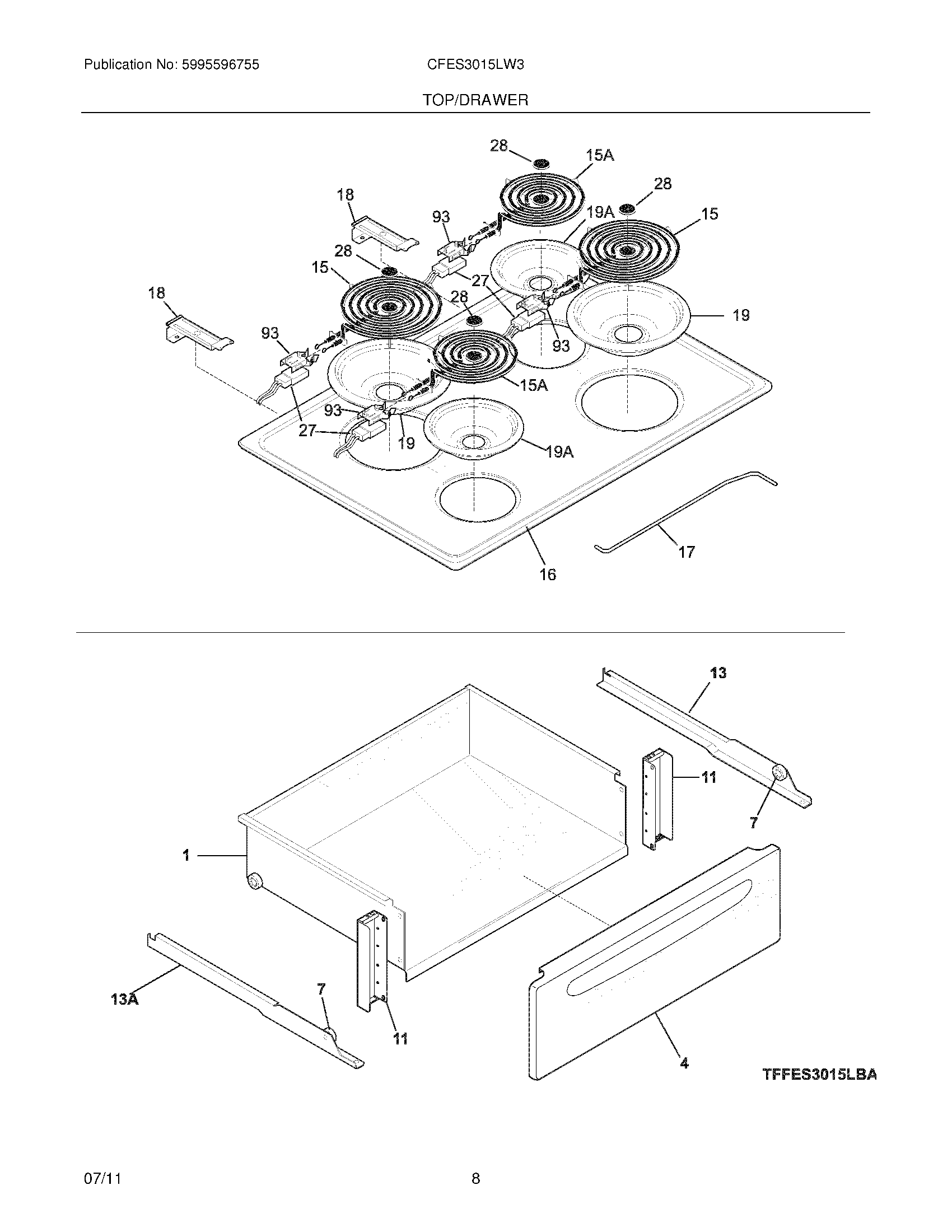

CFES3015LW3 07 – TOP/DRAWER

CFES3015LW3 07 – TOP/DRAWER

Written by

in

CFES3015LW3 07 – TOP/DRAWER

Products

PositionProduct
NIWCI 318301003
NI5303323130 Frigidaire Oven Screw
NISCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
NIWCI 5304417153
NIScrew,No.8-18 x 3/8 ,(10)
NI5304480396 Frigidaire Screw
NI5304517816 Frigidaire Harness
NI5303323137 Frigidaire Oven Screw
15304505701 Frigidaire Drawer Body with Roller
4318298906 Frigidaire Oven Panel
7318332211 Frigidaire Oven Roller
11WCI 318298600
13AWCI 318018101
13WCI 318018100
15316442301 Frigidaire Oven 8 Coil Element 2600W
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 318225607
17ROD-TOP SUPPORT
18WCI 318227710
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
93WCI 318366410
