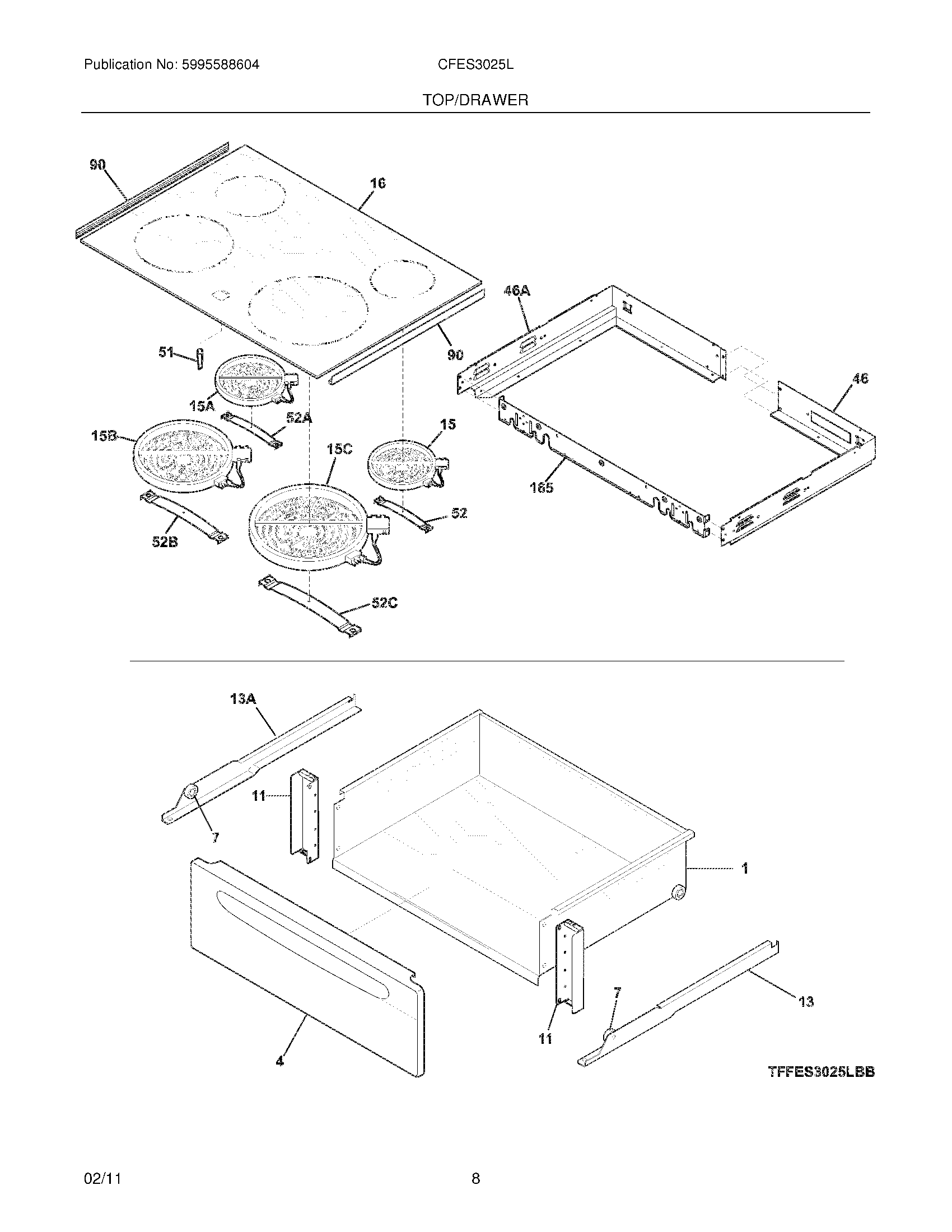

CFES3025LB2 07 – TOP/DRAWER

CFES3025LB2 07 – TOP/DRAWER

Written by

in

CFES3025LB2 07 – TOP/DRAWER

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NI318231876 Frigidaire Harness
NIWCI 5304417153
NIScrew,No.8-18 x 3/8 ,(10)
NI5304517816 Frigidaire Harness
NI5303211311 Frigidaire Refrigerator Screw
NI5304480396 Frigidaire Screw
NIWCI 318228969
15304505701 Frigidaire Drawer Body with Roller
4WCI 318298908
7318332211 Frigidaire Oven Roller
11WCI 318298600
13WCI 318018100
13AWCI 318018101
15318178110 Frigidaire Oven Range 6" Surface Element
15B9" RADIANT ELEMENT 2500W
15C316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
15A318198851 Frigidaire Oven Element
16WCI 318223688
46WCI 318568200
46AWCI 318568201
51318044831 Frigidaire Oven Light
52AWCI 318122004
52B318122010 Frigidaire Oven Spring Assembly
52318122006 Frigidaire Small Element Mounting Spring
52C318122011 Frigidaire Oven Spring
90WCI 318368001
165WCI 318227520
