CFES3025PBK 03 – BODY

CFES3025PBK 03 – BODY

Written by

in

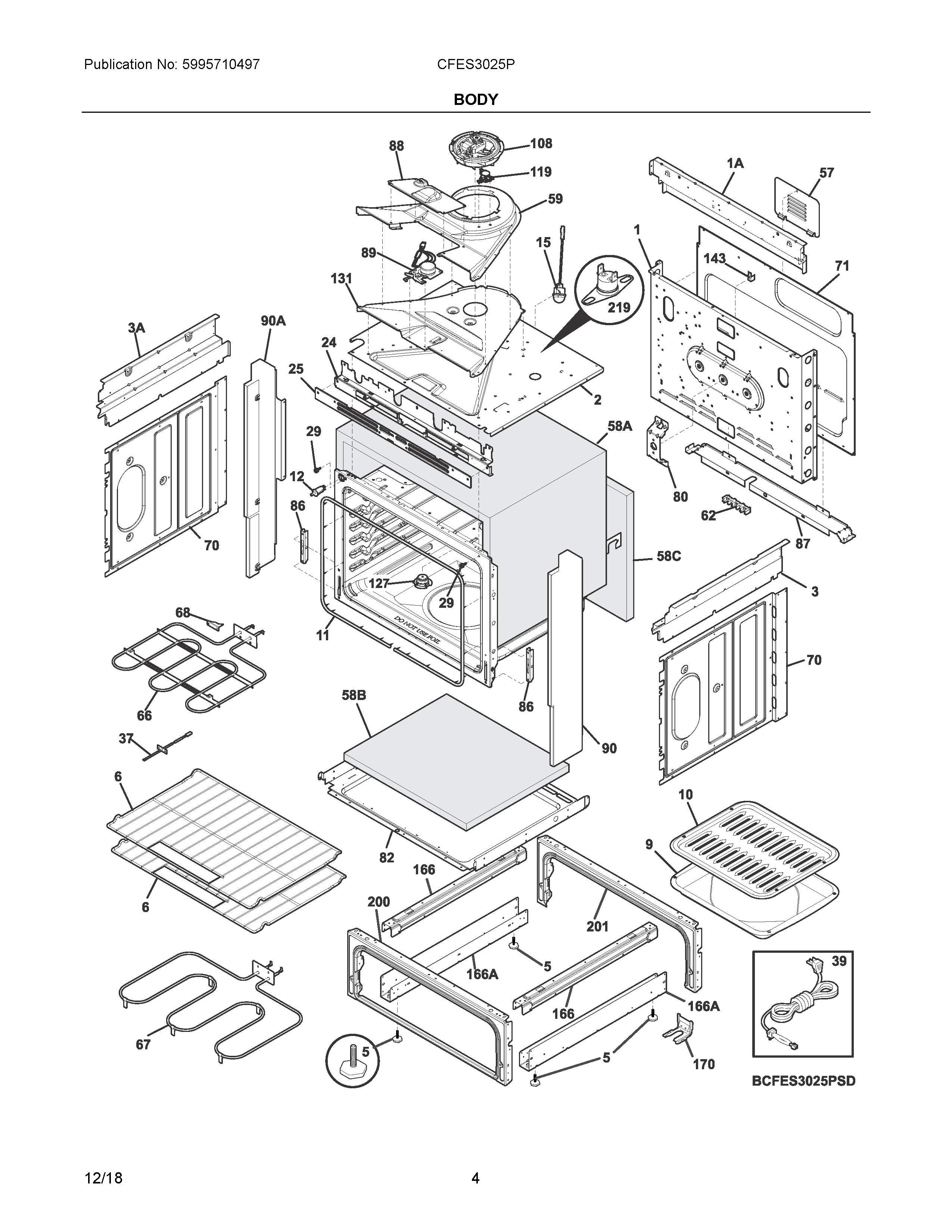

CFES3025PBK 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIA318531701 Frigidaire Spacer
NI318235301 Frigidaire Assembly Connector
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIAWCI 316581300
NIA316001017 Frigidaire Screw
NIB316116000 Frigidaire Screw
NIB316205500 Frigidaire Oven Nut
NIWCI 5304503336
NIWCI 139021000
NI316021109 Frigidaire Oven Screw
NIC5303289910 Frigidaire Oven Screw
NIAWCI 318579001
1A139004600 Frigidaire Oven Panel
1139017310 Frigidaire Panel
2139028107 Frigidaire Shield
3AWCI 318225231
3WCI 318225230
5316498903 Frigidaire Leveling Leg
6WCI 139011800
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
24139074902 Frigidaire Vent Trim Frame
25139075001 Frigidaire Oven Cover
29318147430 Frigidaire Oven Bumper
37SENSOR
39WCI 318113111
57316283600 Frigidaire Oven Cover
58CWCI 139020202
58BWCI 139020303
58A139001700 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
67139027501 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
82WCI 139008200
86318561100 Frigidaire Receptacle
87WCI 318260625
885304506964 Frigidaire Oven Cover
89MOTOR
905304511889 Frigidaire Oven Panel
90A5304511890 Frigidaire Oven Panel
108318575612 Frigidaire Oven Cooling Fan Motor
119807144901 Frigidaire Thermostat
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
166318298410 Frigidaire Oven Bracket
166A5304511884 Frigidaire Oven Bracket
170A5304486410 Frigidaire Oven Kit
170ANTI-TIP BRACKET
200WCI 318298232
201318298233 Frigidaire Oven Frame
219318005229 Frigidaire Oven Switch
