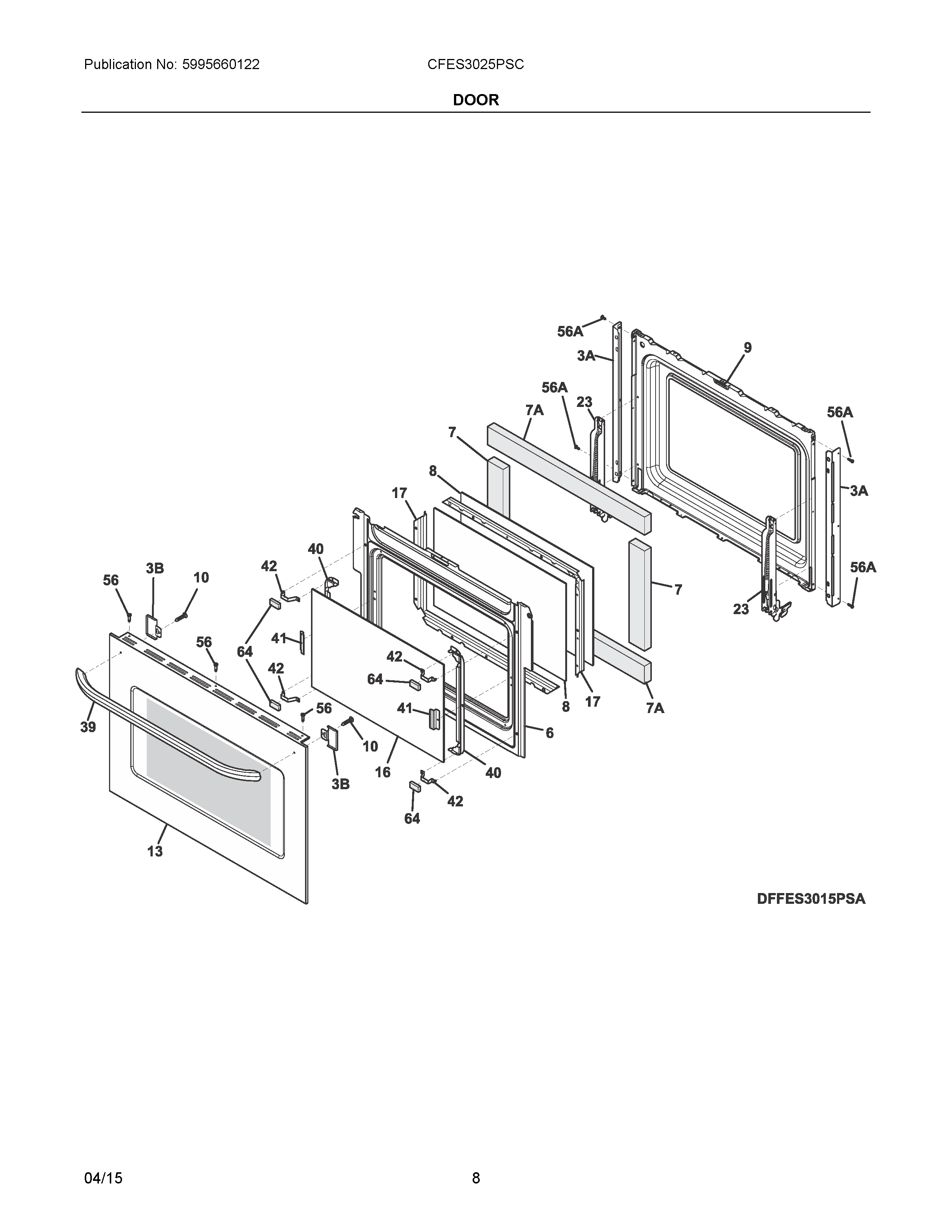

CFES3025PSC 05 – DOOR

Products

Position	Product
NIA	316418900 Frigidaire Oven Screw
NI	316483102 Frigidaire Oven Label
3B	318262104 Frigidaire Oven Cover
3A	139014401 Frigidaire Oven Trim
6	139006905 Frigidaire Oven Baffle
7	318372017 Frigidaire Insulation
7A	318372016 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	139000411 Frigidaire Oven Liner
10	5303311174 Frigidaire Oven Screw
13	DOOR ASSEMBLY, OUTER, STEEL/GLASS, STAINLESS/BLACK, W/TRIM
16	316446401 Frigidaire Oven Glass
17	318264731 Frigidaire Oven Spacer
23	316575915 Frigidaire Oven Hinge
39	316558201 Frigidaire Oven Handle
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
56	5303324184 Frigidaire Wall Oven Range Screw
56A	5304480396 Frigidaire Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
