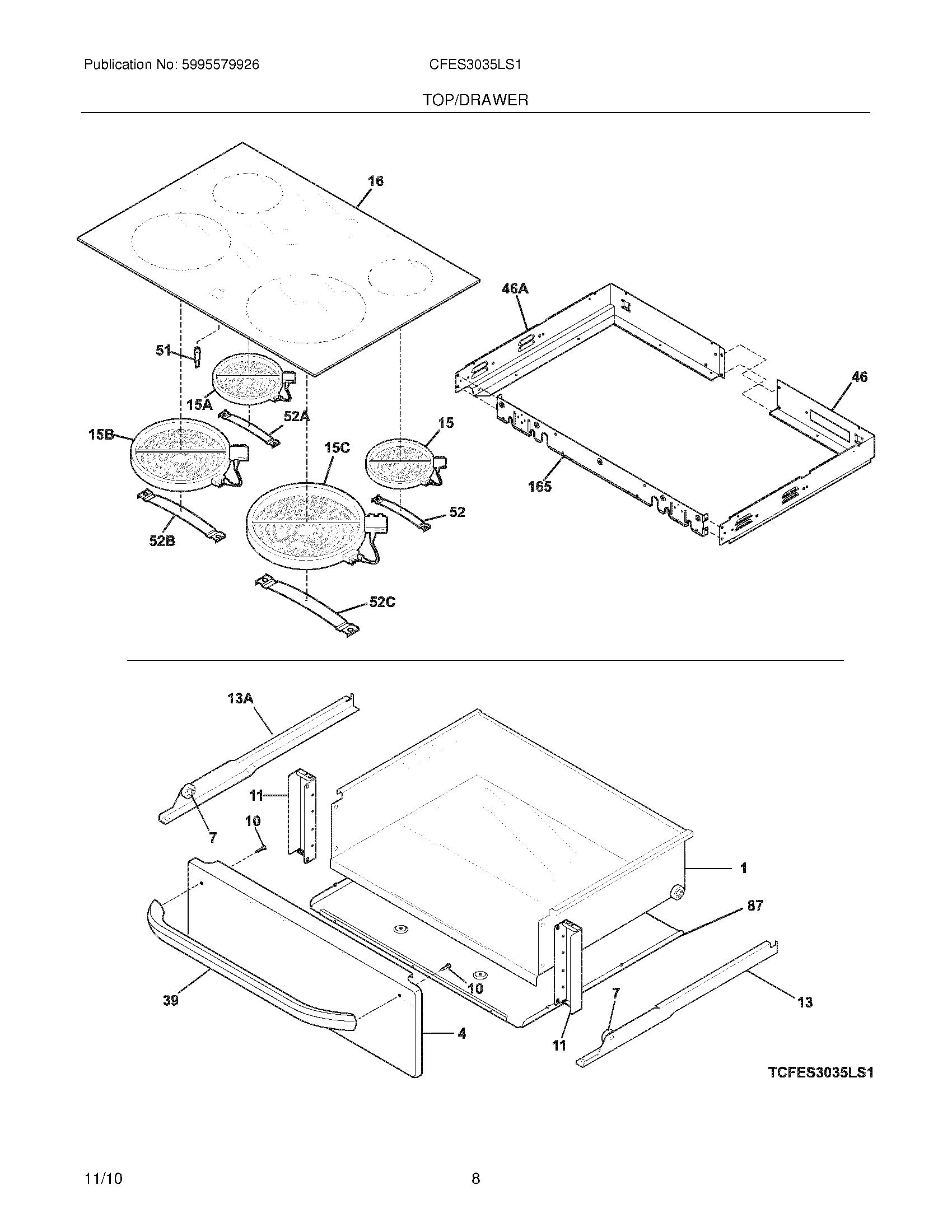

CFES3035LS1 07 – TOP/DRAWER

CFES3035LS1 07 – TOP/DRAWER

Written by

in

CFES3035LS1 07 – TOP/DRAWER

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NIWCI 318228969
NI5304517816 Frigidaire Harness
NI318231876 Frigidaire Harness
NI134716700 Frigidaire Washer
NIWCI 5304417153
NIScrew,No.8-18 x 3/8 ,(10)
NI5304480396 Frigidaire Screw
NI5303211311 Frigidaire Refrigerator Screw
15304505701 Frigidaire Drawer Body with Roller
4WCI 318298812
7318332211 Frigidaire Oven Roller
105304414648 Frigidaire Oven Screw
11WCI 318298601
13AWCI 318018101
13WCI 318018100
15B9" RADIANT ELEMENT 2500W
15A318198851 Frigidaire Oven Element
15318178110 Frigidaire Oven Range 6" Surface Element
15C316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
16WCI 318223688
39316558201 Frigidaire Oven Handle
46WCI 318568200
46AWCI 318568201
51318044831 Frigidaire Oven Light
52AWCI 318122004
52B318122010 Frigidaire Oven Spring Assembly
52C318122011 Frigidaire Oven Spring
52318122006 Frigidaire Small Element Mounting Spring
87318300102 Frigidaire Oven Panel
165WCI 318227520
