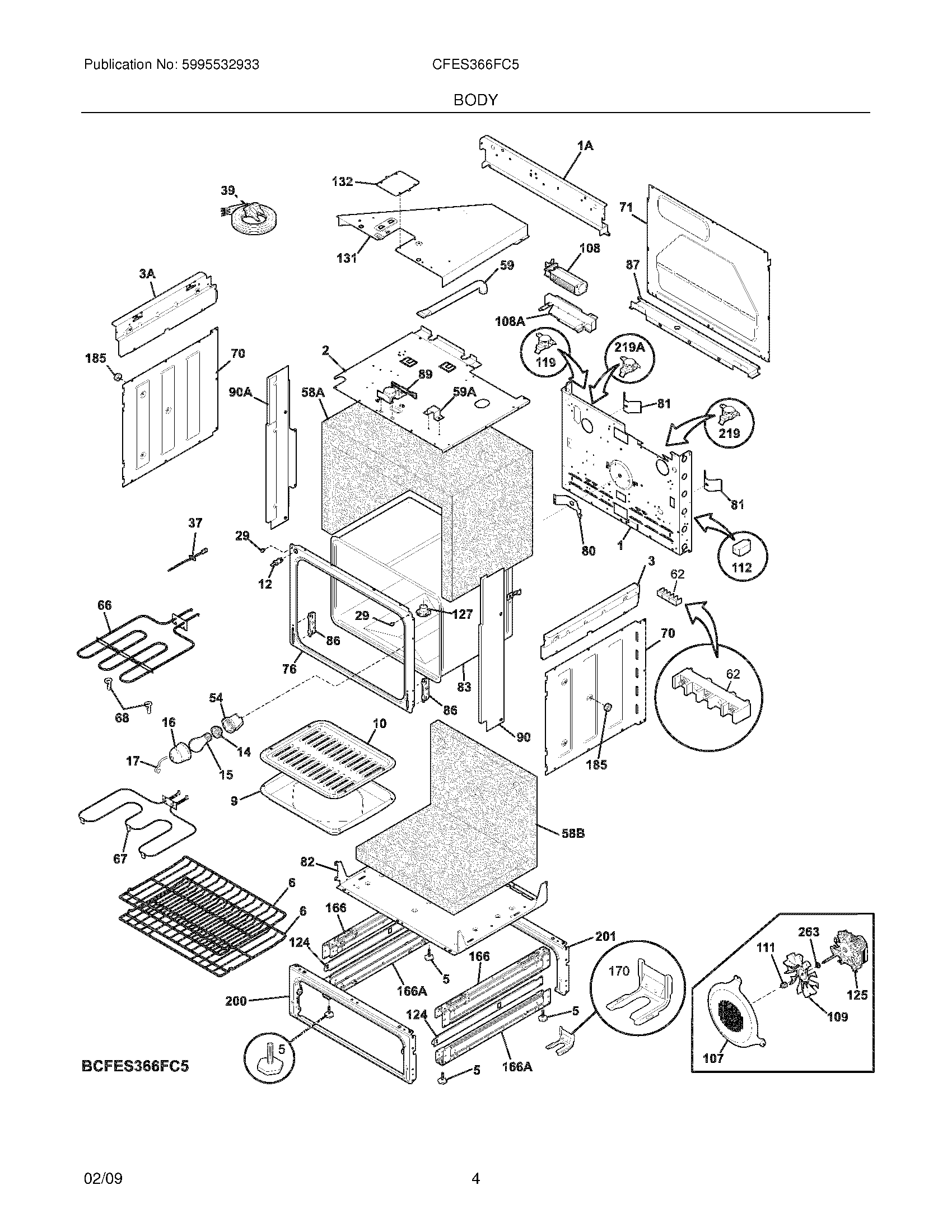

CFES366FC5 05 – BODY

CFES366FC5 05 – BODY

Written by

in

CFES366FC5 05 – BODY

Products

PositionProduct
NI5304436875 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
NI318235301 Frigidaire Assembly Connector
NI5304415832 Frigidaire Oven Screw
NI5303323139 Frigidaire Oven Screw
NIWCI 318224975
NI5303323129 Frigidaire Oven Screw
NIWCI 318249403
NISCREW-SHOULDER
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5303211311 Frigidaire Refrigerator Screw
1WCI 318259220
1AWCI 318225110
2WCI 318258902
3WCI 318225210
3AWCI 318225211
5Screw,leveling ,w/tee nut
6WCI 318345207
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
39WCI 318113111
54WCI 318222400
58BInsulation,oven wrapper ,back/bottom
58AWCI 318386100
59AWCI 318261600
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67318255401 Frigidaire Oven Element
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258707
83WCI 318261404
86318561100 Frigidaire Receptacle
87WCI 318260605
89318261230 Frigidaire Oven Motor
905304511889 Frigidaire Oven Panel
90A5304511890 Frigidaire Oven Panel
107WCI 318219405
108WCI 318251300
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
112WCI 318112703
119318005202 Frigidaire Limit Switch
124WCI 318300800
1255304463302 Frigidaire Convection Motor
125WCI 5303316994
127318317100 Frigidaire Adapter Assembly
131WCI 318272901
132318003000 Frigidaire Plate
166WCI 318298403
166318298410 Frigidaire Oven Bracket
170WCI 318335500
185318165800 Frigidaire Oven Door Glass Spacer with Screw
200WCI 318298221
201WCI 318298210
219318003624 Frigidaire Oven High Limit Thermostat
219318003614 Frigidaire Thermostat
263316008401 Frigidaire Washer P-1
