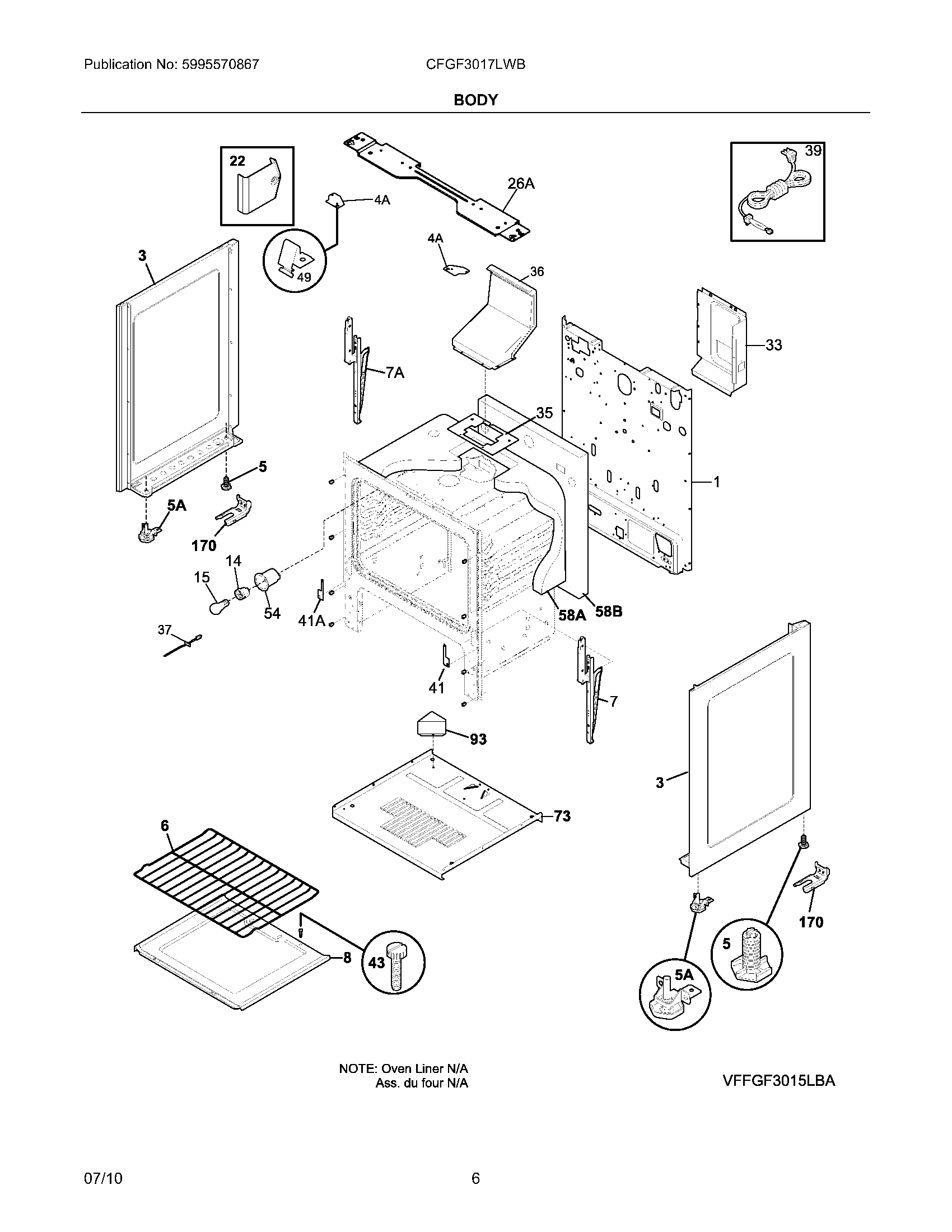

CFGF3017LWB 07 – BODY

Products

Position	Product
NI	Screw,cup pt ,8-18 x 0.375 ,chrome
NI	316001017 Frigidaire Screw
NI	316418901 Frigidaire Oven Screw
NI	316539800 Frigidaire Oven Retainer
NI	WASHER-BLACK
NI	316089500 Frigidaire Oven Screw
NI	316580100 Frigidaire Wire Harness Main
NI	316021105 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
NI	316064600 Frigidaire Oven Support
NI	WCI 316435800
1	WCI 316029419
3	316400143 Frigidaire Panel
3	316400142 Frigidaire Panel
4A	WCI 316446900
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
6	316067902 Frigidaire Oven Rack
7	316566204 Frigidaire Oven Hinge
7A	316566205 Frigidaire Oven Hinge
8	WCI 316495901
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
22	WCI 316567600
26A	316498200 Frigidaire Oven Bracket
33	WCI 316055600
35	316542102 Frigidaire Flue Gasket
36	FLUE
37	316233903 Frigidaire Range Oven Temperature Sensor
39	5304515659 Frigidaire Oven Power Cord
41A	WCI 316233500
41	WCI 316233400
43	316282700 Frigidaire Oven Screw
49	WCI 316260000
54	WCI 5303271606
58A	INSULATION, OVEN WRAPPER
58B	316054202 Frigidaire Insulation
73	WCI 316109902
93	WCI 316110000
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
