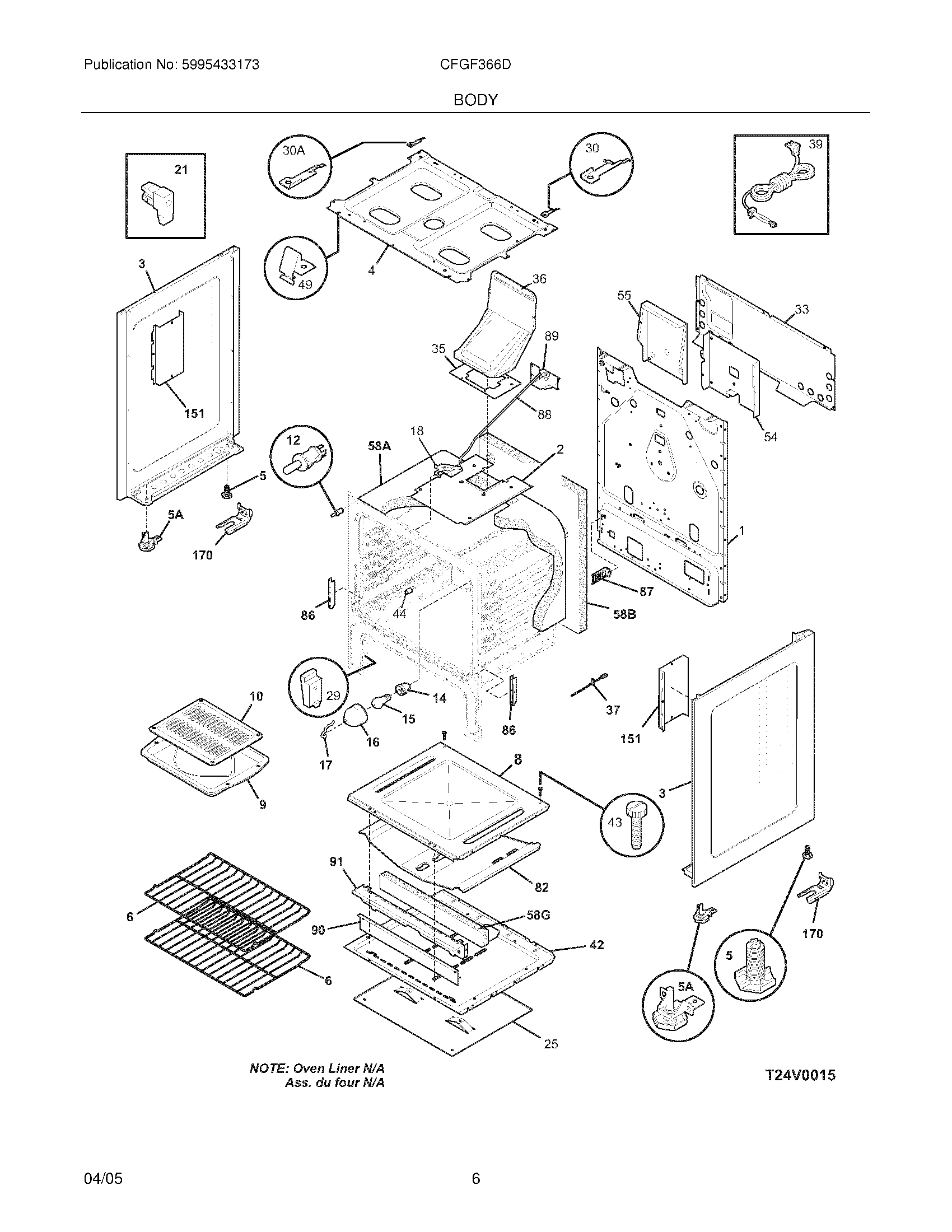

CFGF366DBD 07 – BODY

CFGF366DBD 07 – BODY

Written by

in

CFGF366DBD 07 – BODY

Products

PositionProduct
NI316089500 Frigidaire Oven Screw
NI316432800 Frigidaire Clip
NI316021109 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NIWCI 316416600
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316437100 Frigidaire Brace Assembly DSP
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI5303285179 Frigidaire Oven Door Screw
1316401608 Frigidaire Back
2WCI 316402201
3316400144 Frigidaire Panel
3316400145 Frigidaire Panel Assembly
4WCI 316201403
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6WCI 316404500
8316400603 Frigidaire Oven Stove Bottom Panel
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
25316406200 Frigidaire Oven Shield
29807047102 Frigidaire Oven Front Drawer Glide
30AWCI 316217701
30316217700 Frigidaire Oven Bracket
33316405900 Frigidaire Shield
35316542102 Frigidaire Flue Gasket
36FLUE
37OVEN TEMP PROBE
395304515659 Frigidaire Oven Power Cord
42WCI 316400703
43316282700 Frigidaire Oven Screw
44WCI 316246501
49WCI 316234200
54WCI 316404200
555304510473 Frigidaire Shield
58A316403700 Frigidaire Insulation
58BWCI 316403600
58G08067973 Frigidaire 0 Insulation
82316400801 Frigidaire Oven Shield
86316441300 Frigidaire Receptacle
87WCI 316401200
88316232702 Frigidaire Rod
89MOTOR
90WCI 316401100
91WCI 316401000
151WCI 316404600
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
170316116000 Frigidaire Screw
