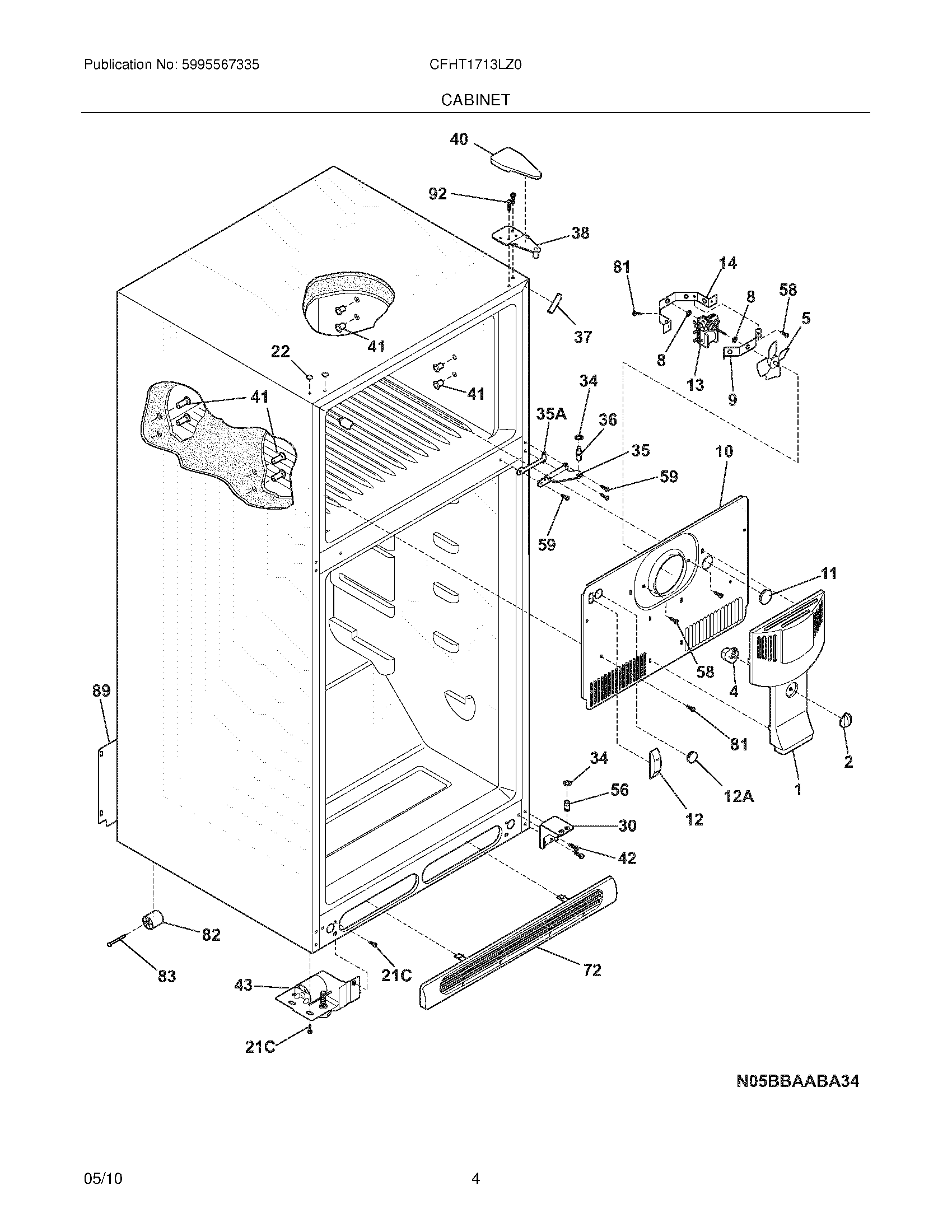

CFHT1713LZ0 05 – CABINET

Products

Position	Product
NI	240433204 Frigidaire Refrigerator Screw
NI	218515401 Frigidaire Refrigerator Clip
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241889001 Frigidaire Refrigerator Roller Assembly
NI	215474201 Frigidaire Refrigerator Washer
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	241500305 Frigidaire Refrigerator Screw
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	240438003 Frigidaire Refrigerator Bracket & Bushing
9	WCI 5303292396
10	WCI 241652215
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	241586701 Frigidaire Refrigerator Plug
12A	WCI 240374401
13	241854301 Frigidaire Refrigerator Evaporator Fan Motor
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	WCI 240357106
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	WCI 240357006
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	5303918606 Frigidaire Refrigerator Corner Cabinet Trim
38	WCI 240356903
40	240354401 Frigidaire Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	241889002 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	WCI 5304456287
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	240368301 Frigidaire Refrigerator Kickplate Grille 530447011
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733906 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
