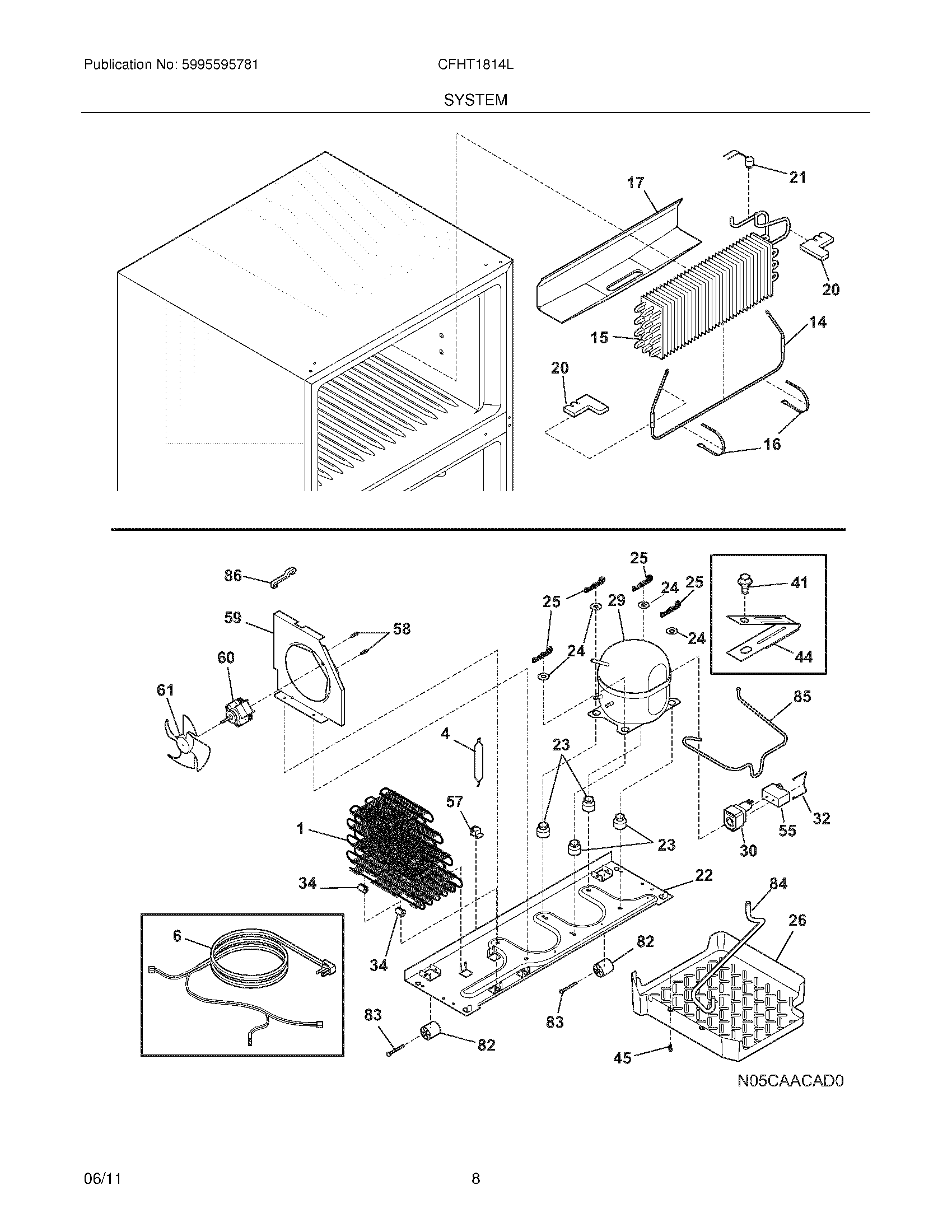

CFHT1814LZ3 09 – SYSTEM

Products

Position	Product
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	218252201 Frigidaire Refrigerator Screw
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	240388701 Frigidaire Refrigerator Wiring Harness
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	WCI 5303918222
NI	240396801 Frigidaire Refrigerator Tube Clamp
1	WCI 241785402
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	5304521786 Frigidaire Refrigerator Wiring Harness
14	242044008 Frigidaire Defrost Heater
15	242067214 Frigidaire Refrigerator S/A Pur-Evaporator
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
20	241551902 Frigidaire Refrigerator Insulation Block
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	241665606 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	WCI 241707720
32	5304497418 Frigidaire Refrigerator Clip
34	240405201 Frigidaire Refrigerator Grommet
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	242050604 Frigidaire Refrigerator Shroud
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	WCI 242014602
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
