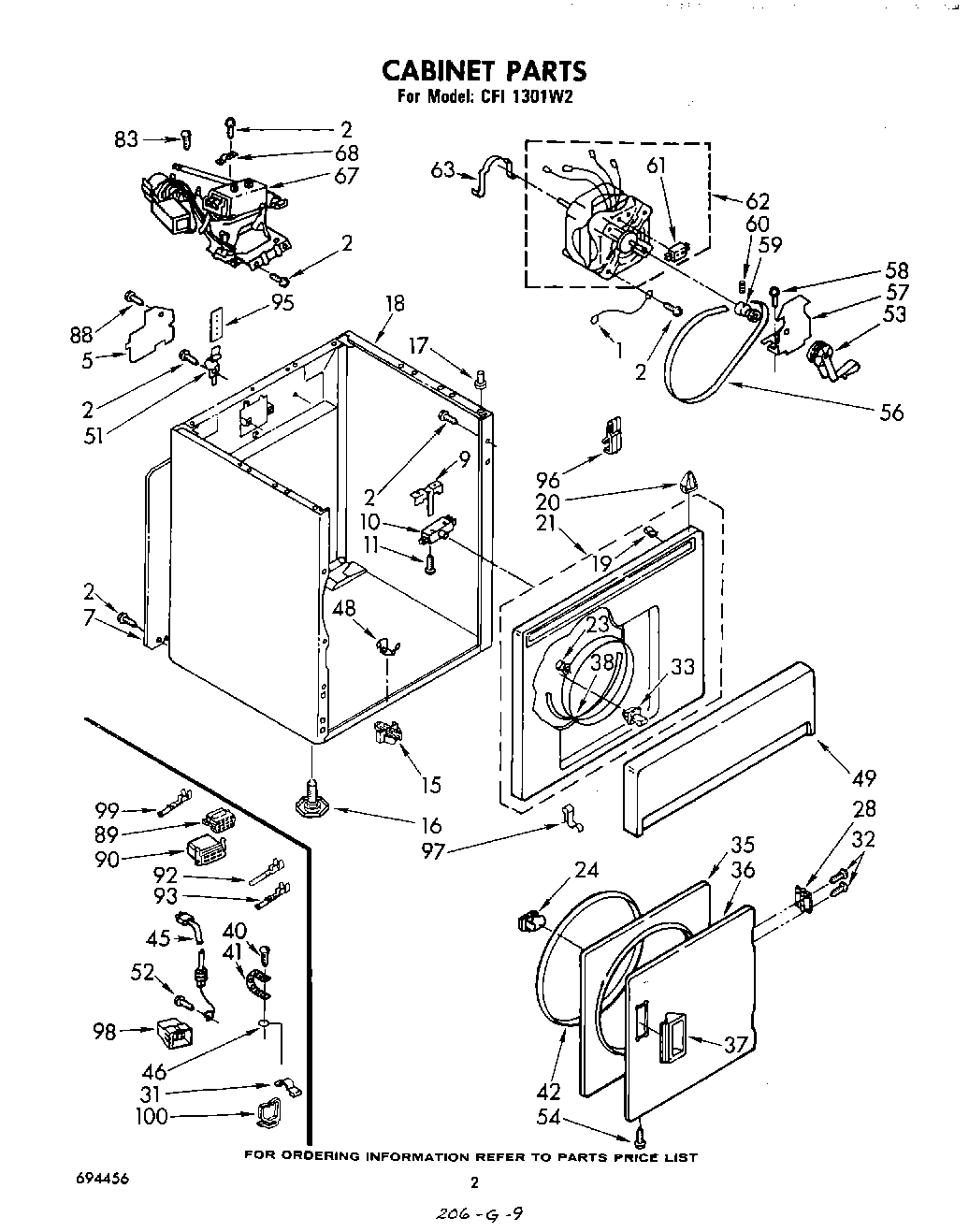

CFI1301W2 02 – CABINET

CFI1301W2 02 – CABINET

Written by

in

CFI1301W2 02 – CABINET

Products

PositionProduct
1Wire, Ground (Motor)
2SCREW
5W11736322 Whirlpool Cover Assembly
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
15Clip, Toe Panel
1649621 Whirlpool Leveling Feet
17Locator, Top
18Cabinet (Golden Harvest)
18Cabinet (White)
18Cabinet (Almond)
18Cabinet (New Avocado)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (White)
21Upper Front Panel Assembly (New Avocado)
21Upper Front Panel Assembly (Golden Harvest)
21Upper Front Panel Assembly (Almond)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
28WP348023 Whirlpool Hinge
318528351 Whirlpool Clip
32Screw
35280077 Whirlpool Door
36WP348205 Whirlpool Door
36WPL 689318
36WPL 689319
36Door, Front (Almond)
37WPL 689583
37WP686711 Whirlpool Door Handle
37Handle, Door (Almond)
37Handle, Door (Golden Harvest)
38279264 Whirlpool Bearing and Seal Kit
40Screw, Ground (10-24 x 1)
41Strap, Ground
42W11613302 Whirlpool Door Seal
45W11222083 Whirlpool Power Cord
46WPL 364089
48WP297092 Whirlpool Clip
49Panel, Toe (Golden Harvest)
49Panel, Toe (Almond)
49Panel, Toe (White)
49Panel, Toe (New Avoca
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
54WP694091 Whirlpool Screw
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11233559 Whirlpool Motor Pulley
60SCREW, SET
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67WPL 688637
68341029 Whirlpool Clamp
83WPW10366705 Whirlpool Screw
89Plug, Terminal (15 Way) (Use Terminal 96413)
90Cap, Terminal (15 Way) (Use Terminal 97452)
92Terminal
93Terminal
9518849 Whirlpool Pad
96Clip, Retainer
97WPL 341776
98353424 Whirlpool Connector
98Connector (Door Switch)
99WP94614 Whirlpool Terminal
99WP596797 Whirlpool Terminal
100Clip, Harness (Rear Bulkhead Area)
