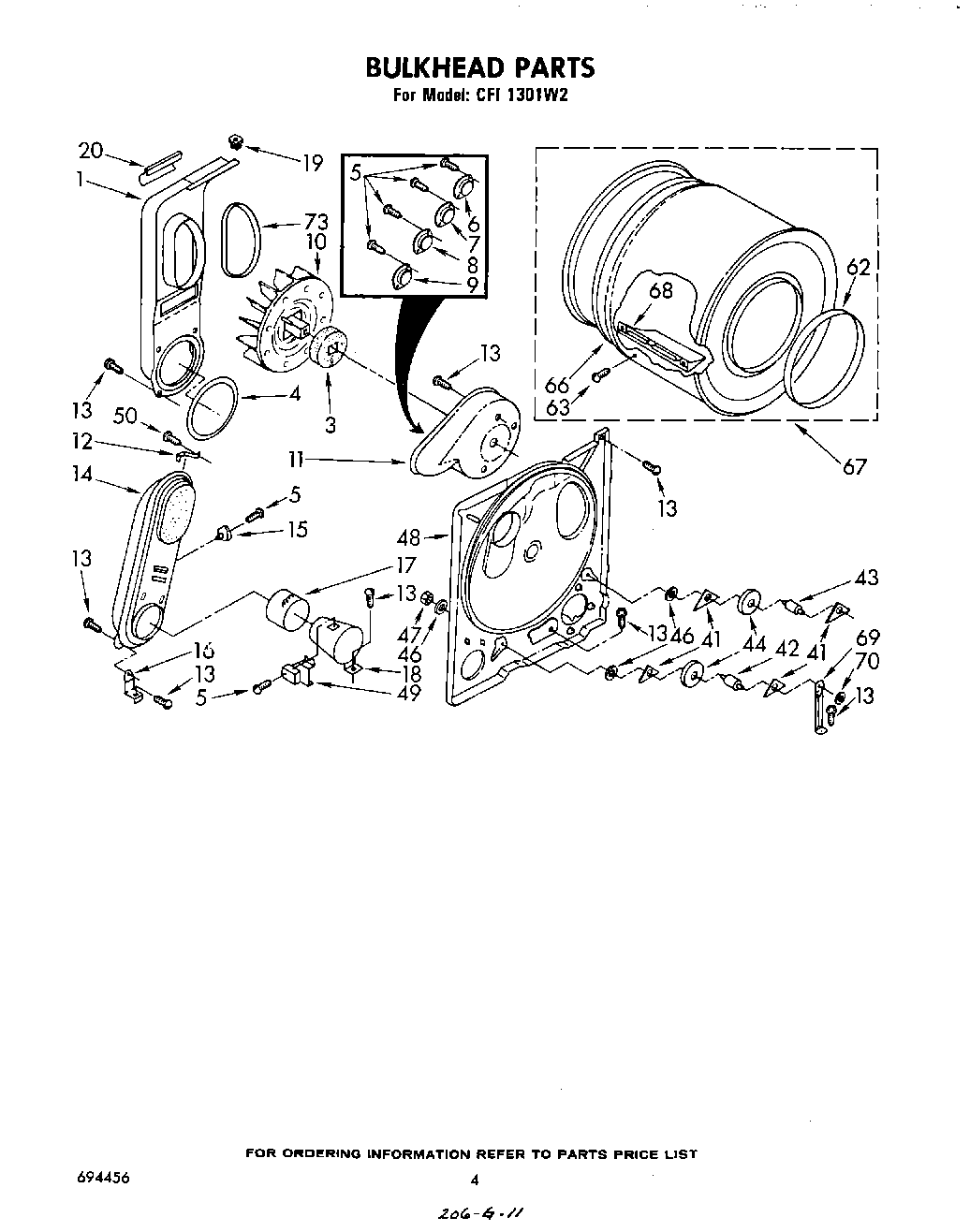

CFI1301W2 03 – BULKHEAD

CFI1301W2 03 – BULKHEAD

Written by

in

CFI1301W2 03 – BULKHEAD

Products

PositionProduct
1279505 Whirlpool Chute
3Seal, Blower
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6(Alt.)
6Thermostat, 180~F (82~C)
6(Alt.)
7WP694674 Whirlpool Cycling Thermostat
9Thermostat, 140
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat, 205 F (96 C)
15Thermostat SPST (205)
15(Alt.)
16Support, Heater Box (2)
17279900 Whirlpool Box O/S1
1998460 Whirlpool Nut
20686770 Whirlpool Support Bracket
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
