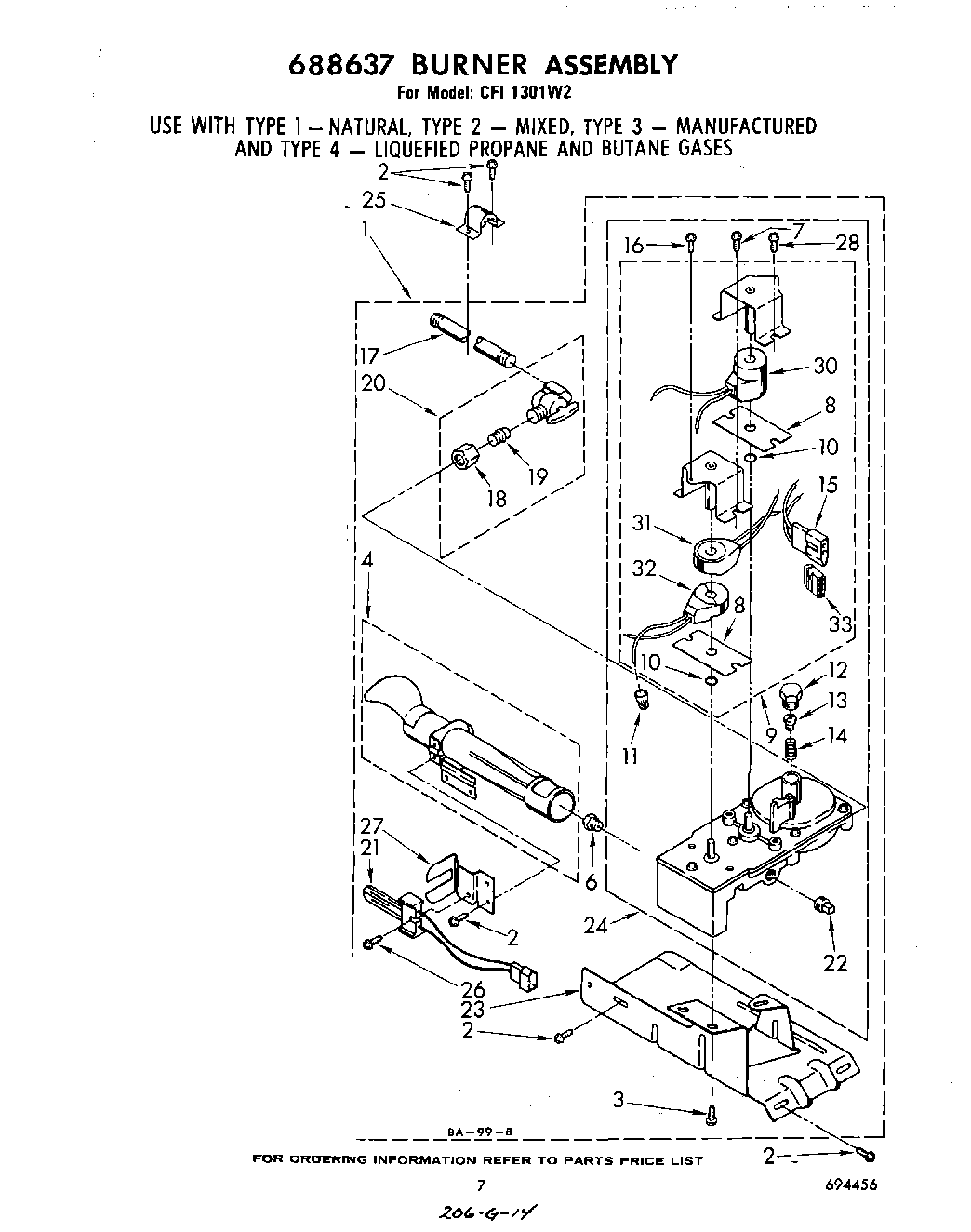

CFI1301W2 06 – 688637 BURNER

Products

Position	Product
1	WPL 688637
2	SCREW
3	WP90767 Whirlpool Screw
4	WP693140 Whirlpool Burner
6	WP234826 Whirlpool Gas Orifice
6	Orifice, Burner (Type 2)
6	Orifice, Burner (Type 3)
6	WP234868 Whirlpool Gas Orifice
6	WP229742 Whirlpool Gas Orifice
7	WP489128 Whirlpool Refrigerator Screw
8	Plate (2)
9	BURNER-GAS
10	Ring, ``O`` (2)
11	Connector, Wire (3)
12	Screw, Leak Limiter
13	Screw, Regulator Adjustment
14	Spring, Regulator
15	353424 Whirlpool Connector
16	Screw, 6-20 x 5/16
17	Pipe, Gas Supply
18	Nut, Compression
19	3393767 Whirlpool Pipe
20	Valve & Union, Shut-Off
21	279311 Whirlpool Dryer Flat Igniter with Bracket
22	W10295523 Whirlpool Plug
23	Baseplate
24	BURNER-GAS
25	341029 Whirlpool Clamp
26	WPW10366705 Whirlpool Screw
27	WP694298 Whirlpool Bracket
28	Screw, 8-32 x 5/8 (2)
30	Coil Assembly (Main)
31	Coil Assembly (Hold)
32	Coil Assembly (Assist)
33	W10402145 Whirlpool LP Gas Connection
33	Kit, Conversion Type 1 To Type 3 (MFD)
33	Receptacle, Latching (2-Way) (Uses Terminal 94614)
