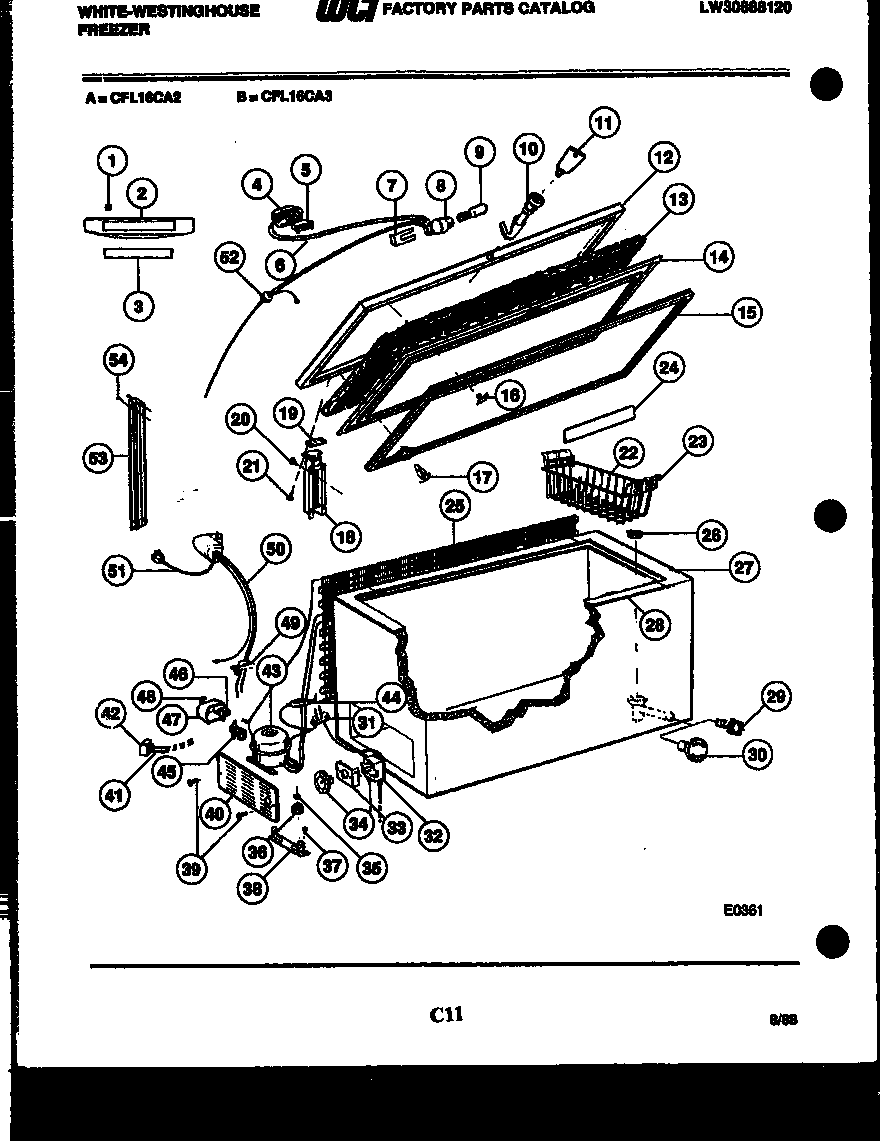

CFL16CA3 02 – CHEST FREEZER PARTS

Products

Position	Product
1	FASTENER
2	WCI F118097
3	WCI F122456
4	WCI F126469
5	WCI F128520
6	WCI F94494
7	WCI F113848
8	WCI F94491
9	WCI F92472
10	WCI G190358
11	297147700 Frigidaire Freezer Plastic Door Key
12	WCI 3017756
13	WCI F128897
14	WCI F128975
15	WCI F128165
16	CLIP PANEL AND LOCK
17	5303212828 Frigidaire Refrigerator Primary Clip
18	297321900 Frigidaire Refrigerator Hinge Assembly
19	SPACER-HINGE
20	SCREW HINGE
21	SCREW-HINGE
22	BASKET
23	HANDLE (BROWN)
24	WCI 3017731
25	5303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
27	WCI F128979
28	BREAKER REAR
29	HOSE ADAPTER
30	PLUG
31	GROMMET
32	CONTROL TEMP
33	WCI F127315
34	CONTROL KNOB
35	CLIP
36	218513300 Frigidaire Refrigerator Compressor Mount Grommet
37	SCREW
38	SUPPORT
39	216858001 Frigidaire Refrigerator Screw
40	WCI F127306-P
41	WCI F300579
42	5304464438 Frigidaire Compressor Run Capacitor
43	WCI F302080
44	DRIER-REGULAR
45	WCI F300397
46	WCI F300398
48	5303006412 Frigidaire Refrigerator Cover Mounting Strap
49	5303212614 Frigidaire Refrigerator Clip
50	WCI F300007
51	CORD, SERVICE
52	WCI F129555
53	WCI F129554-P
54	131168200 Frigidaire Dryer Screw
