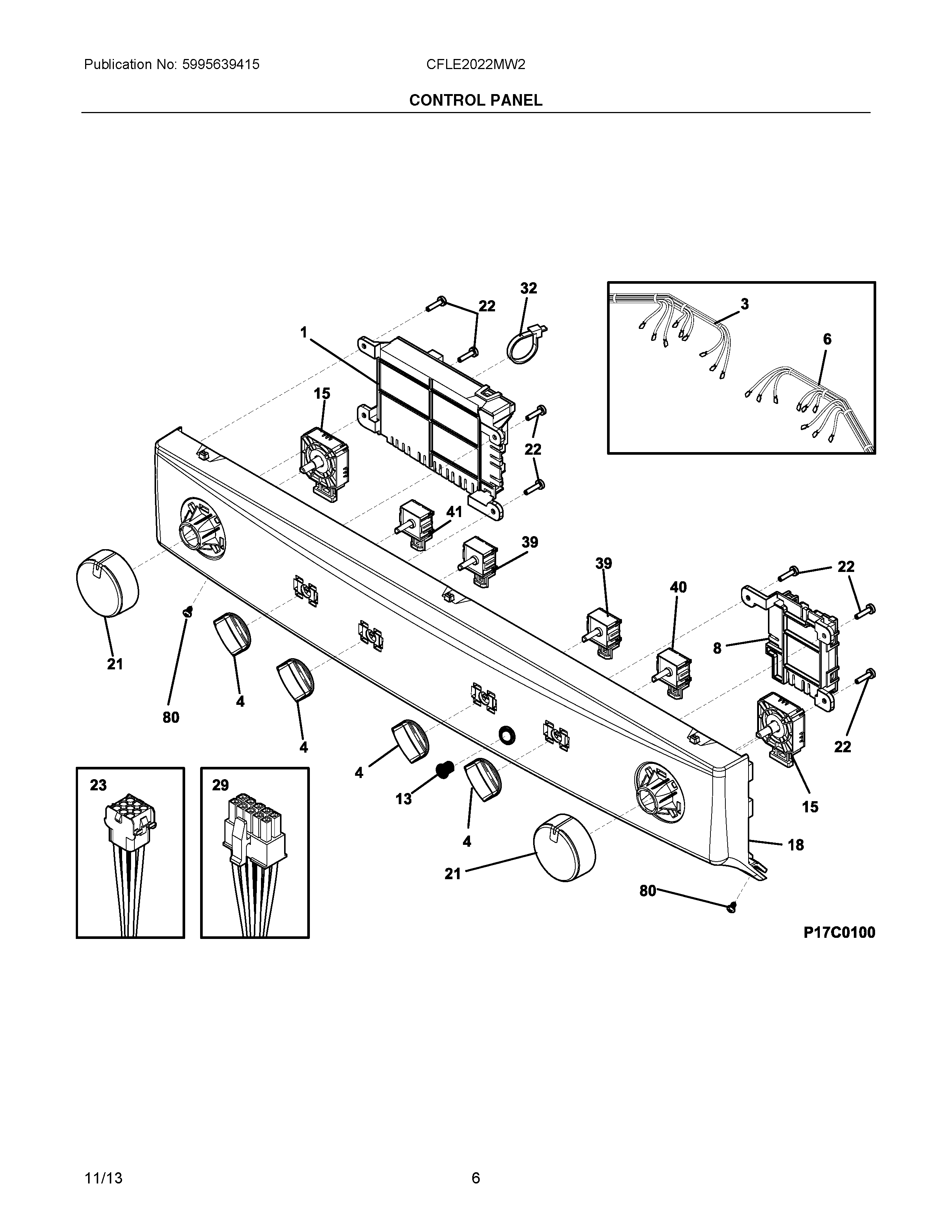

CFLE2022MW2 04 – CONTROL PANEL

Products

Position	Product
NIA	134101400 Frigidaire Dryer Kit Terminal Block
1	5304500454 Frigidaire Board
3	137329400 Frigidaire Wiring Harness
4	5304504886 Frigidaire Control Knob
6	HARNESS, UPPER LC, WASH
8	A00537603 Frigidaire Control Board
13	134040800 Frigidaire Switch
15	137493400 Frigidaire Switch
18	CONSOLE, DECORATED, CONTROL PANEL
21	WCI 137489800
22	131205100 Frigidaire Screw
23	WIRING HARNESS, MAIN
29	5304517938 Frigidaire Wiring Harness
32	5304464772 Frigidaire Refrigerator Wire Tie
39	137205200 Frigidaire Switch
40	137052700 Frigidaire Switch
41	137261000 Frigidaire Switch
80	134402900 Frigidaire Screw
