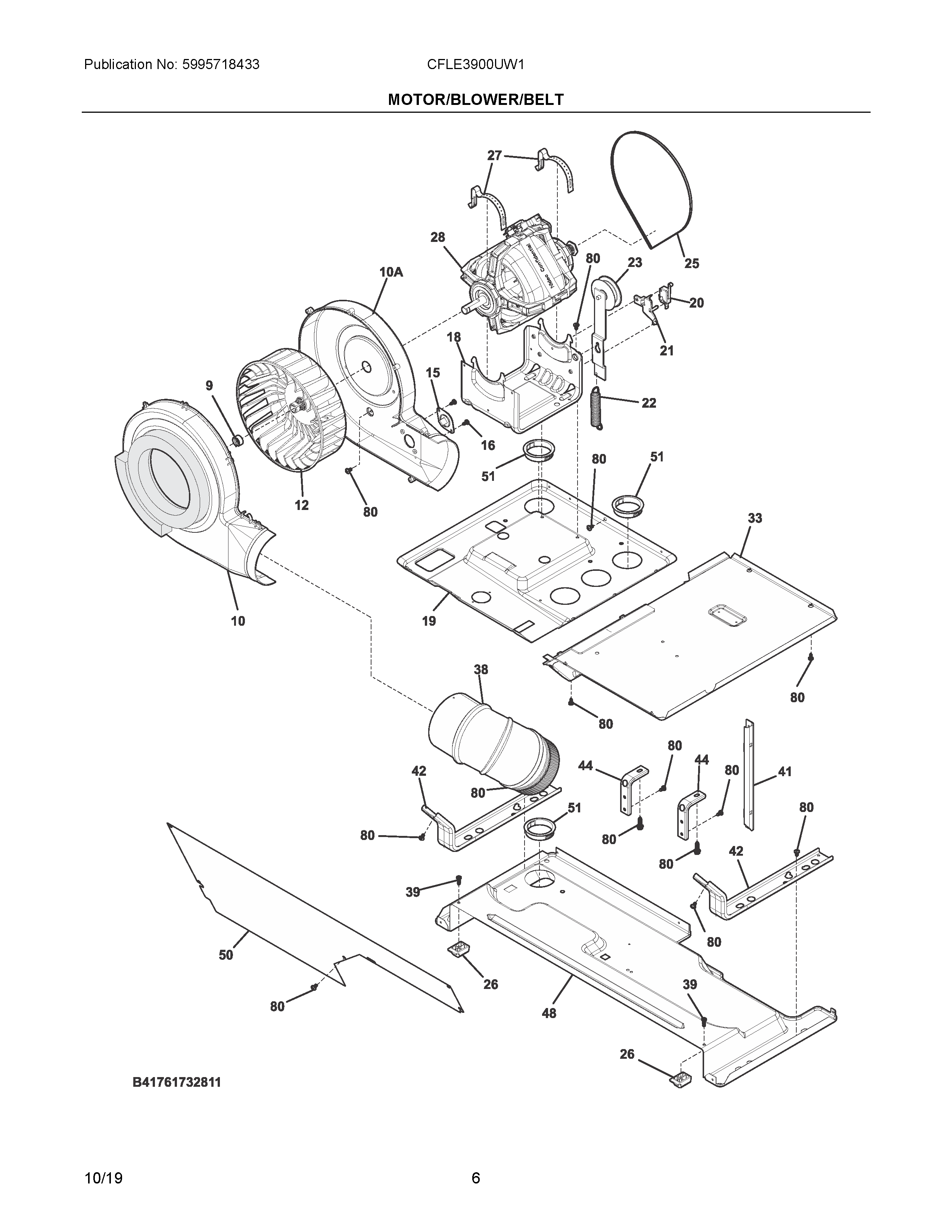

CFLE3900UW1 03 – MOTOR/BLOWER/BELT

CFLE3900UW1 03 – MOTOR/BLOWER/BELT

Written by

in

CFLE3900UW1 03 – MOTOR/BLOWER/BELT

Products

PositionProduct
NI134402900 Frigidaire Screw
NIA5304521434 Frigidaire Harness Wiring
NIA137212300 Frigidaire Gasket
95304488479 Frigidaire Washer Hose Clamp
10A137551800 Frigidaire Housing
105304515916 Frigidaire Housing Assembly
12BLOWER WHEEL
15134587700 Frigidaire Washer Control Thermistor
16131243700 Frigidaire Screw
18131367110 Frigidaire Assembly Motor Cradle
19137490900 Frigidaire Pan
205304521496 Frigidaire Limit Switch
215304521495 Frigidaire Bracket
223205241 Frigidaire Idler Spring
23IDLER ARM ASSY
25BELT-DRYER LC
26137511300 Frigidaire Block
27134242400 Frigidaire Washer Clamp Assembly
28134196602 Frigidaire Washer Dryer Motor
335304515828 Frigidaire Baffle
385304521383 Frigidaire Elbow
39131205100 Frigidaire Screw
41131091300 Frigidaire Bracket
42137304710 Frigidaire Bracket
443204326 Frigidaire Bracket Assembly
48137455500 Frigidaire Lower Pan Assembly
505304488478 Frigidaire Cover
51131453000 Frigidaire Bushing
80131168200 Frigidaire Dryer Screw
