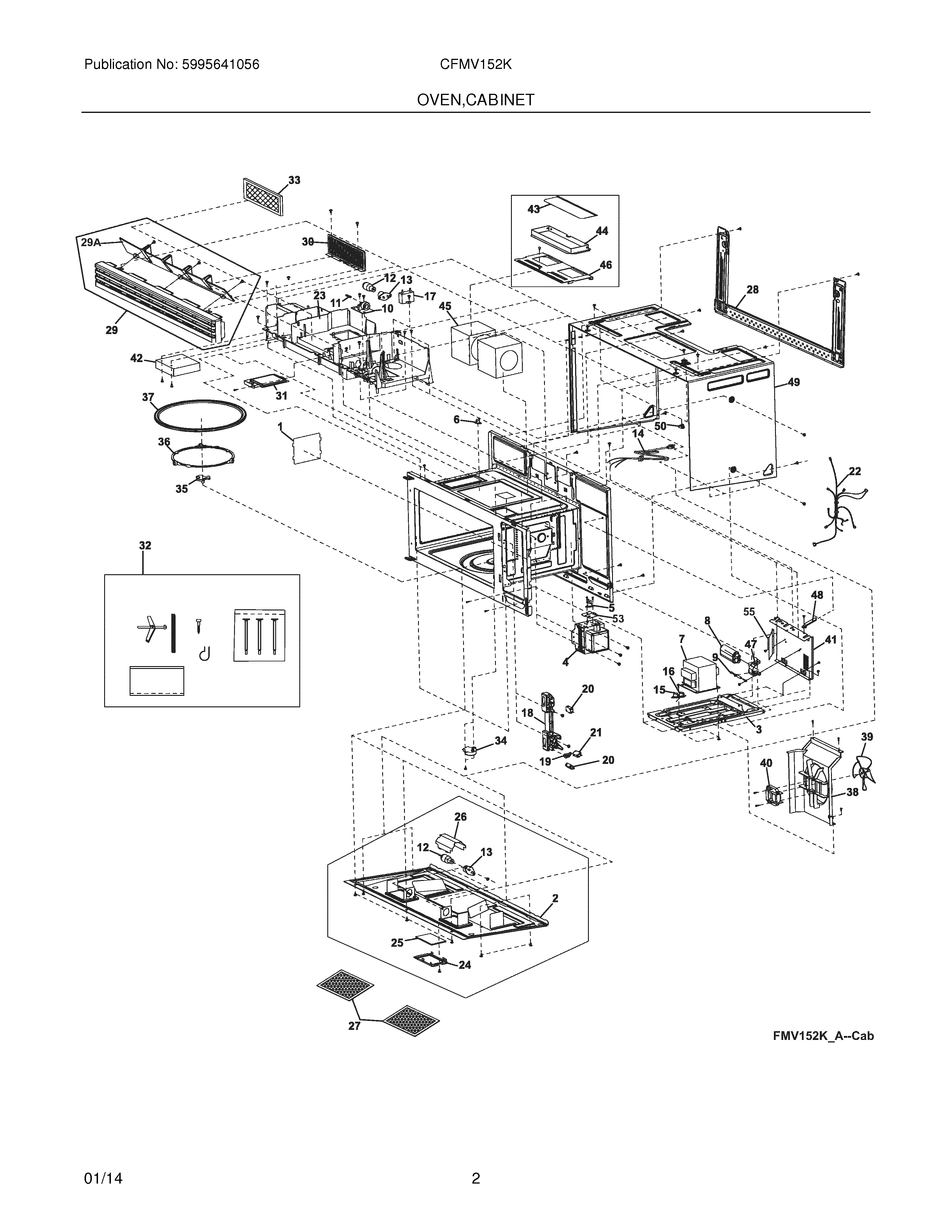

CFMV152KBA 03 – OVEN,CABINET

CFMV152KBA 03 – OVEN,CABINET

Written by

in

CFMV152KBA 03 – OVEN,CABINET

Products

PositionProduct
NIWCI 5304472496
15304509435 Frigidaire Microwave Waveguide Cover
2WCI 5304472476
3WCI 5304464063
45304519335 Frigidaire Microwave Magnetron
55304509469 Frigidaire Microwave Thermostat
65304509449 Frigidaire Microwave Thermostat
75304515184 Frigidaire Microwave Transformer
85304464253 Frigidaire Microwave Capacitor
95304509479 Frigidaire Microwave Diode
105304509452 Frigidaire Microwave Filter
115304509451 Frigidaire Microwave Fuse
125304461116 Frigidaire Microwave Light Bulb
135304464091 Frigidaire Microwave Lamp Holder
145304512501 Frigidaire Power Cord
155304509474 Frigidaire Microwave High Limit Thermostat
165304509475 Frigidaire Microwave Thermostat
17WCI 5304464095
18LATCH HOOK
195304509458 Frigidaire Microwave Lever Assembly
20SWITCH
215304509459 Frigidaire Microwave Micro Switch
22WCI 5304464891
23WCI 5304464101
24WCI 5304464102
255304464103 Frigidaire Microwave Lens
26WCI 5304464104
275304517871 Frigidaire Replacement Grease Filters
285304520948 Frigidaire Microwave Plate
295304472489 Frigidaire Microwave Grille Assembly
29A5304472493 Frigidaire Microwave Grille Assembly
30WCI 5304464256
31WCI 5304464111
32WCI 5304492057
33FILTER, CHARCOAL, 2" X 10"
345304509440 Frigidaire Microwave Motor
355304509622 Frigidaire Microwave Drive Coupling Glass Tray
365304509438 Frigidaire Microwave Support Glass Tray
375304509621 Frigidaire Microwave Glass Tray
38WCI 5304464117
395304509473 Frigidaire Microwave Fan Blade
405304464118 Frigidaire Microwave Motor
41WCI 5304472451
42WCI 5304472452
435304509486 Frigidaire Microwave Vent Damper
445304509485 Frigidaire Microwave Vent Damper
455304491613 Frigidaire Microwave Motor
46WCI 5304472453
47WCI 5304464123
48WCI 5304464124
49WCI 5304472455
505304509436 Frigidaire Microwave Mounting Nut Kit
53WCI 5304472439
55WCI 5304472454
