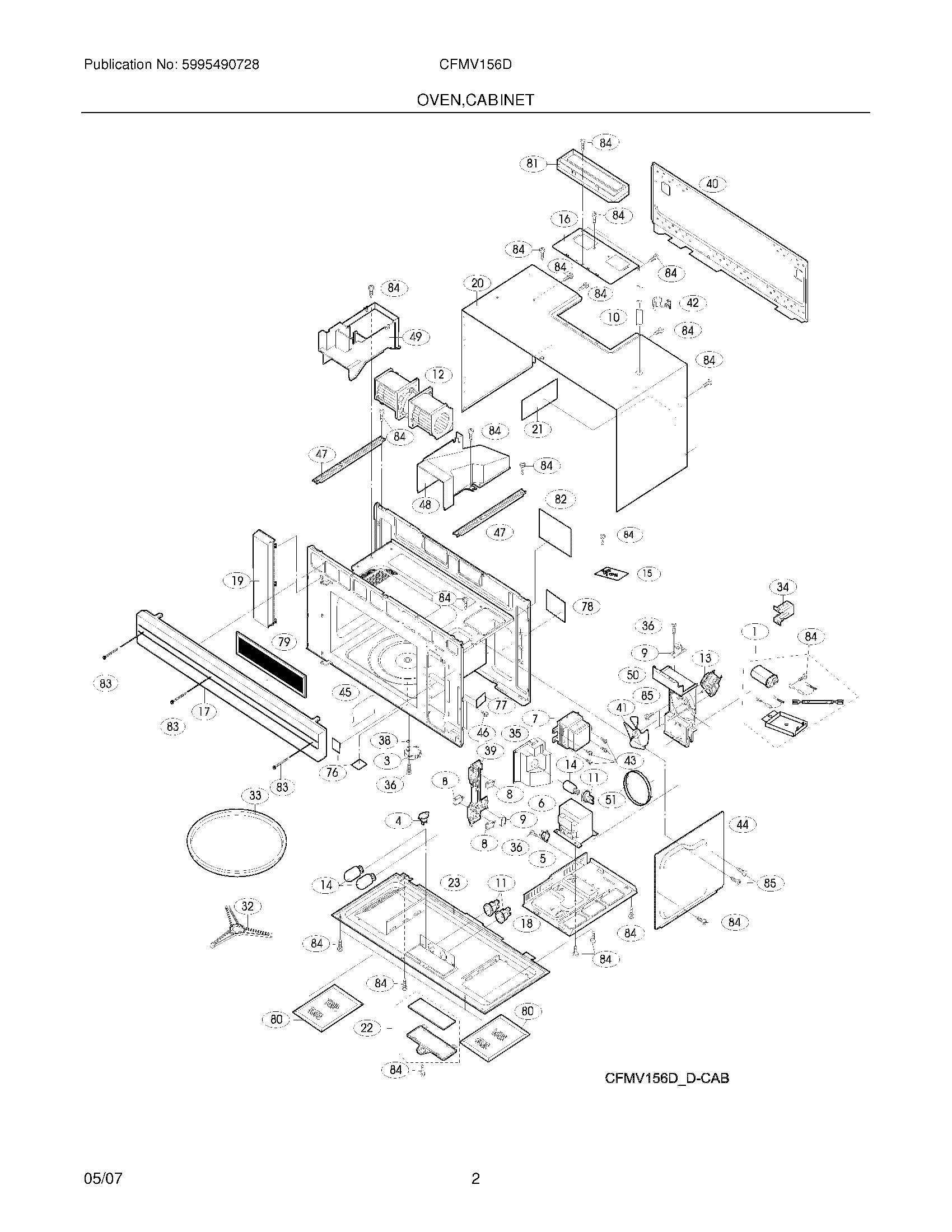

CFMV156DBD 03 – OVEN/CABINET

CFMV156DBD 03 – OVEN/CABINET

Written by

in

CFMV156DBD 03 – OVEN/CABINET

Products

PositionProduct
1HV Assy,incl rectifier ,capacitor,wire
35304440021 Frigidaire Microwave Oven Turntable Drive Motor
4WCI 5304440032
55304440023 Frigidaire Microwave Thermal Cutout
6WCI 5304461585
75304448837 Frigidaire Microwave Magnetron
85304493153 Frigidaire Microwave Door Switch
95304468224 Frigidaire Microwave Oven Relay Micro Switch Assembly
105304440028 Frigidaire Microwave Power Cord
115303319561 Frigidaire Microwave Lamp Socket
12WCI 5304441847
13WCI 5304441848
145304440031 Frigidaire Microwave 20W 125V Medium Light Bulb
155304493151 Frigidaire Microwave Filter
16WCI 5304441849
175304498733 Frigidaire Black Exhaust Grille
18WCI 5304461266
19WCI 5304451942
20WCI 5304441858
21WCI 5304441905
22WCI 5303319573
23WCI 5304451815
325304467717 Frigidaire Microwave Glass Tray Support
33TRAY,TURNTABLE,GLASS
34WCI 5304441873
35WCI 5304441874
365304453725 Frigidaire Screw
38WCI 5304440288
39WCI 5304440289
40WCI 5304461267
41WCI 5304440843
42WCI 5303319605
43WCI 5303319636
44WCI 5304441876
455304440845 Frigidaire Microwave Cover
465303319641 Frigidaire Screw
47WCI 5304441877
48WCI 5304441878
49WCI 5304441879
50WCI 5304461586
51WCI 5304441881
76WCI 5304441900
775304440334 Frigidaire Microwave Label
785304440333 Frigidaire Label
79WCI 5304456425
805303319568 Frigidaire Microwave Grease Filter Aluminum
815304464343 Frigidaire Microwave Assembly Damper
825304465314 Frigidaire Label
835304441378 Frigidaire Microwave Screw
845304451553 Frigidaire Microwave Screw
855304450253 Frigidaire Microwave Screw
