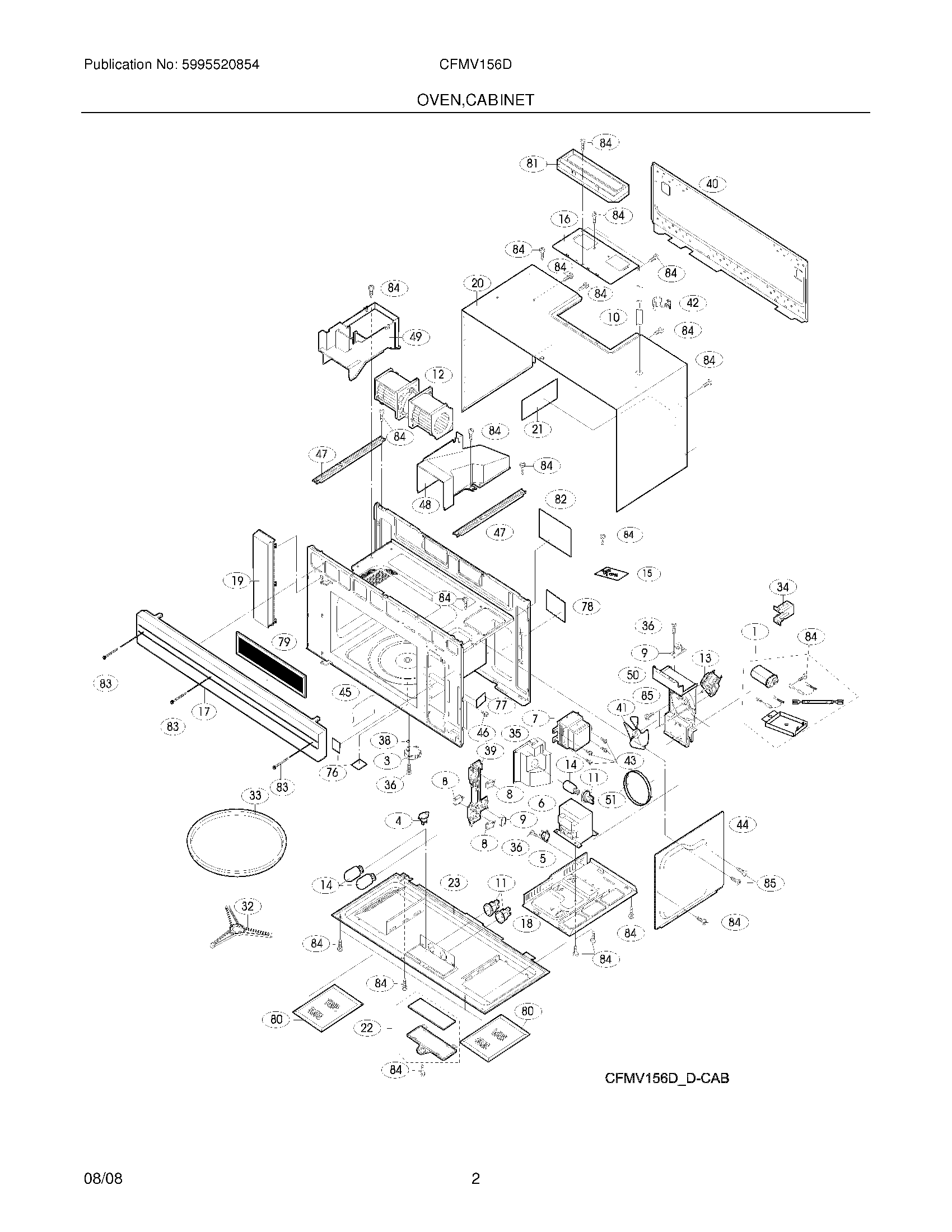

CFMV156DSE 03 – OVEN,CABINET

Products

Position	Product
1	HV Assy,incl rectifier ,capacitor,wire
3	5304440021 Frigidaire Microwave Oven Turntable Drive Motor
4	WCI 5304440032
5	5304440023 Frigidaire Microwave Thermal Cutout
6	WCI 5304461585
7	5304448837 Frigidaire Microwave Magnetron
8	5304493153 Frigidaire Microwave Door Switch
9	5304468224 Frigidaire Microwave Oven Relay Micro Switch Assembly
10	5304440028 Frigidaire Microwave Power Cord
11	5303319561 Frigidaire Microwave Lamp Socket
12	WCI 5304441847
13	WCI 5304441848
14	5304440031 Frigidaire Microwave 20W 125V Medium Light Bulb
15	5304493151 Frigidaire Microwave Filter
16	WCI 5304441849
17	WCI 5304461264
18	WCI 5304461266
19	WCI 5304441857
20	WCI 5304441860
21	WCI 5304441905
22	WCI 5304458209
23	WCI 5304451816
32	5304467717 Frigidaire Microwave Glass Tray Support
33	TRAY,TURNTABLE,GLASS
34	WCI 5304441873
35	WCI 5304441874
36	5304453725 Frigidaire Screw
38	WCI 5304440288
39	WCI 5304440289
40	WCI 5304461267
41	WCI 5304440843
42	WCI 5303319605
43	WCI 5303319636
44	WCI 5304441876
45	5304440845 Frigidaire Microwave Cover
46	5303319641 Frigidaire Screw
47	WCI 5304463149
48	WCI 5304441878
49	WCI 5304441879
50	WCI 5304461586
51	WCI 5304441881
76	WCI 5304441900
77	5304440334 Frigidaire Microwave Label
78	5304440333 Frigidaire Label
79	WCI 5304456425
80	5303319568 Frigidaire Microwave Grease Filter Aluminum
81	5304464343 Frigidaire Microwave Assembly Damper
82	5304465314 Frigidaire Label
83	Screw,vent grille ,white
84	5304451553 Frigidaire Microwave Screw
85	5304450253 Frigidaire Microwave Screw
