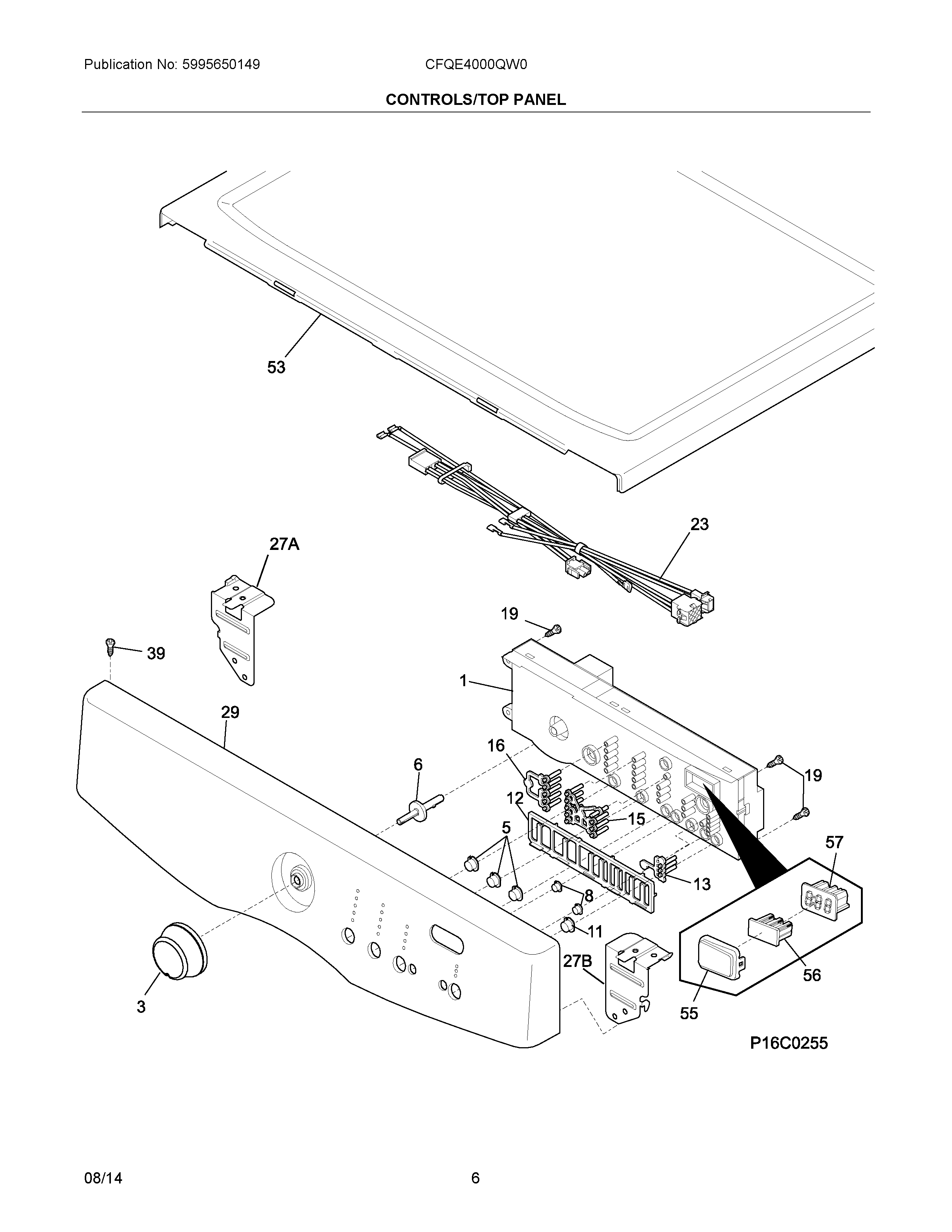

CFQE4000QW0 04 – CONTROLS/TOP PANEL

Products

Position	Product
NIA	134926600 Frigidaire Damper
NI	137557000 Frigidaire Dryer Wiring Harness
NIA	134702100 Frigidaire Terminal Block
1	137070890NH Frigidaire Dryer Main Control Board (No Housing)
3	KNOB, CONTROL, WHITE
5	PUSH BUTTON, ROUND #3
6	WCI 134347700
8	PUSH BUTTON, ROUND #1
11	PUSH BUTTON, ROUND #4
12	WCI 137320500
13	WCI 134557501
15	WCI 134552800
16	WCI 134600000
19	134402900 Frigidaire Screw
23	WCI 134910205
27B	134711000 Frigidaire Bracket
27A	134710900 Frigidaire Bracket Assembly
29	WCI 137345410
39	131205100 Frigidaire Screw
53	137371700 Frigidaire Panel
55	WCI 137320700
56	WCI 134557300
57	WCI 134503300
