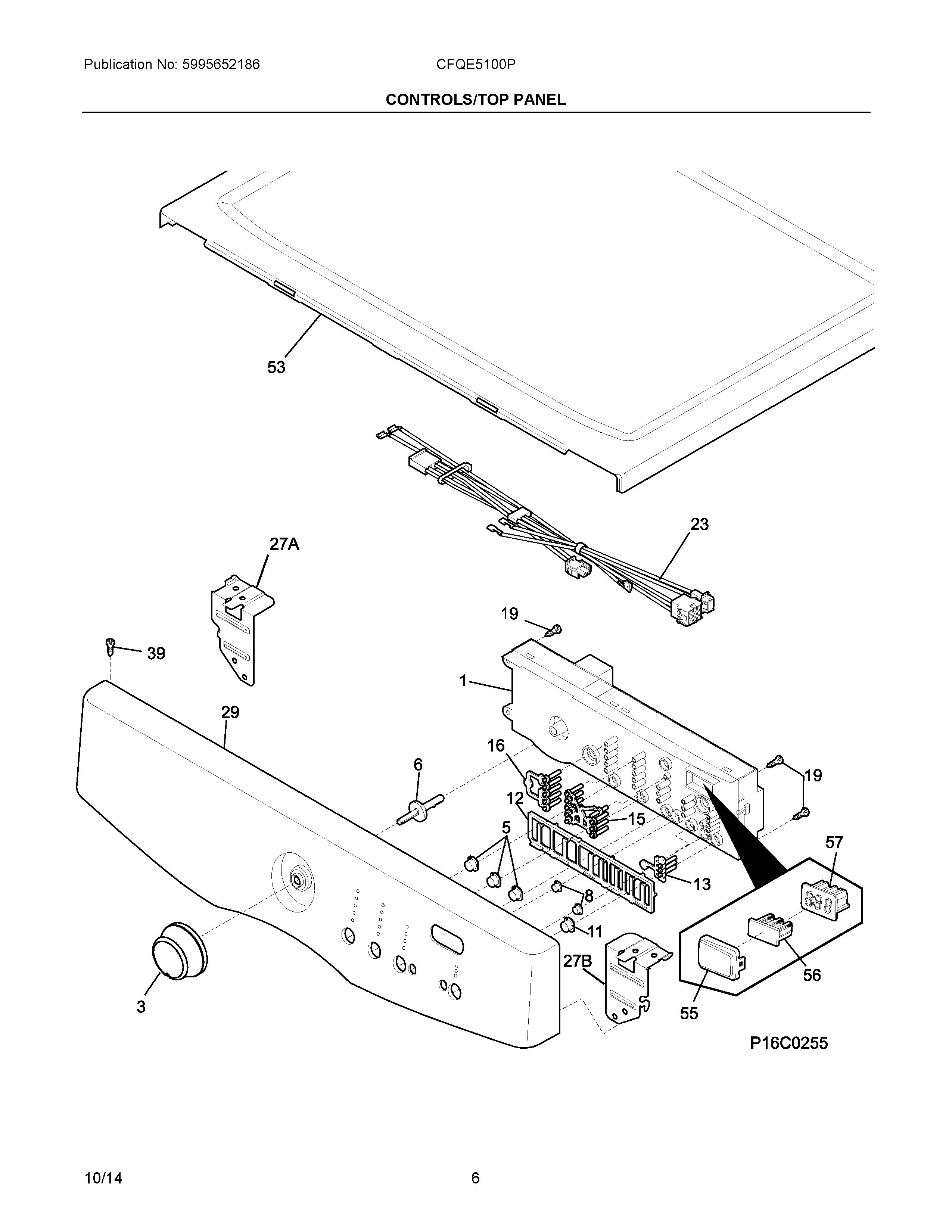

CFQE5100PW2 04 – CONTROLS/TOP PANEL

Products

Position	Product
NIA	134702100 Frigidaire Terminal Block
NIB	137557000 Frigidaire Dryer Wiring Harness
NIA	134926600 Frigidaire Damper
1	137070890NH Frigidaire Dryer Main Control Board (No Housing)
3	WCI 137314625
5	WCI 137314725
6	WCI 134347700
8	WCI 137320825
11	WCI 137314825
12	WCI 137320500
13	WCI 134557501
15	WCI 134552800
16	WCI 134600000
19	134402900 Frigidaire Screw
23	WCI 134910205
27A	134710900 Frigidaire Bracket Assembly
27B	134711000 Frigidaire Bracket
29	WCI 137618510
39	131205100 Frigidaire Screw
53	134638510 Frigidaire Washer Dryer Top Panel
55	WCI 137320700
56	WCI 134557300
57	WCI 134503300
