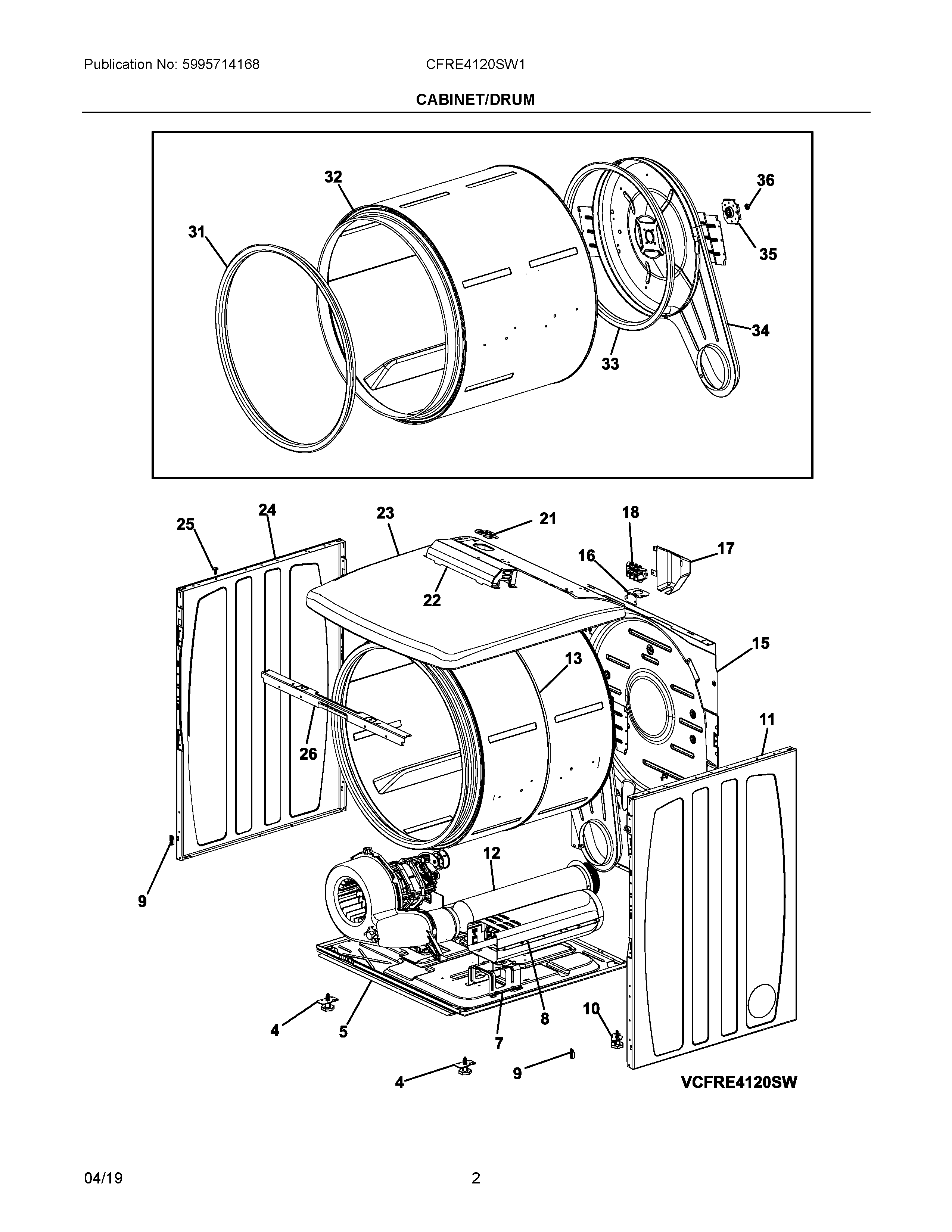

CFRE4120SW1 02 – CABINET/DRUM

Products

Position	Product
NI	POWER CORD
4	5304511372 Frigidaire Foot Assembly
5	BASE ASSEMBLY, CABINET
7	5304511374 Frigidaire Support
8	5304511375 Frigidaire Dryer Heater
9	5304511376 Frigidaire Pin
10	5304511377 Frigidaire Foot Assembly
11	5304511378 Frigidaire Panel
12	VENT PICE ASSY REAR
13	5304511380 Frigidaire Belt
15	WCI 5304521163
16	5304511382 Frigidaire Bracket Assembly
17	5304511383 Frigidaire Cover Assembly
18	5304511384 Frigidaire Harness
21	COVER, HOLE, LINE SPEED
22	5304511386 Frigidaire Cover
23	5304511387 Frigidaire Top Cover
24	5304511388 Frigidaire Panel
25	5304511389 Frigidaire Screw
26	5304511390 Frigidaire Rail Assembly
31	5304511391 Frigidaire Felt Seal
32	5304511392 Frigidaire Drum Assembly
33	5304511393 Frigidaire Felt Seal
34	5304511394 Frigidaire Duct Assembly
35	5304511395 Frigidaire Bearing Housing
36	5304511396 Frigidaire Nut
