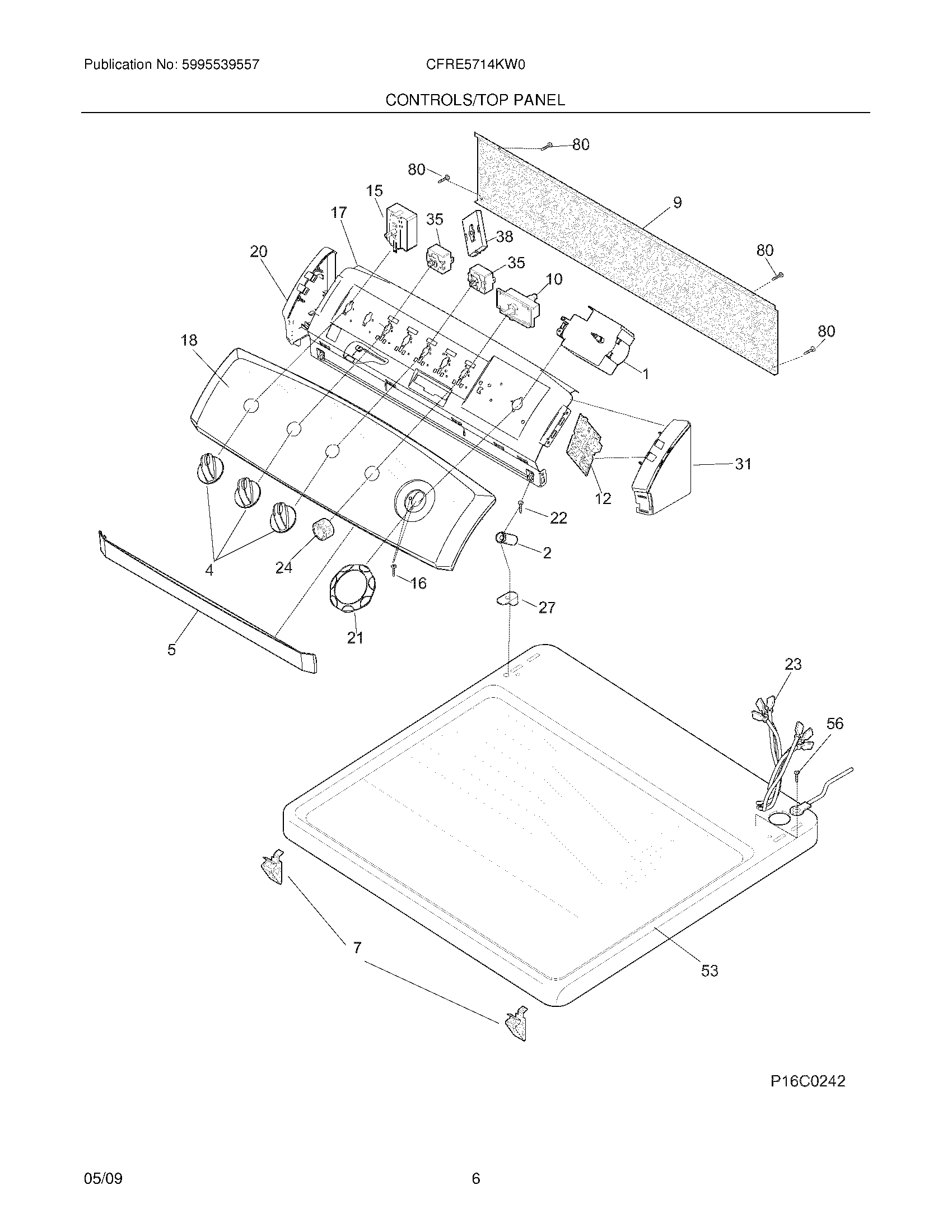

CFRE5714KW0 07 – CONTROLS/TOP PANEL

CFRE5714KW0 07 – CONTROLS/TOP PANEL

Written by

in

CFRE5714KW0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIWCI 137197600
NI134101400 Frigidaire Dryer Kit Terminal Block
1131930600 Frigidaire Dryer Timer P1 "T"
2WCI 134096100
4134844410 Frigidaire Washer Dryer Selector Knob White
5WCI 134019900
73205821 Frigidaire Clip
9WCI 131992900
10131469000 Frigidaire Switch-Push/Start P1
12WCI 134216300
15WCI 134398600
16218359202 Frigidaire Refrigerator Screw
17WCI 131993040
18WCI 137152900
20WCI 134019610
21134886700 Frigidaire Dryer Timer Knob
22WCI 131266330
23Harness-FSD TRHZ elec
24WCI 131111501
27CLIP-CONSOLE MTG
31WCI 134019600
35WCI 134904500
38WCI 131959200
53WCI 134086802
56131243800 Frigidaire Screw
80131168200 Frigidaire Dryer Screw
