CFS16DW6 02 – CHEST FREEZER PARTS

CFS16DW6 02 – CHEST FREEZER PARTS

Written by

in

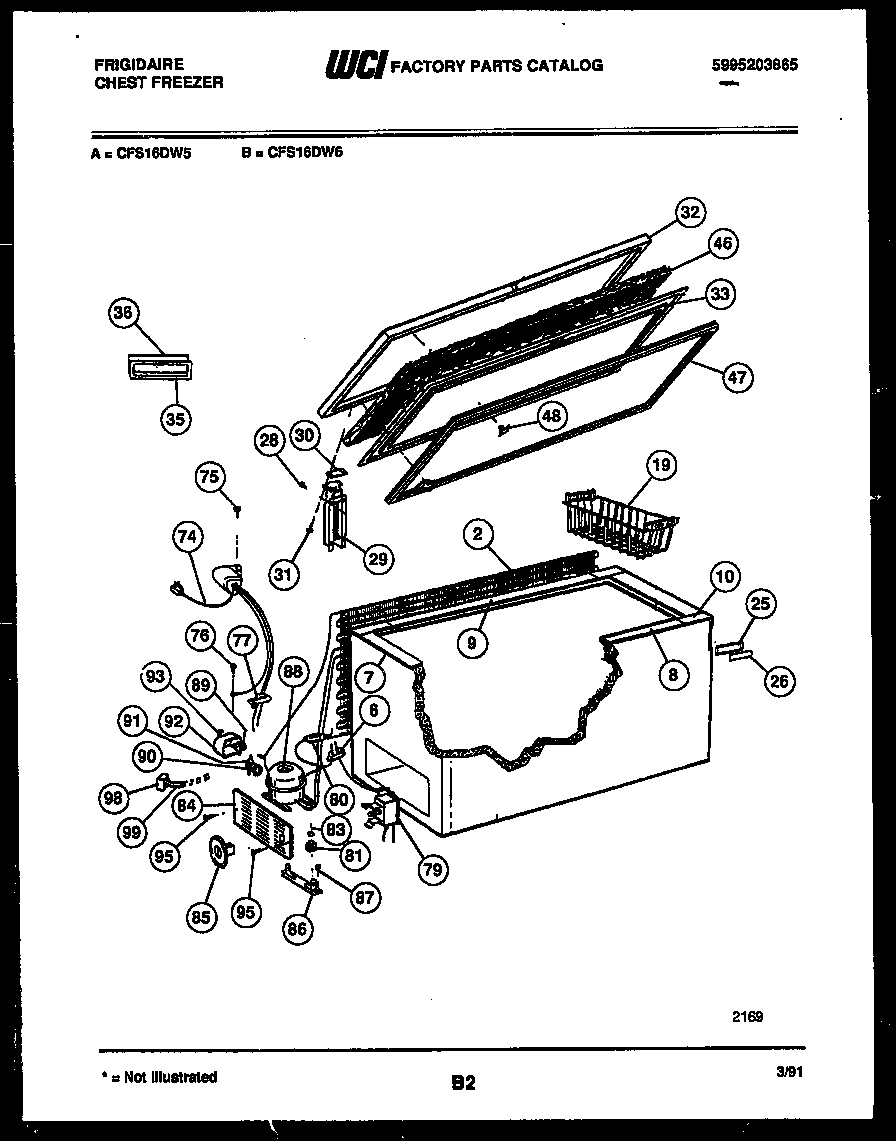

CFS16DW6 02 – CHEST FREEZER PARTS

Products

PositionProduct
25303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
6WCI 06599967
7WCI 5303207301
9BREAKER REAR
10WCI 5303207302
19WCI 5303204811
25WCI 08037409
26WCI 08037949
26ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
28SCREW HINGE BASE
29297321900 Frigidaire Refrigerator Hinge Assembly
30WCI 08037853
31WCI 5309950602
32WCI 08017010
33WCI 08017011
35WCI 08037955
36GASKET, WHITE
46INSULATION
47WCI 3017645
485303212828 Frigidaire Refrigerator Primary Clip
74WCI 5303212629
76216036601 Frigidaire Refrigerator Screw
775303212614 Frigidaire Refrigerator Clip
795304496560 Frigidaire Refrigerator Cold Control Kit
805303305677 Frigidaire Replacement Filter Dryer Filters
81218513300 Frigidaire Refrigerator Compressor Mount Grommet
83CLIP (3)
84WCI 5303212647
85WCI 5303270910
86SUPPORT (2)
87SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88COMPRESSOR WITH ELECTRICALS
89WCI 5303017753
90WCI 5308037789
91CLIP
935303006412 Frigidaire Refrigerator Cover Mounting Strap
95216858001 Frigidaire Refrigerator Screw
985304464438 Frigidaire Compressor Run Capacitor
99WCI 5303091425
