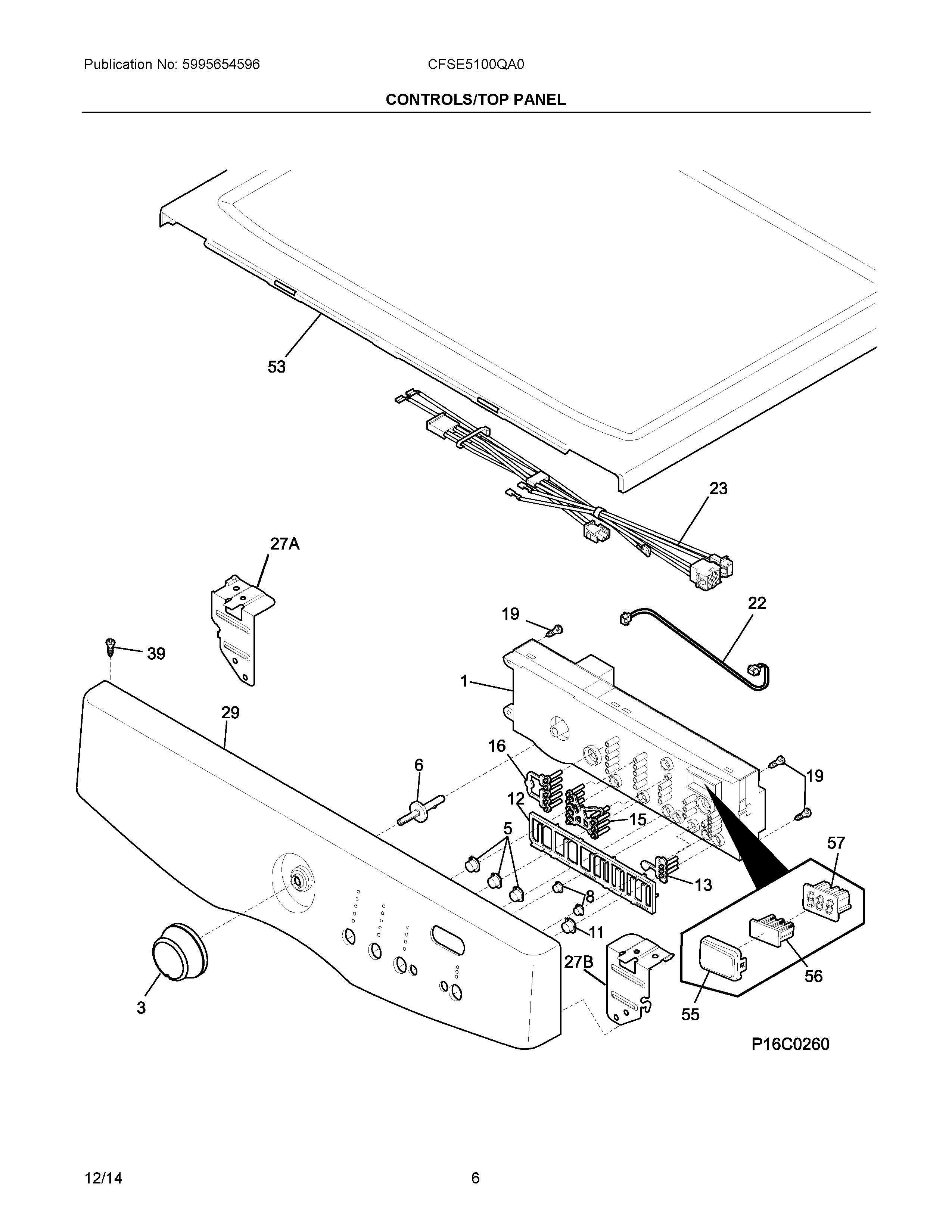

CFSE5100QA0 04 – CONTROLS/TOP PANEL

Products

Position	Product
NIA	137150200 Frigidaire Terminal
NIA	134926600 Frigidaire Damper
1	CONTROL BOARD, PRINTED CIRCUIT, WITH HOUSING
3	WCI 137314625
5	WCI 137314725
6	WCI 134347700
8	WCI 137320825
11	WCI 137314825
12	WCI 137320500
13	WCI 134557501
15	WCI 134552800
16	WCI 134600000
19	134402900 Frigidaire Screw
22	HARNESS, USER INTERFACE
23	137576800 Frigidaire Harness
27B	134711000 Frigidaire Bracket
27A	134710900 Frigidaire Bracket Assembly
29	WCI 137504811
39	131205100 Frigidaire Screw
53	134638525 Frigidaire Panel
55	WCI 137320700
56	WCI 134557300
57	WCI 134503300
