CFSE5115PA1 04 – CONTROLS/TOP PANEL
Written by
in

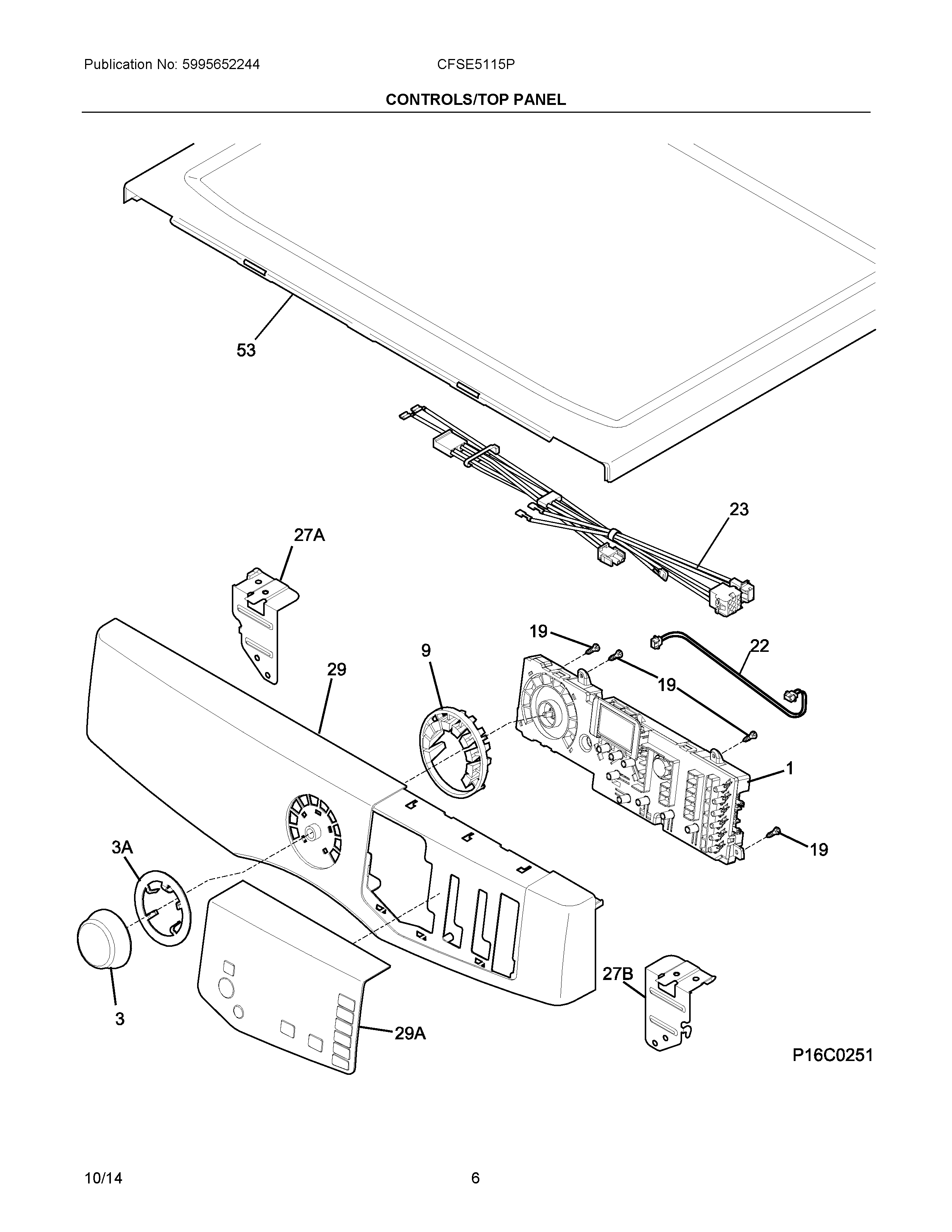

CFSE5115PA1 04 – CONTROLS/TOP PANEL
Products
Position
Product
NI
134926600 Frigidaire Damper
NIA
137150200 Frigidaire Terminal
1
WCI 809160905
3
WCI 137286500
3A
WCI 137296900
9
WCI 137286600
19
134402900 Frigidaire Screw
22
134790700 Frigidaire Harness
23
137576800 Frigidaire Harness
27B
134711000 Frigidaire Bracket
27A
134710900 Frigidaire Bracket Assembly
29A
137505255 Frigidaire Panel Assembly
29
WCI 137505356
53
134638525 Frigidaire Panel
←
