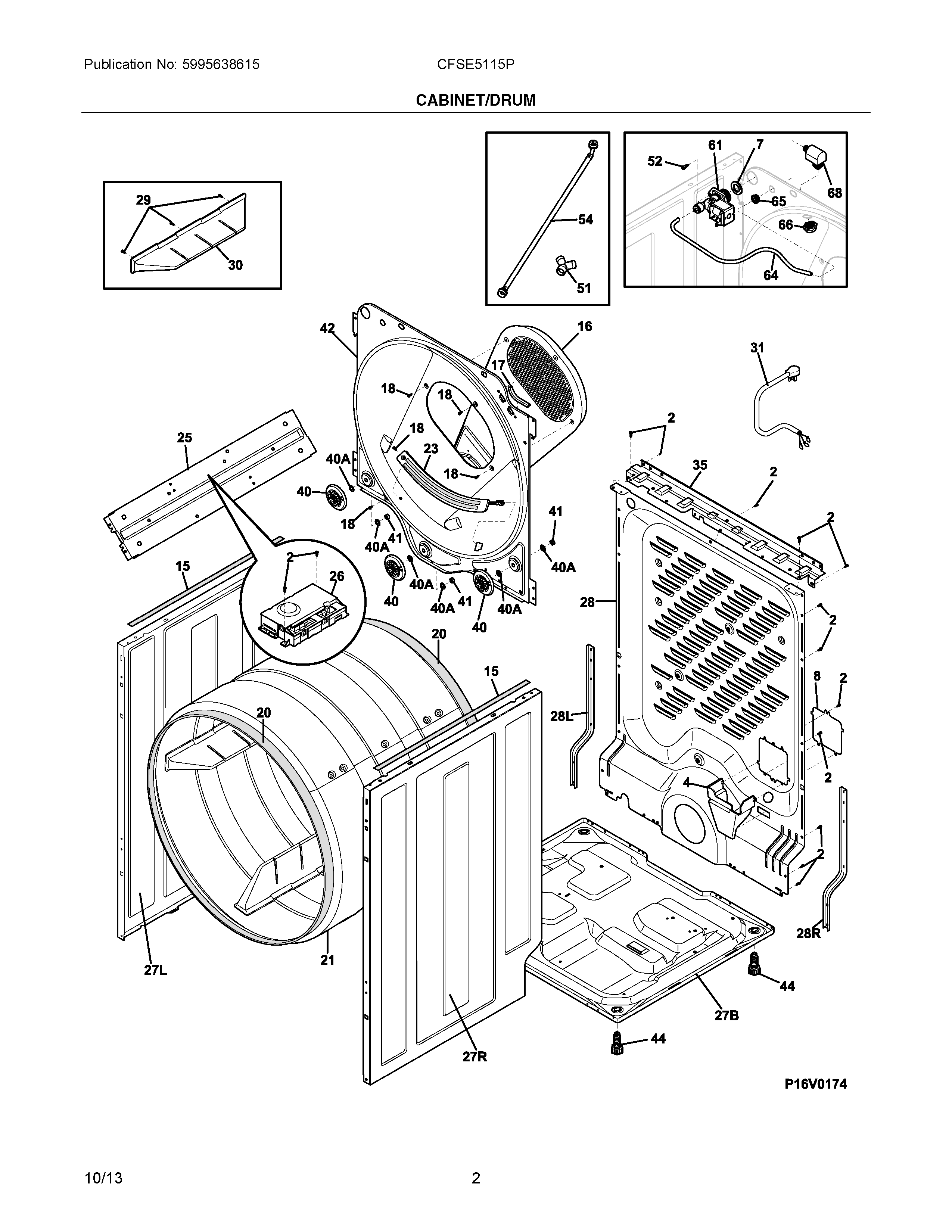

CFSE5115PW0 02 – CABINET/DRUM

Products

Position	Product
NIA	134930800 Frigidaire Harness
NIA	Strain relief,240 ,pwr cord
NI	WCI 137240400
NIA	134716200 Frigidaire Retainer
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
4	WCI 134792200
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
8	137578600 Frigidaire Cover
15	137031800 Frigidaire Cushion
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	137565300 Frigidaire Seal
21	WCI 137623110
23	134786100 Frigidaire Moisture Sensor
25	WCI 134912100
26	809160802 Frigidaire Control Assembly
27L	WCI 134690325
27R	WCI 134690425
27B	134690203 Frigidaire Base
28	WCI 137560313
28R	WCI 137066800
28L	WCI 137029900
29	131205100 Frigidaire Screw
30	WCI 137623210
31	5304505408 Frigidaire Cord
33	SAFETY THERMSTAT
34	131243700 Frigidaire Screw
35	WCI 134959000
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
42	WCI 137556618
44	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
51	5304500709 Frigidaire Y Hose Adapter Fitting
52	131202300 Frigidaire Screw
54	5304503984 Frigidaire Kit Assembly
61	LOW PROFILE MIST VALVE
65	137017200 Frigidaire Grommet
66	5304529773 Frigidaire Nozzle Assembly
67	WCI 137017400
