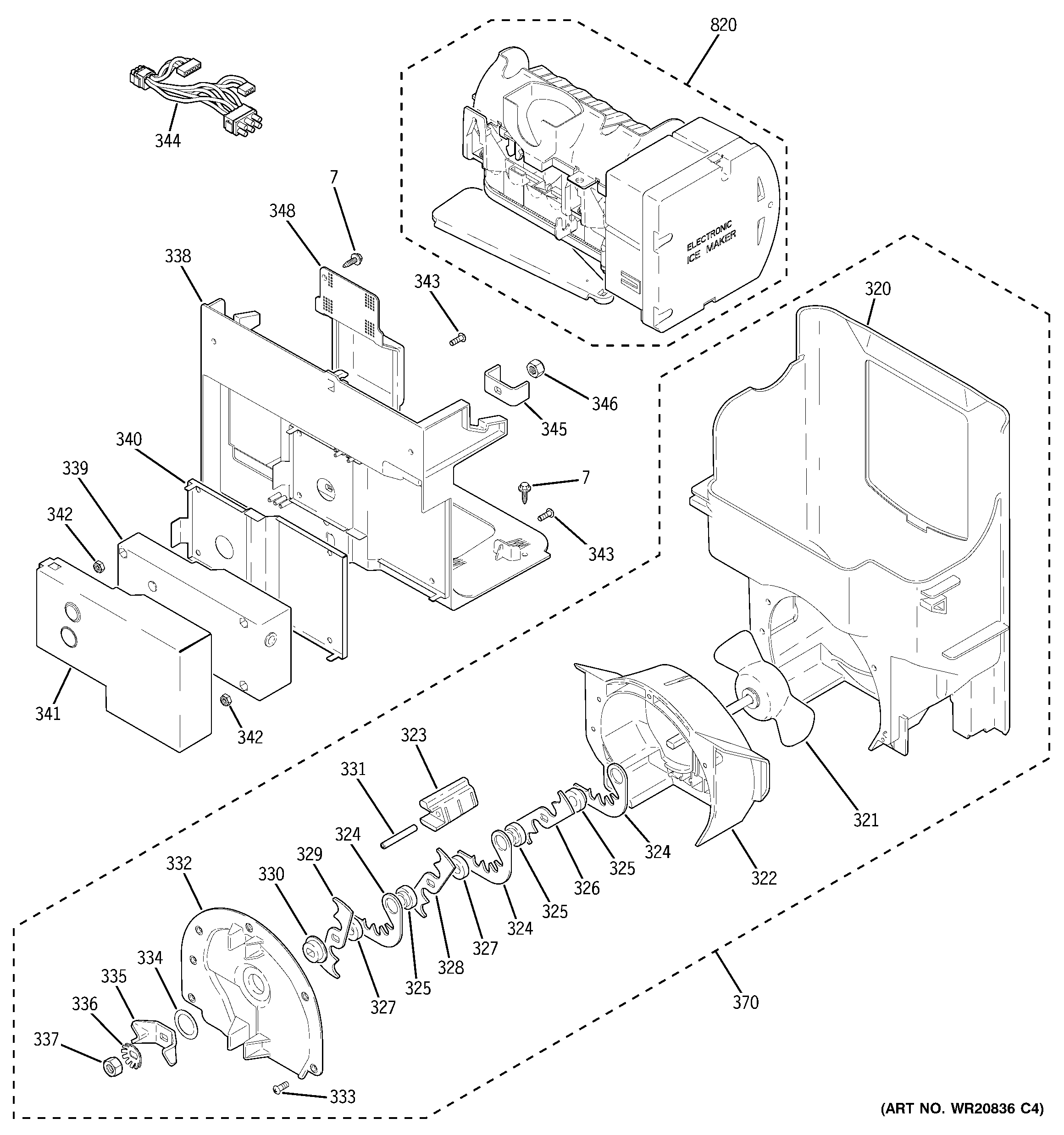

CFSP5RKBDSS ICE MAKER & DISPENSER

CFSP5RKBDSS ICE MAKER & DISPENSER

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
320BUCKET ICE
321AGITATOR ASM
322HOUSING CRUSHER
323HOLDER STATIONARY BLADE
324BLADE STATIONARY
325WR2X4138 GE Refrigerator Spacer
326MOVING BLADE CRUSHER
327GEN WR02X4139
328MOVING BLADE CRUSHER
329MOVING BLADE CRUSHER
330SPACER ACETAL
331GEN WR02X4141
332COVER CRUSHER
333SCR 10-16 PL PNP 1/2 SS
334WASHER COUPLING
335COUPLING BUCKET
336TAB WASHER
337NUT 3/8-24 HEX SS
338AUGER MOTOR COVER
339MOTOR AUGER DC
340FRONT COVER
341REAR COVER
342NUT HEX SS
343WR01X10821 GE Screw 8-32 M Hex 1/2 S
344HARNESS MOTOR AND RELAY
345FORK
346LOCK NUT 5/16-18 HEX SS
348COVER ACCESS
370ICE BUCKET ASM
820WR30X28693 GE Refrigerator Icemaker
