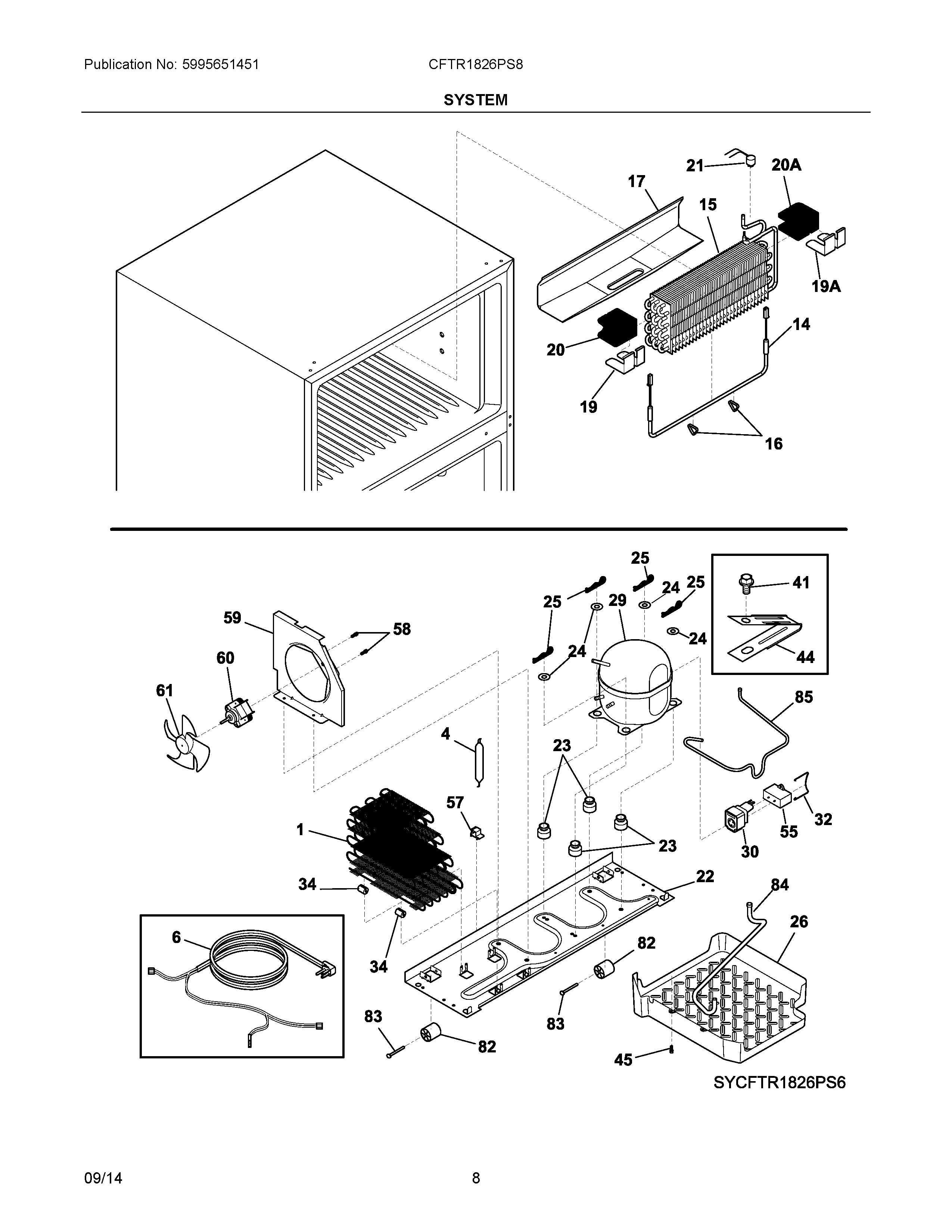

CFTR1826PS8 05 – SYSTEM

CFTR1826PS8 05 – SYSTEM

Written by

in

CFTR1826PS8 05 – SYSTEM

Products

PositionProduct
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NIWCI 5303918222
NIA5304455650 Frigidaire Refrigerator Screw
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA240388701 Frigidaire Refrigerator Wiring Harness
NI240396801 Frigidaire Refrigerator Tube Clamp
NIA218252201 Frigidaire Refrigerator Screw
1241785404 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
65304521786 Frigidaire Refrigerator Wiring Harness
14242044008 Frigidaire Defrost Heater
15242214411 Frigidaire Refrigerator Evaporator
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
19242320401 Frigidaire Refrigerator Shield
205304527429 Frigidaire Refrigerator Block
20A5304527430 Frigidaire Refrigerator Block
215303918634 Frigidaire Kit Thermostat
22241665504 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241920605 Frigidaire Refrigerator Defrost Pan
295304507765 Frigidaire Refrigerator Compressor Kit
30WCI 297259503
32241715901 Frigidaire Strap-Cover
34240405201 Frigidaire Refrigerator Grommet
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
45241500305 Frigidaire Refrigerator Screw
55WCI 216985010
57240542601 Frigidaire Clip-WIRING Harness
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59CONDENSER FAN MOTOR KIT
60242018404 Frigidaire Refrigerator Condenser Fan Motor
61240524102 Frigidaire Refrigerator Condenser Fan Blade
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85WCI 241844602
