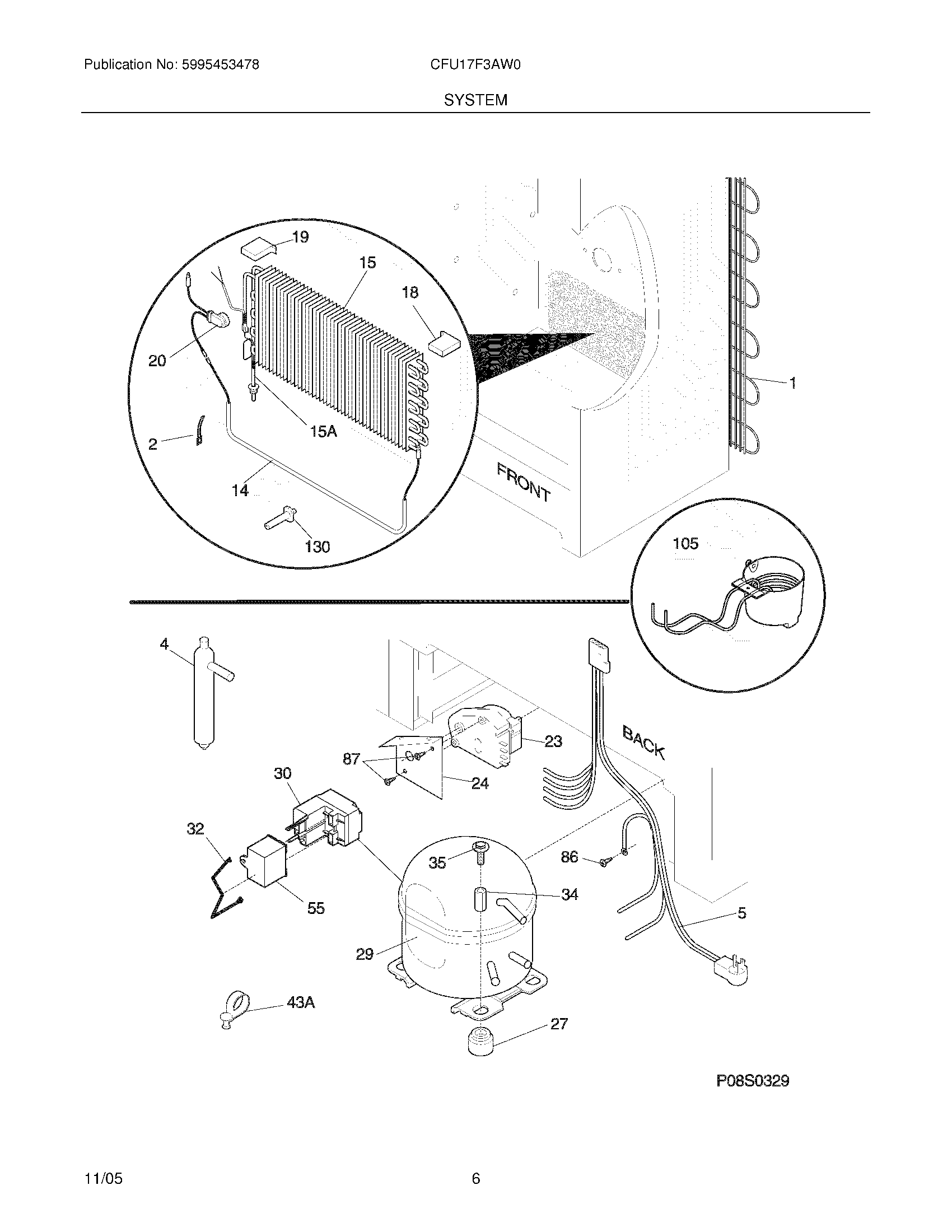

CFU17F3AW0 07 – SYSTEM

CFU17F3AW0 07 – SYSTEM

Written by

in

CFU17F3AW0 07 – SYSTEM

Products

PositionProduct
NIWCI 216502500
NISPACER, COMPRESSOR
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216821700
14216730700 Frigidaire Refrigerator Defrost Heater
15297414901 Frigidaire Refrigerator Evaporator
15A216783200 Frigidaire Refrigerator P1-Heat Exchanger
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
27216498900 Frigidaire Refrigerator Grommet
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
305304491583 Frigidaire Freezer Compressor Start Relay & Overload Controller Kit
32218740800 Frigidaire Refrigerator Clamp
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
555304464438 Frigidaire Compressor Run Capacitor
86216036601 Frigidaire Refrigerator Screw
87SCREW
105216999900 Frigidaire Refrigerator Cup-Drain
130297244700 Frigidaire Refrigerator Support
