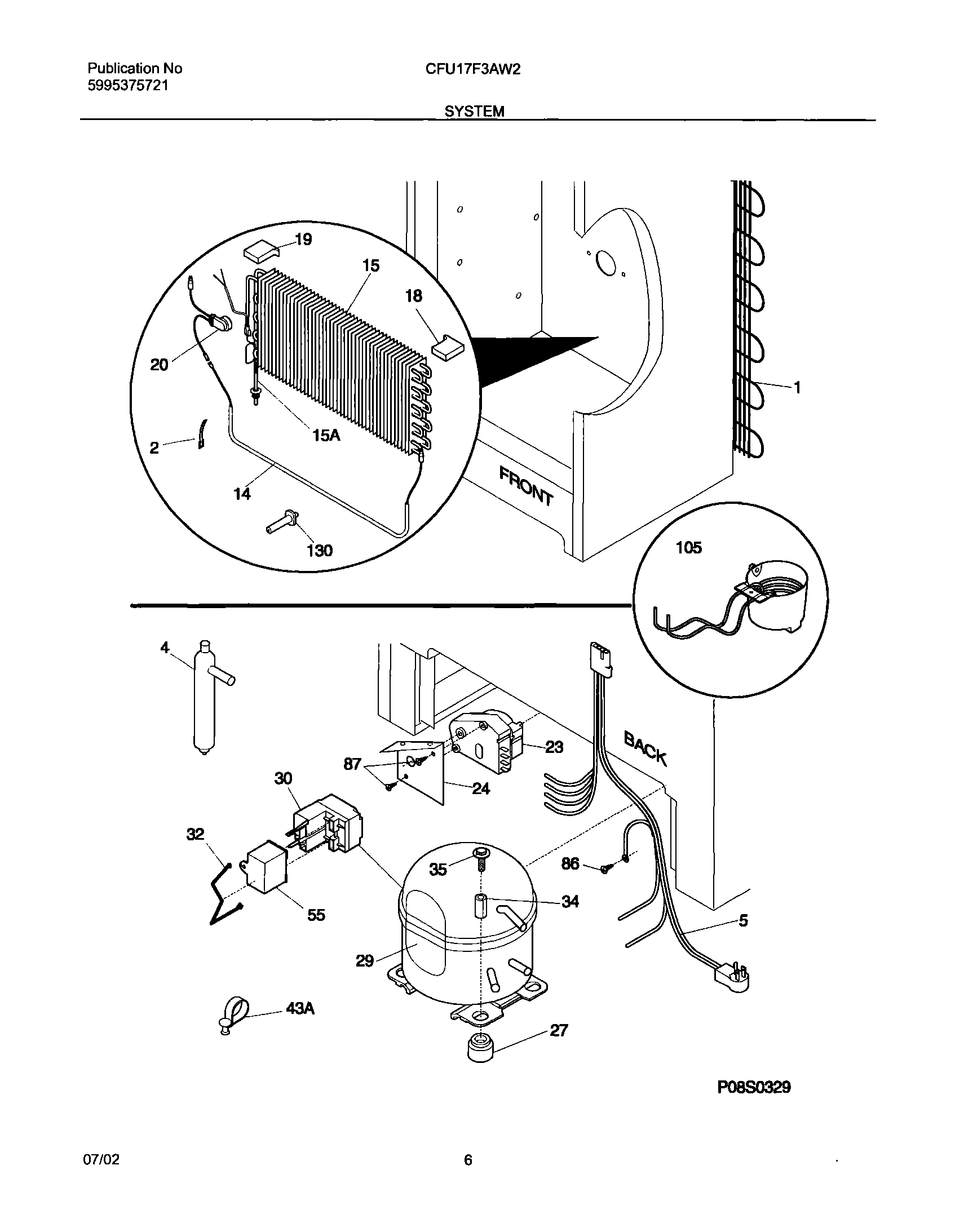

CFU17F3AW2 07 – SYSTEM

CFU17F3AW2 07 – SYSTEM

Written by

in

CFU17F3AW2 07 – SYSTEM

Products

PositionProduct
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216821700
14216730700 Frigidaire Refrigerator Defrost Heater
15297414901 Frigidaire Refrigerator Evaporator
15A216783200 Frigidaire Refrigerator P1-Heat Exchanger
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
27216498900 Frigidaire Refrigerator Grommet
295304511982 Frigidaire Refrigerator Compressor Kit
305304491584 Frigidaire Overload Start Relay
32218740800 Frigidaire Refrigerator Clamp
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
55218909912 Frigidaire Capacitor Run
86216036601 Frigidaire Refrigerator Screw
87SCREW
105216999900 Frigidaire Refrigerator Cup-Drain
130297244700 Frigidaire Refrigerator Support
