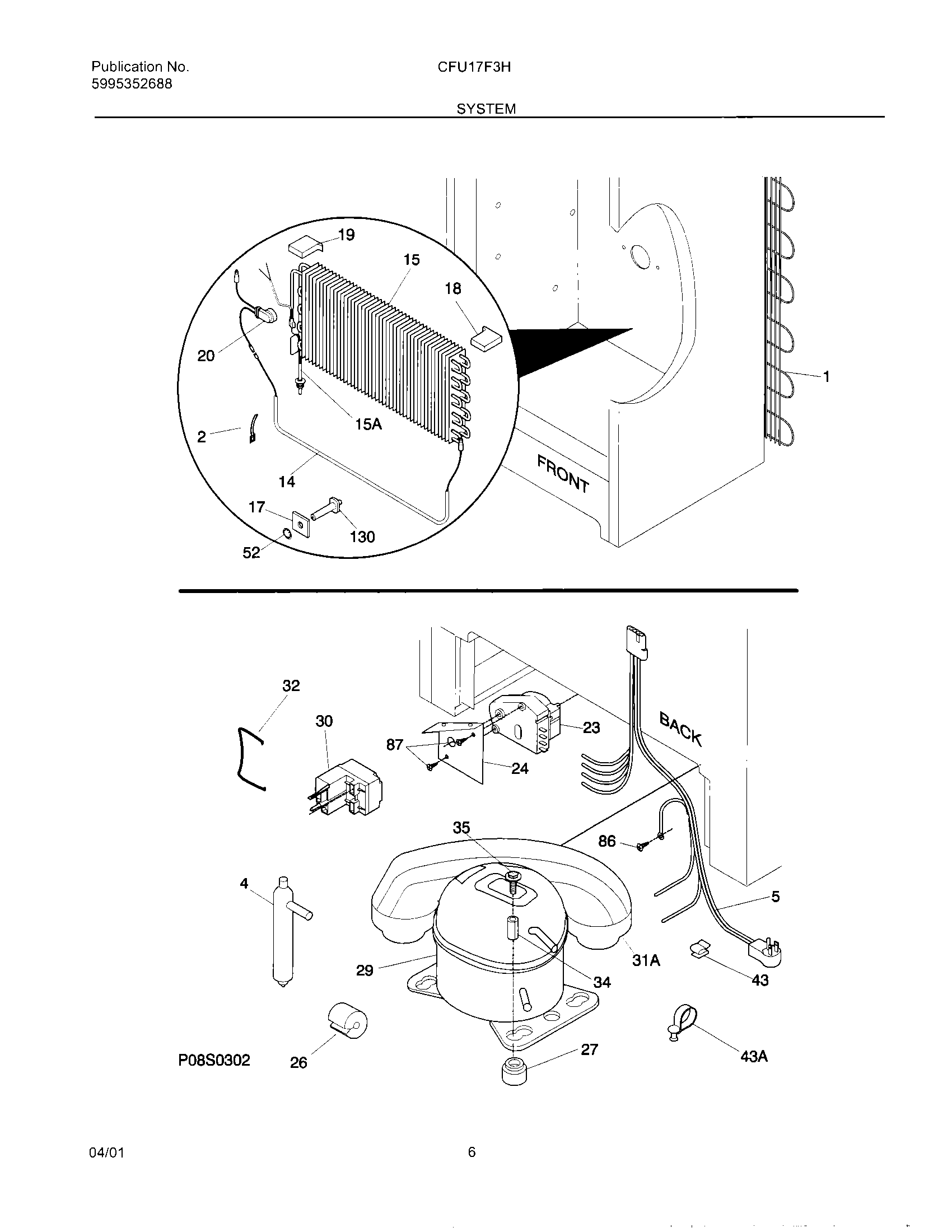

CFU17F3HW3 07 – SYSTEM

CFU17F3HW3 07 – SYSTEM

Written by

in

CFU17F3HW3 07 – SYSTEM

Products

PositionProduct
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216761900
14216730700 Frigidaire Refrigerator Defrost Heater
15297414901 Frigidaire Refrigerator Evaporator
15WCI 216751000
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
22TUBE
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
25WCI 216022800
26WCI 216511900
27216498900 Frigidaire Refrigerator Grommet
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30WCI 216649308
32WCI 216731900
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43WCI 09950610
43297315800 Frigidaire Refrigerator Clip
86216036601 Frigidaire Refrigerator Screw
87SCREW
130WCI 216730400
