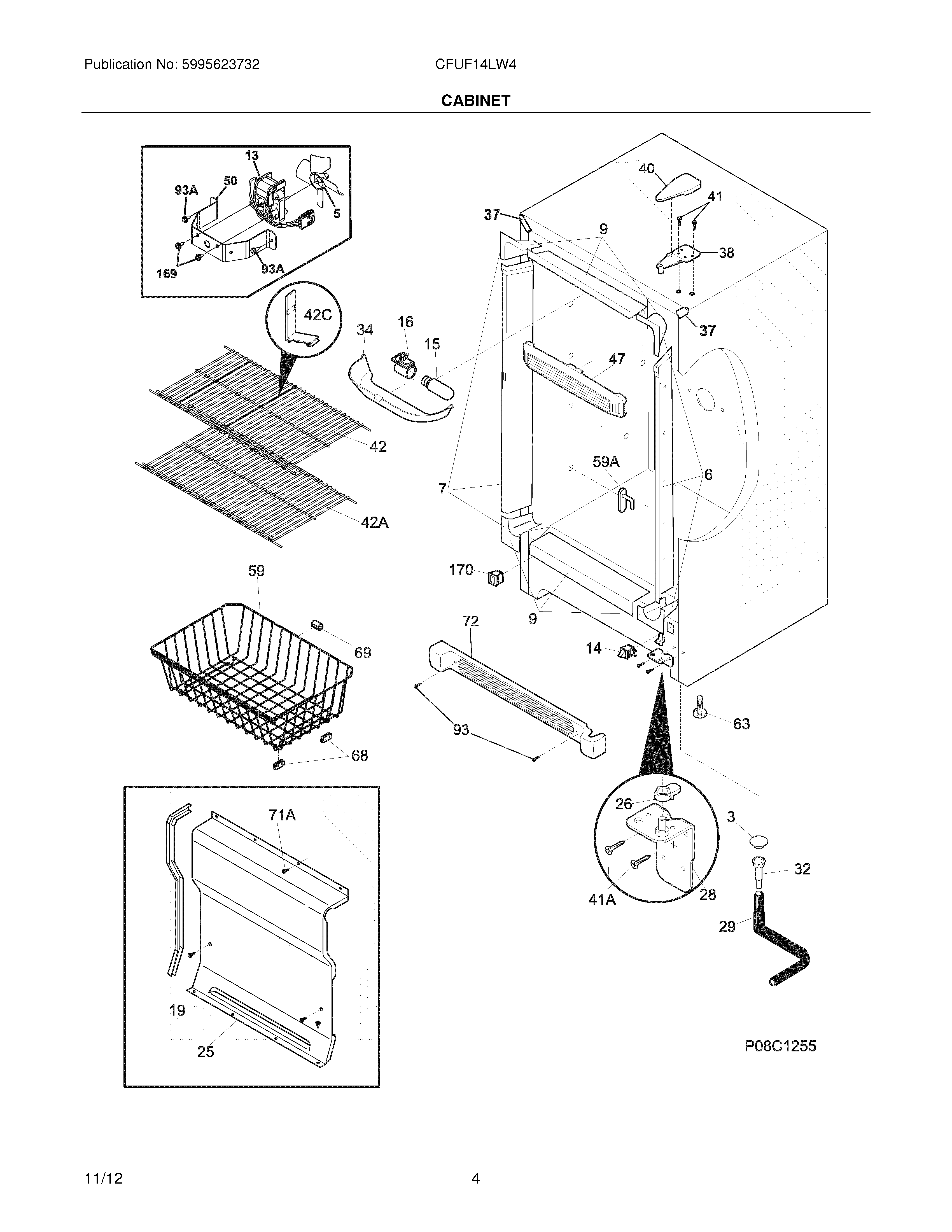

CFUF14LW4 05 – CABINET

CFUF14LW4 05 – CABINET

Written by

in

CFUF14LW4 05 – CABINET

Products

Position	Product
NI	WCI 5303313703
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	297001704 Frigidaire Refrigerator Insulation
NI	WCI 216795321
NI	Bracket,LH leg levelor
NI	Bracket,RH leg levelor
NI	WCI 297241400
NI	297246001 Frigidaire Service Data Sheet
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 297200300
7	WCI 297200500
9	WCI 297200200
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
19	WCI 216204900
25	WCI 297098651
26	WCI 216503300
28	297283900 Frigidaire Refrigerator Hinge-Bottom
29	5304510365 Frigidaire Refrigerator Drain Hose
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
41A	WCI 297236201
42A	Shelf,14.50 X 23.88 ,white ,(2)
42	WCI 297119801
42C	Bookend,wire shelf
47	297192903 Frigidaire Refrigerator Baffle
50	216394050 Frigidaire Refrigerator Bracket
59A	STOP-BASKET, (2)
59	WCI 297225100
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
68	08009560 Frigidaire 0 Basket Glide
69	5305878546 Frigidaire Refrigerator Bumper-Basket
71A	Screw,8-18AB x.470 QX
72	WCI 297199000
93A	241853202 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
