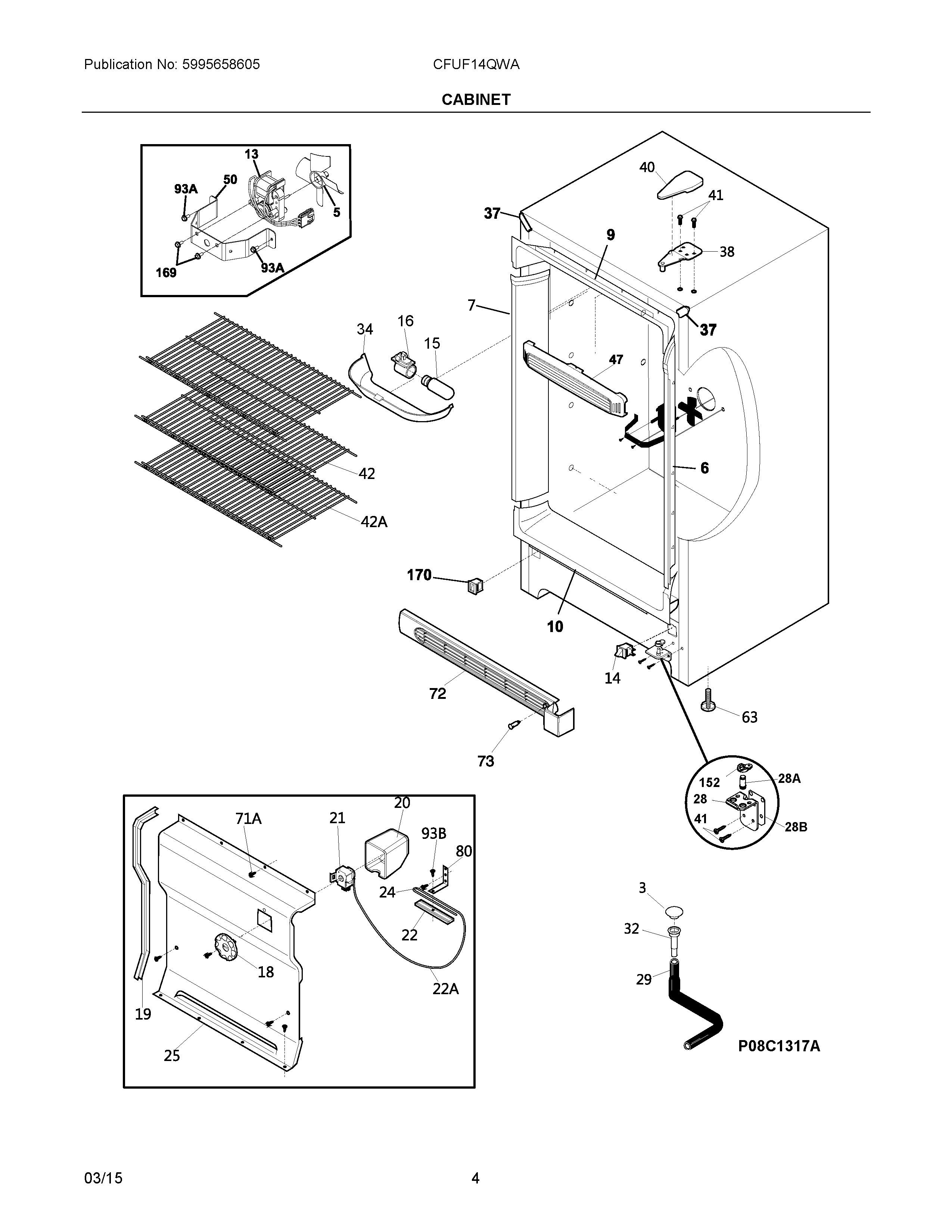

CFUF14QWA 03 – CABINET

CFUF14QWA 03 – CABINET

Written by

in

CFUF14QWA 03 – CABINET

Products

PositionProduct
NI216858001 Frigidaire Refrigerator Screw
NIBBracket,RH leg levelor
NI297001704 Frigidaire Refrigerator Insulation
NI216502400 Frigidaire Refrigerator Grommet Unit
NI216337701 Frigidaire Refrigerator Screw
NIABracket,LH leg levelor
NIWCI 5303313703
NIWCI 5304495445
3216503100 Frigidaire Refrigerator Screen-Drain
5FAN BLADE, EVAPORATOR
6297435603 Frigidaire Breaker
7297435602 Frigidaire Breaker
9BREAKER, TOP
10297381502 Frigidaire BREAKER
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20216967201 Frigidaire Refrigerator Temp Control Cover
215304513033 Frigidaire Refrigerator Temperature Control
22CLAMP, CAP TUBE, COLD CONTROL
22ATUBE
24Screw,type A ,10-24 x 3/8
25WCI 297442700
26297415900 Frigidaire Door Closer Ramp
28B5304497244 Frigidaire Refrigerator Shim
28A297438300 Frigidaire Refrigerator Pin
28297416301 Frigidaire Refrigerator Hinge
295304510365 Frigidaire Refrigerator Drain Hose
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
37297273904 Frigidaire Refrigerator Corner Cabinet Trim
38297283803 Frigidaire Freezer Upper Door Hinge
40297164400 Frigidaire Refrigerator Hinge Cover
41240578902 Frigidaire Screw Mounting Hinge
42WCI 297441904
42A5304528978 Frigidaire Refrigerator Shelf
47297192903 Frigidaire Refrigerator Baffle
50WCI 08013207
595304497655 Frigidaire Basket
59ASTOP-BASKET, (2)
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72297387806 Frigidaire Refrigerator Toe Grill with Signal Light
735304495394 Frigidaire Refrigerator Light Signal
80WCI 06594601
93A241853202 Frigidaire Refrigerator Screw
93B216036601 Frigidaire Refrigerator Screw
1525304511026 Frigidaire Refrigerator Freezer Hinge Bearing
169216912401 Frigidaire Refrigerator Screw
170297280400 Frigidaire Refrigerator Valve
