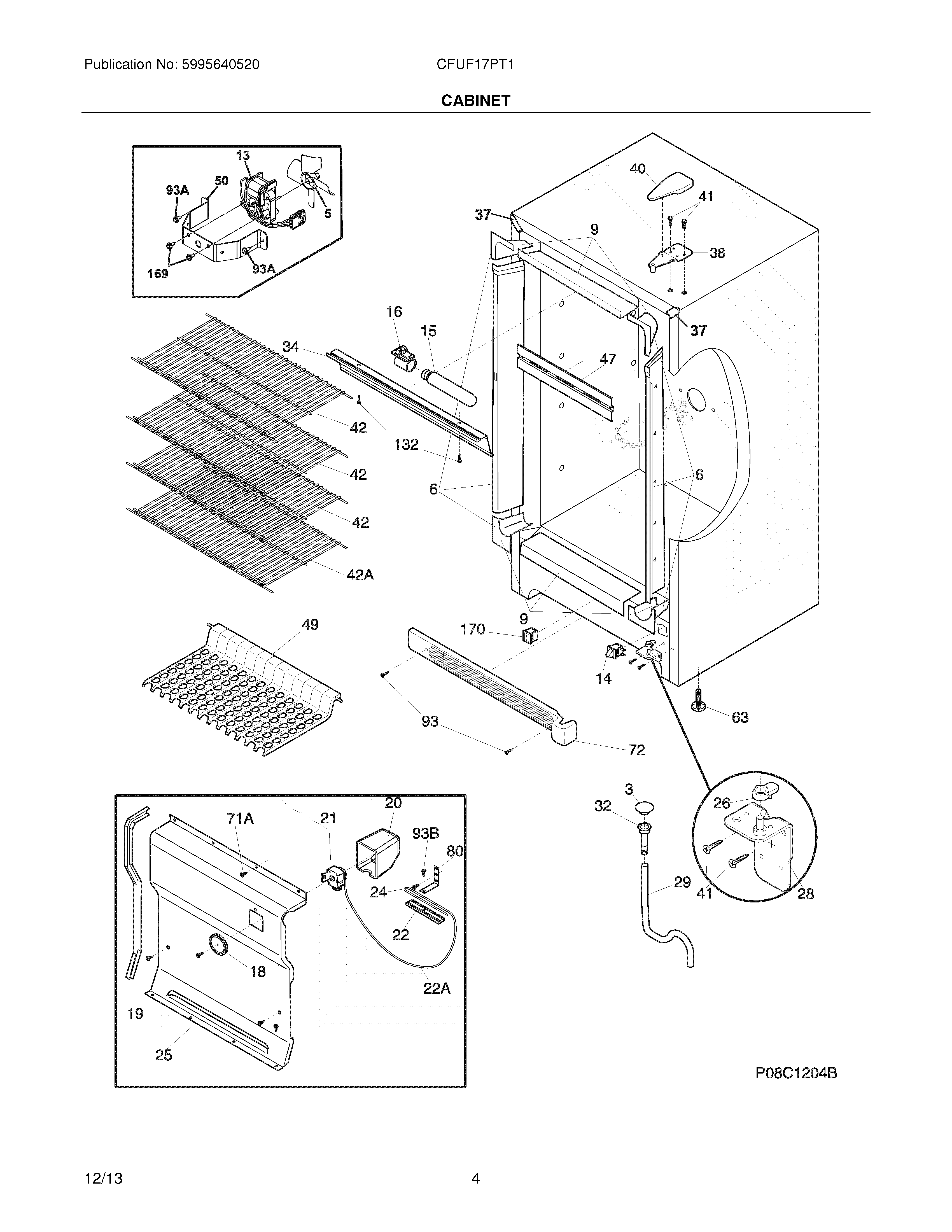

CFUF17PT1 05 – CABINET

CFUF17PT1 05 – CABINET

Written by

in

CFUF17PT1 05 – CABINET

Products

PositionProduct
NIBracket,LH leg levelor
NIBracket,RH leg levelor
NI297001704 Frigidaire Refrigerator Insulation
NI216502400 Frigidaire Refrigerator Grommet Unit
NIWCI 5303313703
3216503100 Frigidaire Refrigerator Screen-Drain
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 297200600
7WCI 297200800
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
15241552802 Frigidaire Refrigerator Light Bulb
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20216967201 Frigidaire Refrigerator Temp Control Cover
215304513033 Frigidaire Refrigerator Temperature Control
22CLAMP, CAP TUBE, COLD CONTROL
22ATUBE
24Screw,type A ,10-24 x 3/8
25WCI 297099250
26WCI 216503300
28297283900 Frigidaire Refrigerator Hinge-Bottom
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38297283803 Frigidaire Freezer Upper Door Hinge
40WCI 297164405
41240578902 Frigidaire Screw Mounting Hinge
42WCI 297367400
42AWCI 297119501
47297192903 Frigidaire Refrigerator Baffle
49216937701 Frigidaire Refrigerator Trivet
50216394050 Frigidaire Refrigerator Bracket
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72297036907 Frigidaire Refrigerator Grille Kickplate
80WCI 06594601
93216858001 Frigidaire Refrigerator Screw
93A241853202 Frigidaire Refrigerator Screw
93B216036601 Frigidaire Refrigerator Screw
132WCI 5304460601
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
