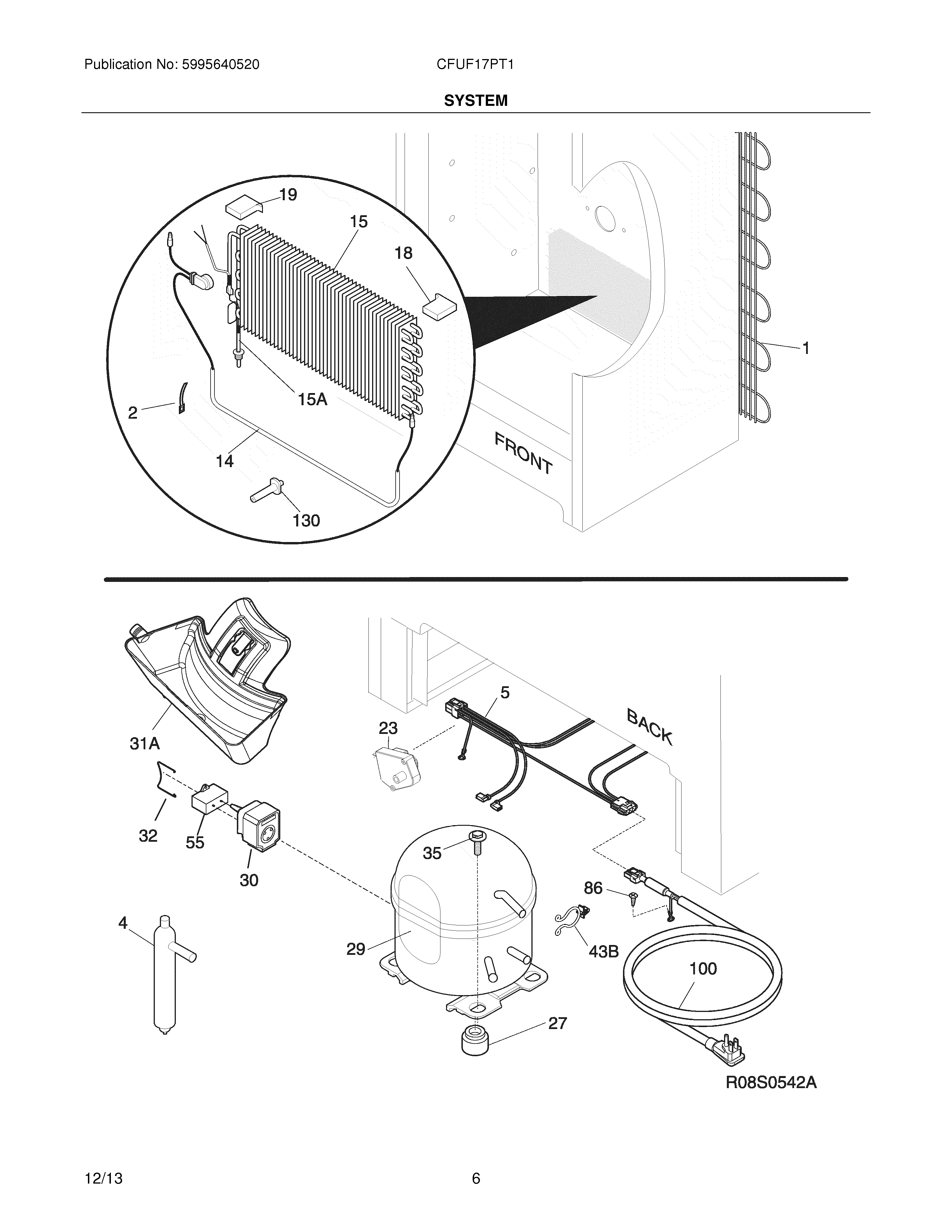

CFUF17PT1 07 – SYSTEM

Products

Position	Product
NI	WCI 216502500
NI	241853202 Frigidaire Refrigerator Screw
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI	297014702 Frigidaire Refrigerator Suction Line Plug
1	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	297170200 Frigidaire Refrigerator Harness-Main
14	5304496284 Frigidaire Defrost Heater
15	297414901 Frigidaire Refrigerator Evaporator
15A	297217900 Frigidaire Refrigerator Suction Tube
18	297078701 Frigidaire Refrigerator Insulator-Evaporator
19	297078801 Frigidaire Refrigerator Evaporator Insulator
23	5304518034 Frigidaire Refrigerator Defrost Timer
27	216337701 Frigidaire Refrigerator Screw
29	5304537072 Frigidaire Compressor with Clip, Em2Z70Hlt
30	297259515 Frigidaire Refrigerator Start Relay
31A	297217002 Frigidaire Refrigerator Drain Pan
32	216954300 Frigidaire Refrigerator Clip
35	297368501 Frigidaire Bolt
43B	297315800 Frigidaire Refrigerator Clip
55	297286803 Frigidaire Refrigerator Run Capacitor
86	216036601 Frigidaire Refrigerator Screw
100	297366805 Frigidaire Refrigerator Cord
130	297244700 Frigidaire Refrigerator Support
