CFUF21CDMB0 05 – CABINET

CFUF21CDMB0 05 – CABINET

Written by

in

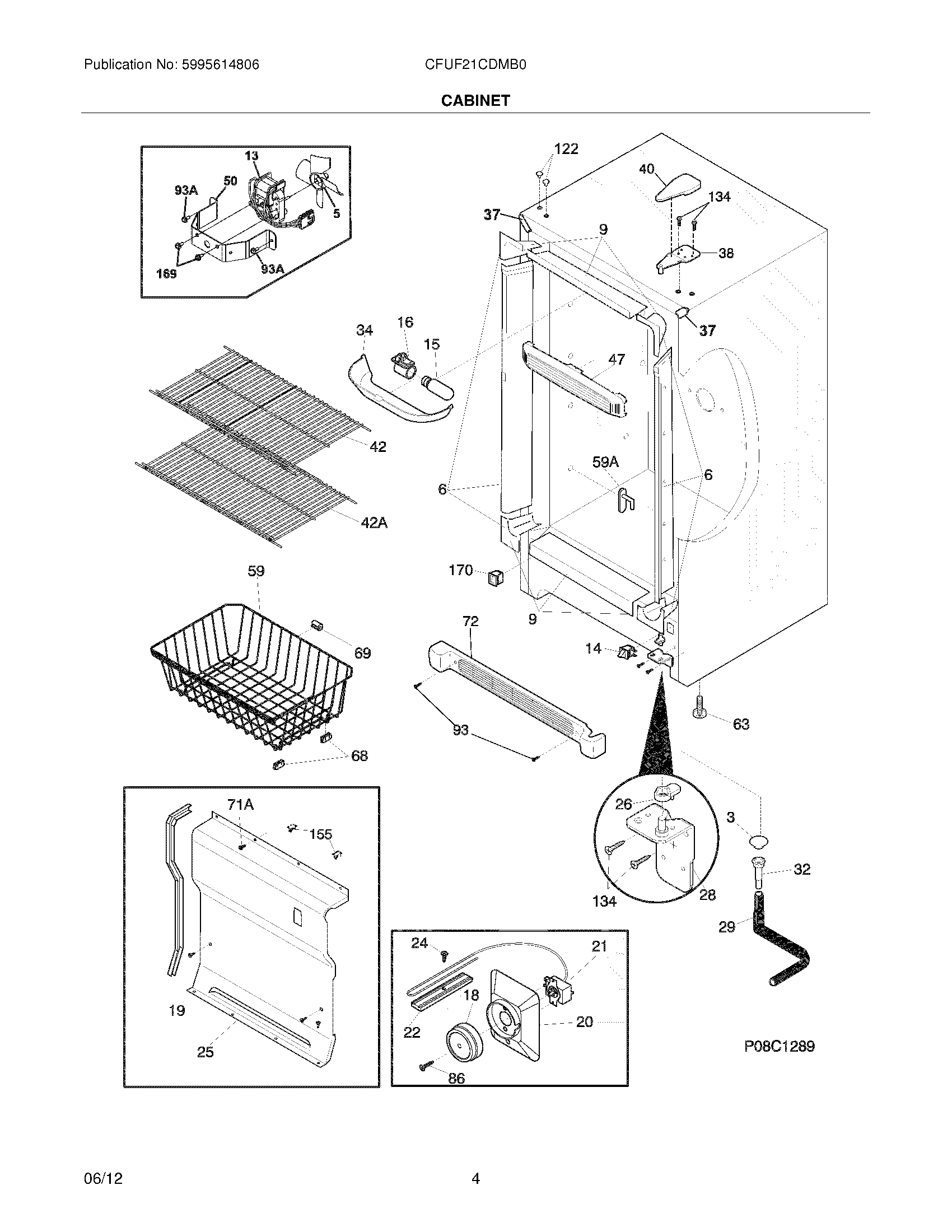

CFUF21CDMB0 05 – CABINET

Products

PositionProduct
NIWCI 216327800
NI216502400 Frigidaire Refrigerator Grommet Unit
NI297001704 Frigidaire Refrigerator Insulation
NIBracket,LH leg levelor
NIBracket,RH leg levelor
NIWCI 216982604
3216503100 Frigidaire Refrigerator Screen-Drain
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20216967201 Frigidaire Refrigerator Temp Control Cover
215304513033 Frigidaire Refrigerator Temperature Control
22CLAMP, CAP TUBE, COLD CONTROL
24Screw,type A ,10-24 x 3/8
25WCI 297099250
26WCI 216503300
28297283900 Frigidaire Refrigerator Hinge-Bottom
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
37297273905 Frigidaire Cabinet Corner Trim
38297283803 Frigidaire Freezer Upper Door Hinge
40COVER-UPPER HINGE, BLACK
42AShelf,14.50×27.88 ,(3)
42WCI 216458500
47297192903 Frigidaire Refrigerator Baffle
50216394050 Frigidaire Refrigerator Bracket
59ASTOP-BASKET, (2)
595304497657 Frigidaire Refrigerator Basket
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
6808009560 Frigidaire 0 Basket Glide
695305878546 Frigidaire Refrigerator Bumper-Basket
71AScrew,8-18AB x.470 QX
72297036907 Frigidaire Refrigerator Grille Kickplate
86216036601 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
93A241853202 Frigidaire Refrigerator Screw
122240494003 Frigidaire Refrigerator Plug-Button
134240578902 Frigidaire Screw Mounting Hinge
155WCI 5303313703
169216912401 Frigidaire Refrigerator Screw
170VALVE, BREATHER, BLACK
